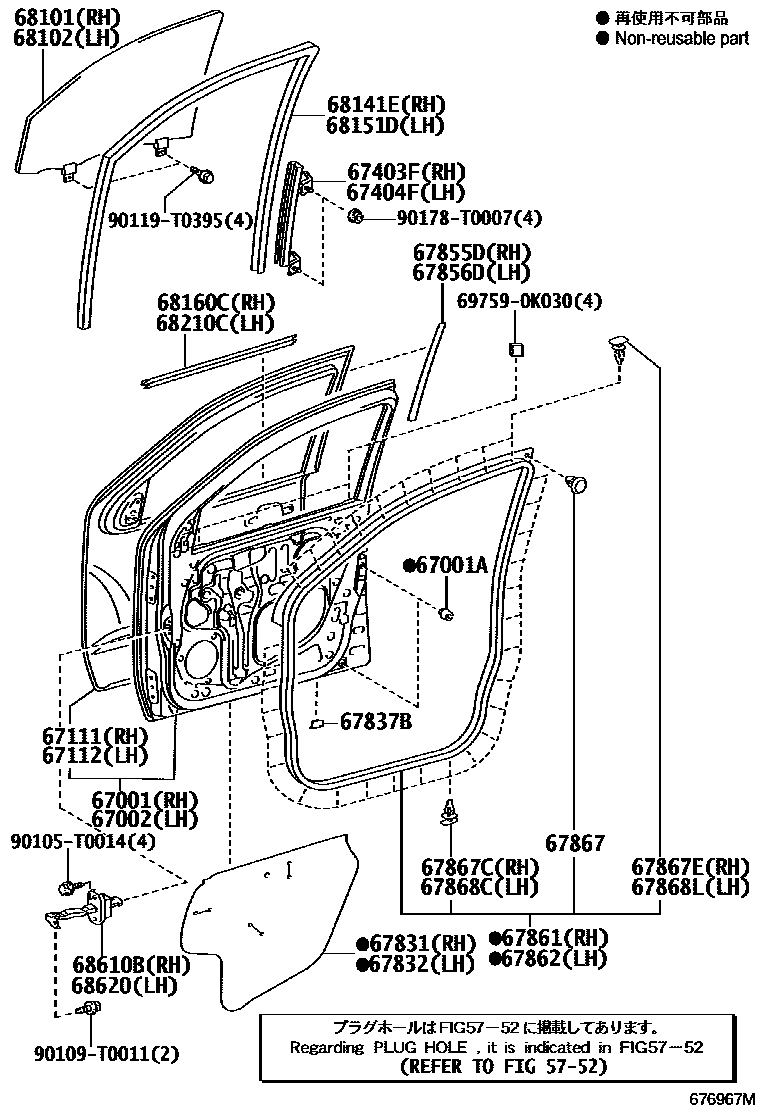

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
NO.1:REFER ILLUST.
NO.1 & NO.2
NO.1 & NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
67855DPROTECTOR, FRONT DOOR PANEL, RH
67856DPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
(L)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH
(L)
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
(L)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-0K030
90105T0014
main90105-T0014
90109T0011
main90109-T0011
90119T0395
main90119-T0395
90178T0007
main90178-T0007
32 parts on this diagram · 3 diagrams in section
