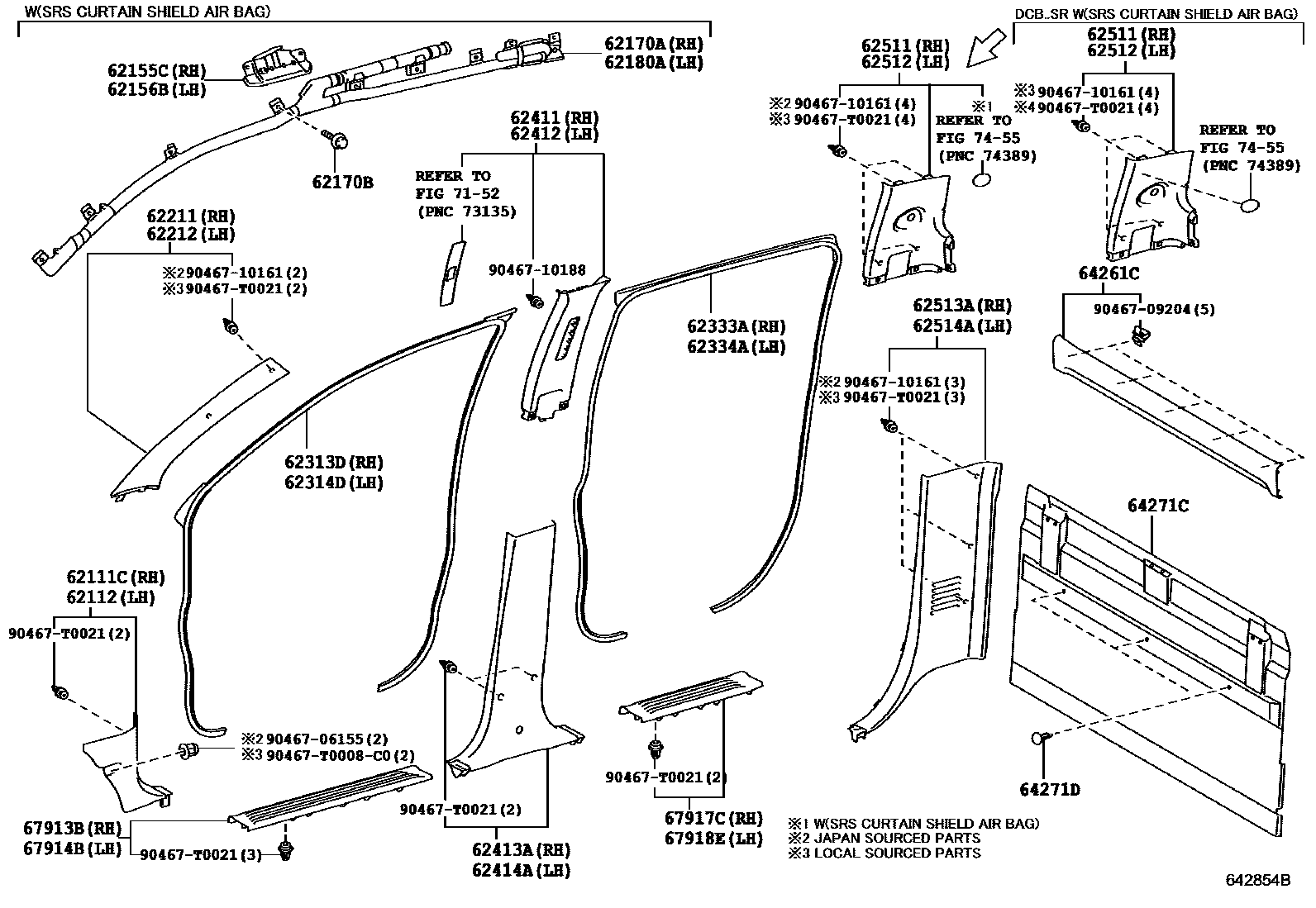

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K090-B1iKUN2#,35..THDCB,THSCB,XTR201107-201504

MD.GRAY,TRIM1#

sub62111-0K090

main62111-0K090-C0iKUN2#,35..THDCB,THSCB,XTR201308-201504

BLACK,TRIM2#

sub62111-0K090

main62111-0K100-B1iKUN2#,35..DCB,SCB201108-201310

MD.GRAY,TRIM1#

main62111-0K100-C0iKUN2#,35..DCB,SCB201310-201512

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K090-B1iKUN2#,35..THDCB,THSCB,XTR201107-201504

MD.GRAY,TRIM1#

sub62112-0K090

main62112-0K090-C0iKUN2#,35..THDCB,THSCB,XTR201308-201504

BLACK,TRIM2#

sub62112-0K090

main62112-0K100-B1iKUN2#,35..DCB,SCB201108-201310

MD.GRAY,TRIM1#

main62112-0K100-C0iKUN2#,35..DCB,SCB201310-201512

BLACK,TRIM2#

62155CBRACKET, CURTAIN SHIELD AIRBAG, RH

main62155-0K030iKUN26..SR201107-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

62156BBRACKET, CURTAIN SHIELD AIRBAG, LH

main62156-0K010iKUN26..SR201107-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0K010iKUN26..DCB..SR201108-201303

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

sub62170-0K011

main62170-0K011iKUN25,35..DCB..SR201304-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62170-0K030iKUN26..THDCB201107-201307

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

sub62170-0K031

main62170-0K031iKUN26..THDCB201308-201504

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

62170BBOLT, W/WASHER

main90119-06869iKUN26..THDCB201411-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),(J)

main90119-06869iKUN26..THDCB201107-201412

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main90119-06869iKUN26..THDCB201411-201512

(J)

main90119-T0425iKUN25,35..THDCB..SR201411-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),(L)

main90119-T0425iKUN26..THDCB201411-201512

(L)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0K010iKUN25,35..DCB..SR201108-201303

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

sub62180-0K011

main62180-0K011iKUN25,35..DCB..SR201304-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62180-0K030iKUN26..THDCB201107-201307

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

sub62180-0K031

main62180-0K031iKUN26..THDCB201308-201504

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

62211GARNISH, FRONT PILLAR, RH

main62211-0K020-B0iKUN25,35..THDCB,THSCB,XTR201107-201504

LT.GRAY,TRIM1#,2#

sub62211-0K020

main62211-0K040-B0iKUN26..DLX;KUN25,35..DCB,SCB201108-201512

LT.GRAY,TRIM1#,2#

main62211-0K080-B0iKUN25,35..(DCB,THDCB)..SR201107-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),LT.GRAY,TRIM1#,2#

main62211-0K080-B0iKUN26..SR201107-201512

LT.GRAY,TRIM1#,2#

62212GARNISH, FRONT PILLAR, LH

main62212-0K020-B0iKUN25,35..THDCB,THSCB,XTR201107-201504

LT.GRAY,TRIM1#,2#

sub62212-0K020

main62212-0K040-B0iKUN26..DLX;KUN25,35..DCB,SCB201108-201512

LT.GRAY,TRIM1#,2#

main62212-0K080-B0iKUN25,35..(DCB,THDCB)..SR201107-201512

LT.GRAY,TRIM1#,2#

main62212-0K080-B0iKUN25,35..(DCB,THDCB)..SR201107-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),LT.GRAY,TRIM1#,2#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-0K010iKUN2#,35..DCB,THDCB201107-201512

main62311-0K070iKUN25,35..XTR201107-201504

main62313-0K010iKUN25,35..SCB,THSCB201107-201512

62314DTRIM, FRONT DOOR OPENING, LH

main62312-0K010iKUN2#,35..DCB,THDCB201107-201512

main62312-0K070iKUN25,35..XTR201107-201504

main62314-0K010iKUN25,35..SCB,THSCB201107-201512

62333ATRIM, REAR DOOR OPENING, RH

main62331-0K070iKUN2#,35..DCB,THDCB201107-201512

62334ATRIM, REAR DOOR OPENING, LH

main62332-0K070iKUN2#,35..DCB,THDCB201107-201512

62411GARNISH, CENTER PILLAR, RH

main62411-0K060-B1iKUN2#,35..DCB,THDCB201107-201512

LT.GRAY,TRIM1#,2#

sub62411-0K060

62412GARNISH, CENTER PILLAR, LH

main62412-0K060-B1iKUN2#,35..DCB,THDCB201107-201512

LT.GRAY,TRIM1#,2#

sub62412-0K060

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K011-B1iKUN2#,35..THDCB201107-201504

MD.GRAY,TRIM1#

sub62413-0K011

main62413-0K011-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub62413-0K011

main62413-0K021-B1iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main62413-0K021-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K011-B1iKUN2#,35..THDCB201107-201504

MD.GRAY,TRIM1#

sub62414-0K011

main62414-0K011-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub62414-0K011

main62414-0K021-B1iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main62414-0K021-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-0K010-B1iKUN25,35..XTR..EUR201107-201504

MD.GRAY,TRIM1#

main62510-0K010-C0iKUN25,35..XTR..EUR201308-201504

BLACK,TRIM2#

main62510-0K090-B1iKUN25..FLD201208-201504

MD.GRAY,TRIM1#

main62510-0K090-C0iKUN25..LHD..XTR..EUR201308-201504

REAR SEAT-WITHOUT,BLACK,TRIM2#

main62510-0K090-C0iKUN25..LHD..XTR..EUR201308-201504

BLACK,TRIM2#

main62511-0K011-B0iKUN25,35..THDCB201107-201504

LT.GRAY,TRIM1#,2#

sub62511-0K011

main62511-0K021-B0iKUN2#,35..DCB201108-201512

LT.GRAY,TRIM1#,2#

main62511-0K050-B0iKUN25,35..SCB201108-201512

LT.GRAY,TRIM1#,2#

main62511-0K230-B0iKUN26..THDCB201107-201504

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),LT.GRAY,TRIM1#,2#

main62511-0K230-B0iKUN26..THDCB201107-201504

LT.GRAY,TRIM1#,2#

main62511-0K260-B0iKUN25,35..THSCB201107-201504

LT.GRAY,TRIM1#,2#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-0K011-B0iKUN25,35..THDCB201107-201504

LT.GRAY,TRIM1#,2#

sub62512-0K011

main62512-0K021-B0iKUN2#,35..DCB201108-201512

LT.GRAY,TRIM1#,2#

main62512-0K050-B0iKUN25,35..SCB201108-201512

LT.GRAY,TRIM1#,2#

main62512-0K200-B0iKUN26..THDCB201107-201504

LT.GRAY,TRIM1#,2#

main62512-0K200-B0iKUN25,35..THDCB..SR201107-201504

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),LT.GRAY,TRIM1#,2#

main62512-0K260-B0iKUN25,35..THSCB201107-201504

LT.GRAY,TRIM1#,2#

main62520-0K010-B1iKUN25,35..XTR..EUR201107-201504

MD.GRAY,TRIM1#

main62520-0K010-C0iKUN25,35..XTR..EUR201308-201504

BLACK,TRIM2#

main62520-0K080-B1iKUN25..FLD201208-201504

MD.GRAY,TRIM1#

main62520-0K080-C0iKUN25..LHD..XTR..EUR201308-201504

BLACK,TRIM2#

main62520-0K080-C0iKUN25..LHD..XTR..EUR201308-201504

REAR SEAT-WITHOUT,BLACK,TRIM2#

62513APANEL, QUARTER TRIM, LOWER RH

main62513-0K010-B2iKUN26..THDCB201107-201504

MD.GRAY,TRIM1#

sub62513-0K010

main62513-0K010-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub62513-0K010

main62513-0K020-B2iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main62513-0K020-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

main62513-0K040-B1iKUN25,35..THSCB201107-201504

MD.GRAY,TRIM1#

sub62513-0K040

main62513-0K040-C0iKUN25,35..THSCB201308-201504

BLACK,TRIM2#

sub62513-0K040

main62513-0K050-B1iKUN25,35..SCB201108-201512

MD.GRAY,TRIM1#

main62513-0K050-C0iKUN25,35..SCB201310-201512

BLACK,TRIM2#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-0K010-B2iKUN26..THDCB201107-201504

MD.GRAY,TRIM1#

sub62514-0K010

main62514-0K010-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub62514-0K010

main62514-0K020-B2iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main62514-0K020-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

main62514-0K040-B1iKUN25,35..THSCB201107-201504

MD.GRAY,TRIM1#

sub62514-0K040

main62514-0K040-C0iKUN25,35..THSCB201308-201504

BLACK,TRIM2#

sub62514-0K040

main62514-0K050-B1iKUN25,35..SCB201108-201512

MD.GRAY,TRIM1#

main62514-0K050-C0iKUN25,35..SCB201310-201512

BLACK,TRIM2#

64261CGARNISH, BACK PANEL, UPPER

main64261-0K010-B1iKUN2#,35..THDCB,THSCB201107-201504

LT.GRAY,TRIM1#,2#

sub64261-0K010

main64261-0K020-B1iKUN2#,35..DCB,SCB201108-201512

LT.GRAY,TRIM1#,2#

main64261-0K040-B1iKUN25,35..XTR201107-201504

MD.GRAY,TRIM1#

sub64261-0K040

main64261-0K040-C0iKUN25,35..XTR201308-201504

BLACK,TRIM2#

sub64261-0K040

64271CTRIM, BACK PANEL

main64271-0K010-C0iKUN2#,35..THDCB..SR201107-201504

BLACK,TRIM1#,2#

main64271-0K020-C0iKUN26..DCB;KUN25,35..DCB..SR201108-201512

BLACK,TRIM1#,2#

main64271-0K040-C0iKUN25..THSCB..CBU201408-201504

BLACK,TRIM1#,2#

main64271-0K050-C0iKUN25,35..SCB..SR;KUN25..RHD..SCB..DLX201410-201512

BLACK,TRIM1#,2#

64271DCLIP(FOR BACK PANEL TRIM)

main90467-T0004-C1iKUN26;KUN25,35..(DCB,THDCB)..SR201107-201512

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),BLACK,TRIM1#,2#

main90467-T0004-C1iKUN25..THSCB..IV3;KUN25..LHD..SCB..DLX;KUN35..(SCB,THSCB)..DLX201107-201512

BLACK,TRIM1#,2#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K010-B1iKUN2#,35..THDCB201107-201504

MD.GRAY,TRIM1#

main67913-0K010-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

main67913-0K020-B1iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main67913-0K020-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

main67913-0K040-B1iKUN25,35..THSCB,XTR201107-201504

MD.GRAY,TRIM1#

sub67913-0K040

main67913-0K040-C0iKUN25,35..THSCB,XTR201308-201504

BLACK,TRIM2#

sub67913-0K040

main67913-0K050-B1iKUN25,35..SCB201108-201512

MD.GRAY,TRIM1#

main67913-0K050-C0iKUN25,35..SCB201310-201512

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K010-B1iKUN2#,35..THDCB201107-201504

MD.GRAY,TRIM1#

sub67914-0K010

main67914-0K010-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub67914-0K010

main67914-0K020-B1iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main67914-0K020-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

main67914-0K040-B1iKUN25,35..THSCB,XTR201107-201504

MD.GRAY,TRIM1#

sub67914-0K040

main67914-0K040-C0iKUN25,35..THSCB,XTR201308-201504

BLACK,TRIM2#

sub67914-0K040

main67914-0K050-B1iKUN25,35..SCB201108-201512

MD.GRAY,TRIM1#

main67914-0K050-C0iKUN25,35..SCB201310-201512

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K010-B1iKUN2#,35..THDCB201107-201504

MD.GRAY,TRIM1#

sub67917-0K010

main67917-0K010-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub67917-0K010

main67917-0K020-B1iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main67917-0K020-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K010-B1iKUN2#,35..THDCB201107-201504

MD.GRAY,TRIM1#

sub67918-0K010

main67918-0K010-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub67918-0K010

main67918-0K020-B1iKUN2#,35..DCB201108-201512

MD.GRAY,TRIM1#

main67918-0K020-C0iKUN2#,35..DCB201310-201512

BLACK,TRIM2#

7152

7455

9046706155

main90467-06155

9046709204

main90467-09204

9046710161

main90467-10161

9046710188

main90467-10188

90467T0008C0

main90467-T0008C0

90467T0021

main90467-T0021

36 parts on this diagram · 3 diagrams in section
