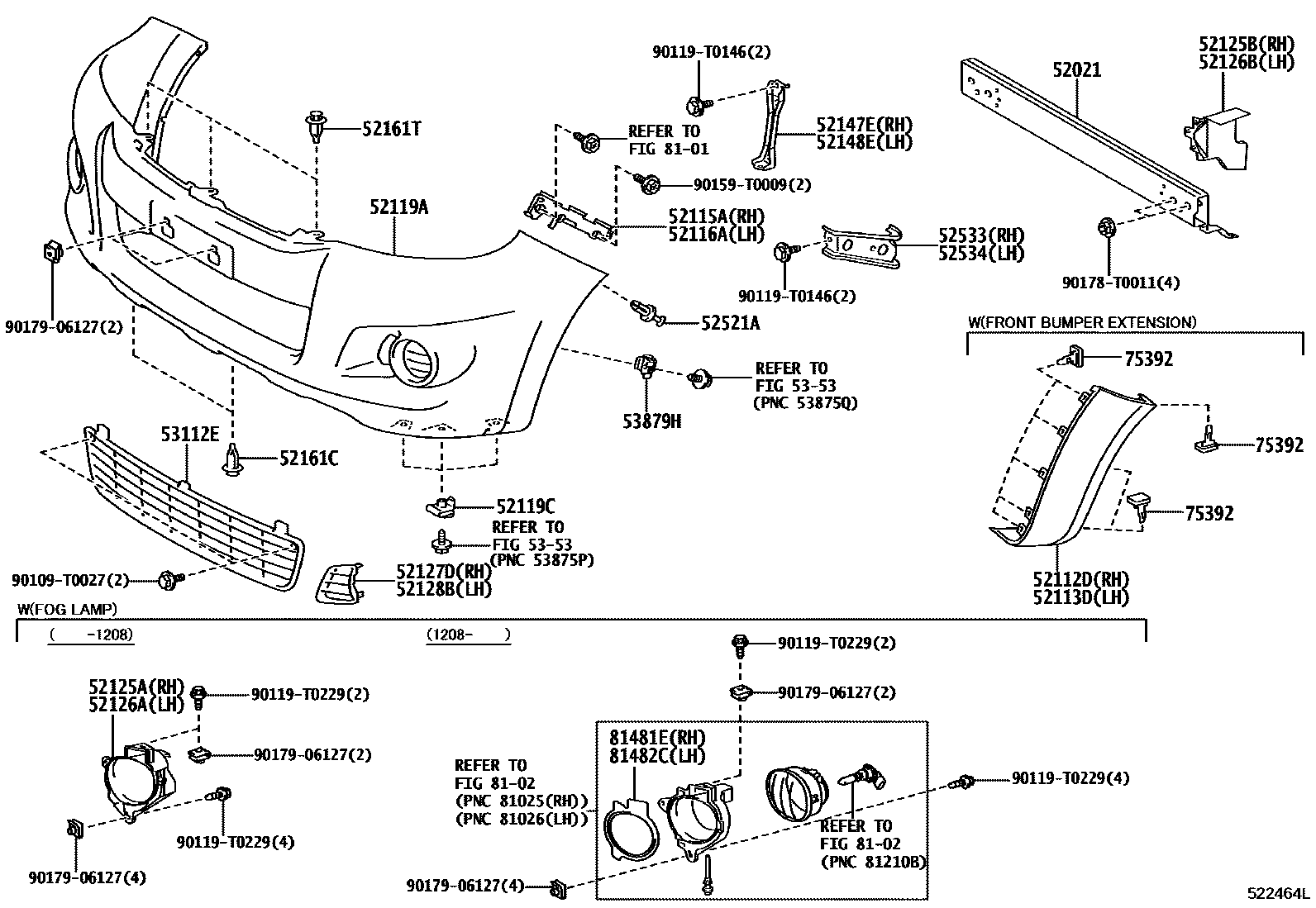

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0K022i201107-201512

52112DEXTENSION, FRONT BUMPER, RH

main52112-0K150i201107-201504

PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ,PAINT REQ.; TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,PAINT REQ.

main52112-0K160i201108-201512

NO PAINT REQ.; PAINT REQ.; REAR BUMPER-FLAT TYPE(STEEL & PLATED),PAINT REQ.; TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,PAINT REQ.

52113DEXTENSION, FRONT BUMPER, LH

main52113-0K140i201111-201308

NO PAINT REQ.

main52113-0K150i201108-201512

NO PAINT REQ.; PAINT REQ.; REAR BUMPER-FLAT TYPE(STEEL & PLATED),PAINT REQ.; TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,PAINT REQ.

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0K060i201107-201504

main52115-0K070i201108-201512

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0K060i201107-201504

main52116-0K070i201108-201512

52119ACOVER, FRONT BUMPER

main52119-0K280i201107-201512

NO PAINT REQ.

main52119-0K290i201108-201308

NO PAINT REQ.

main52119-0K982i201107-201512

PAINT REQ.

main52119-0K981i201308-201504

PAINT REQ.,TIRE & DISC WHEEL-265/65R17 7.5J; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM&FRONT FOG LAMP-WITH(19W); PAINT REQ.,TIRE & DISC WHEEL-265/65R17 7.5J&FRONT FOG LAMP-WITH(19W)

52119CCLIP, FRONT BUMPER COVER

main90467-05138×6i201107-201512

52125ABRACKET, FOG LAMP MOUNTING, RH

main81481-0K050i201107-201208

FRONT FOG LAMP-WITH(51W OR 55W)

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-0K010i201107-201512

52126ABRACKET, FOG LAMP MOUNTING, LH

main81482-0K040i201107-201208

FRONT FOG LAMP-WITH(51W OR 55W)

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-0K010i201107-201512

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0K030i201107-201512

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-0K030i201107-201512

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-0K040i201107-201512

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-0K040i201107-201512

52161CPIECE, FRONT BUMPER

main52161-0K050×2i201107-201512

52161TPIECE, FRONT BUMPER

main52161-0K040×3i201107-201512

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05090-B1×2i201107-201512

DK.GRAY

52533BRACKET, FRONT BUMPER RETAINER, NO.1

main52533-0K050i201107-201512

52534BRACKET, FRONT BUMPER RETAINER, NO.2

main52533-0K050i201107-201512

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0K050i201107-201504

NO PAINT REQ.

main53112-0K060i201108-201512

NO PAINT REQ.

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53879HRETAINER, FRONT FENDER LINER

main53879-0K010×2i201107-201512

75392RETAINER, OUTSIDE MOULDING

main75392-0K010×16i201111-201308

TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; TIRE & DISC WHEEL-255/70R15C 7JJ

main75392-35220×16i201107-201110

TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&FRONT FOG LAMP-WITH(51W OR 55W); TIRE & DISC WHEEL-255/70R15C 7JJ; TIRE & DISC WHEEL-255/70R15C 7JJ&FRONT FOG LAMP-WITH(51W OR 55W); TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM; TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM&FRONT FOG LAMP-WITH(51W OR 55W)

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

81481ECOVER, FOG LAMP, RH

main81481-0K080i201208-201512

FRONT FOG LAMP-WITH(19W)

81482CCOVER, FOG LAMP, LH

main81482-0K060i201208-201512

FRONT FOG LAMP-WITH(19W)

90109T0027

main90109-T0027
