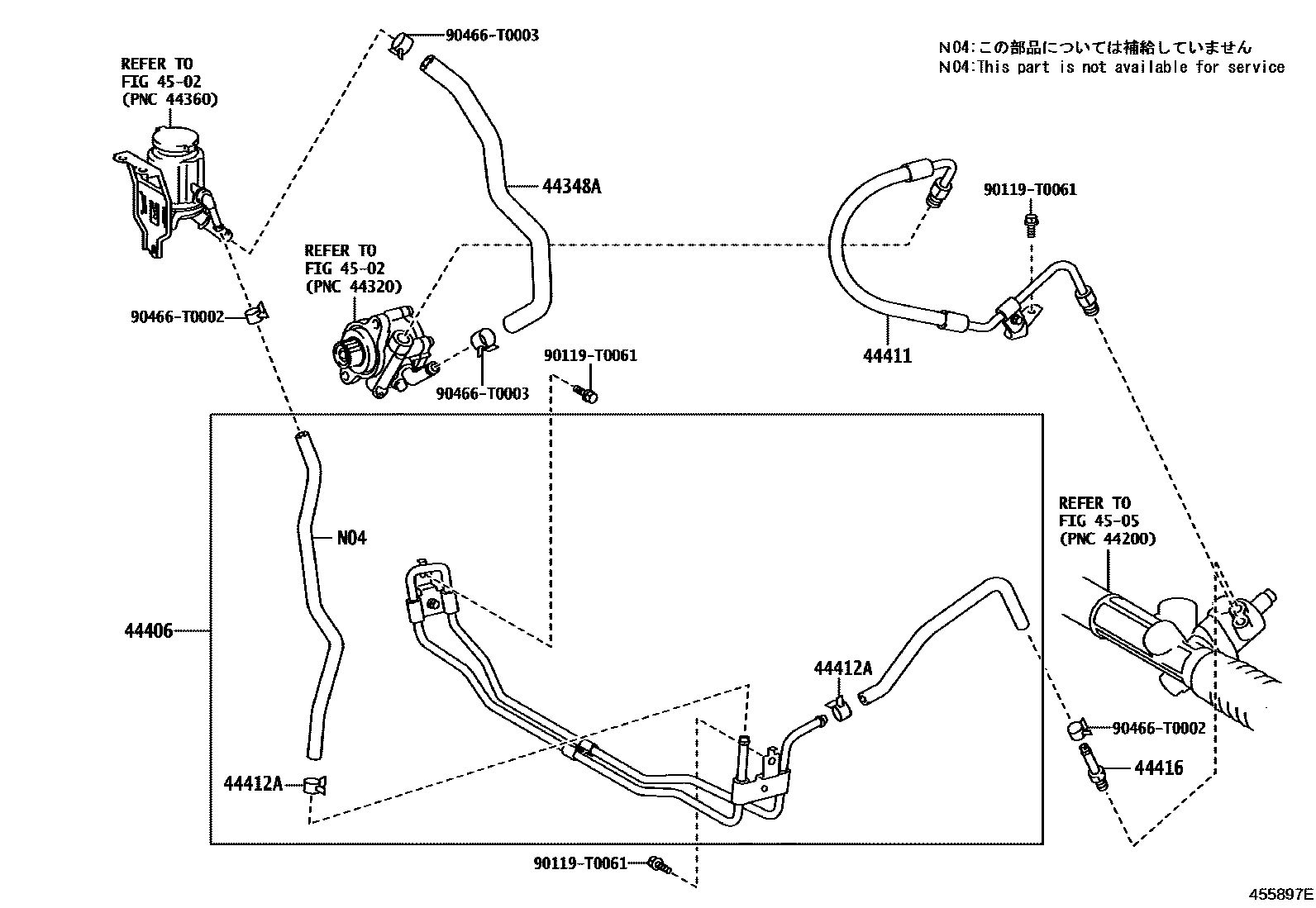

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K010iKUN2#,35201107-201512

44406TUBE SUB-ASSY, RETURN

main44406-0K050iKUN2#,35..LHD201107-201512

44411HOSE, PRESSURE FEED

main44411-0K030iKUN2#,35..LHD201107-201512

44412ACLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)

main90466-T0002×2iKUN2#,35201107-201512

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K010iKUN2#,35201107-201512

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

main90119-T0061

90466T0002

main90466-T0002

90466T0003

main90466-T0003

10 parts on this diagram · 2 diagrams in section
