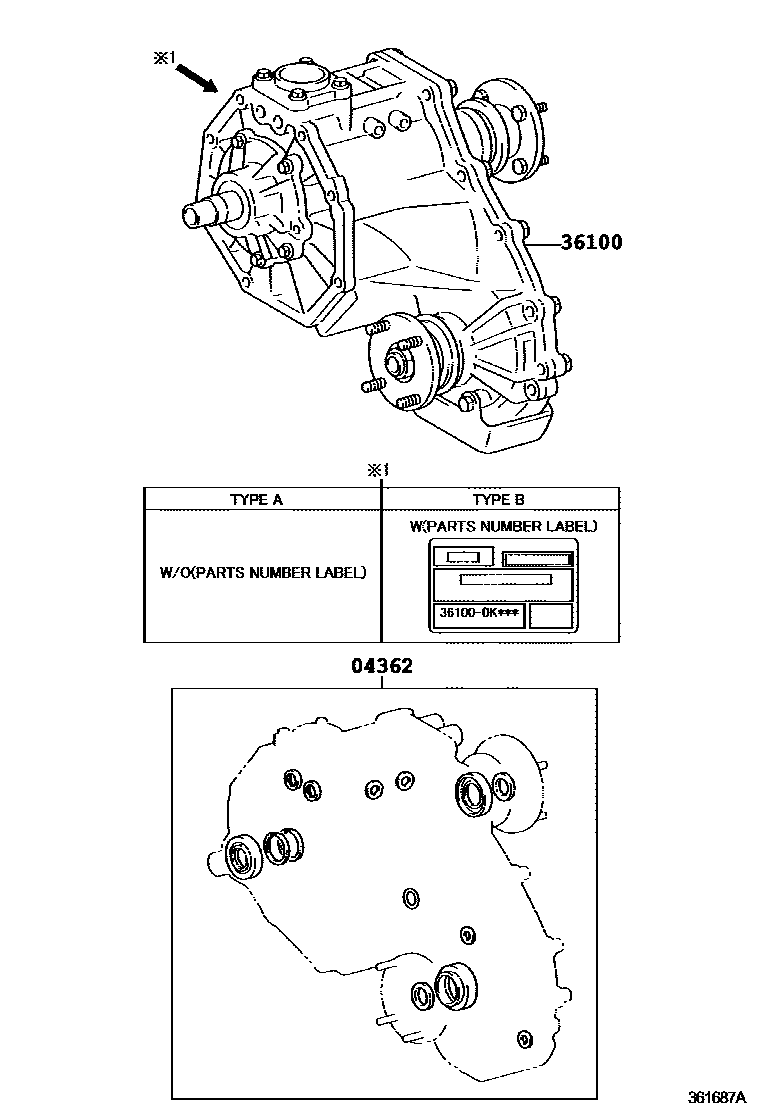

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-71090i201107-201411

TYPE A:REFER ILLUST.,TYPE B:REFER ILLUST.

main04362-71091i201411-201512

TYPE A:REFER ILLUST.,TYPE B:REFER ILLUST.

36100TRANSFER ASSY

main36100-0K200supersedes 36100-71401i201108-201512

TYPE B:REFER ILLUST.

main36100-0K270i201107-201408

TYPE B:REFER ILLUST.

main36100-0K280supersedes 36100-71171i201107-201512

TYPE B:REFER ILLUST.

main36100-71160i201107-201307

TYPE A:REFER ILLUST.

main36100-71161i201307-201408

TYPE A:REFER ILLUST.

main36100-71170i201107-201307

DIFFERENTIAL LOCK-WITH&VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.; VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE A:REFER ILLUST.

main36100-71171i201408-201512

TYPE A:REFER ILLUST.

main36100-71220supersedes 36100-71400i201108-201307

TYPE A:REFER ILLUST.

main36100-71221i201307-201512

TYPE A:REFER ILLUST.

main36100-0K290i201410-201512

RUSSIA & UKRAINE SPEC,TYPE B:REFER ILLUST.

main36100-71400i201108-201307

RUSSIA & UKRAINE SPEC&VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE A:REFER ILLUST.

main36100-71401i201307-201410

RUSSIA & UKRAINE SPEC&VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.

2 parts on this diagram · 1 diagram in section
