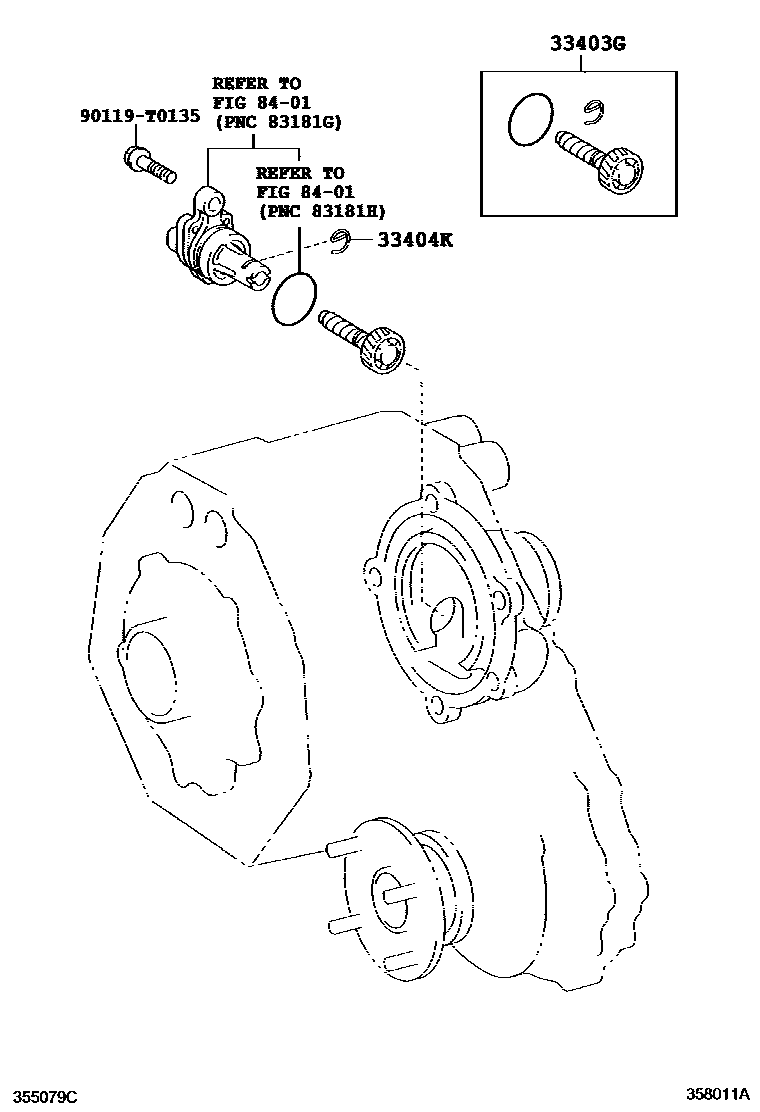

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39575supersedes 33403-39585iKUN26..LHD..5FC..DLX201108-201512

N=27,MARK 27:11

main33403-39515iKUN26..LHD..DCB..5FC..SR201410-201512

N=29,MARK 29:11,RUSSIA & UKRAINE SPEC

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKUN26..5FC201107-201512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0135

main90119-T0135

4 parts on this diagram · 1 diagram in section
