GEAR SHIFT FORK & LEVER SHAFT (MTM)

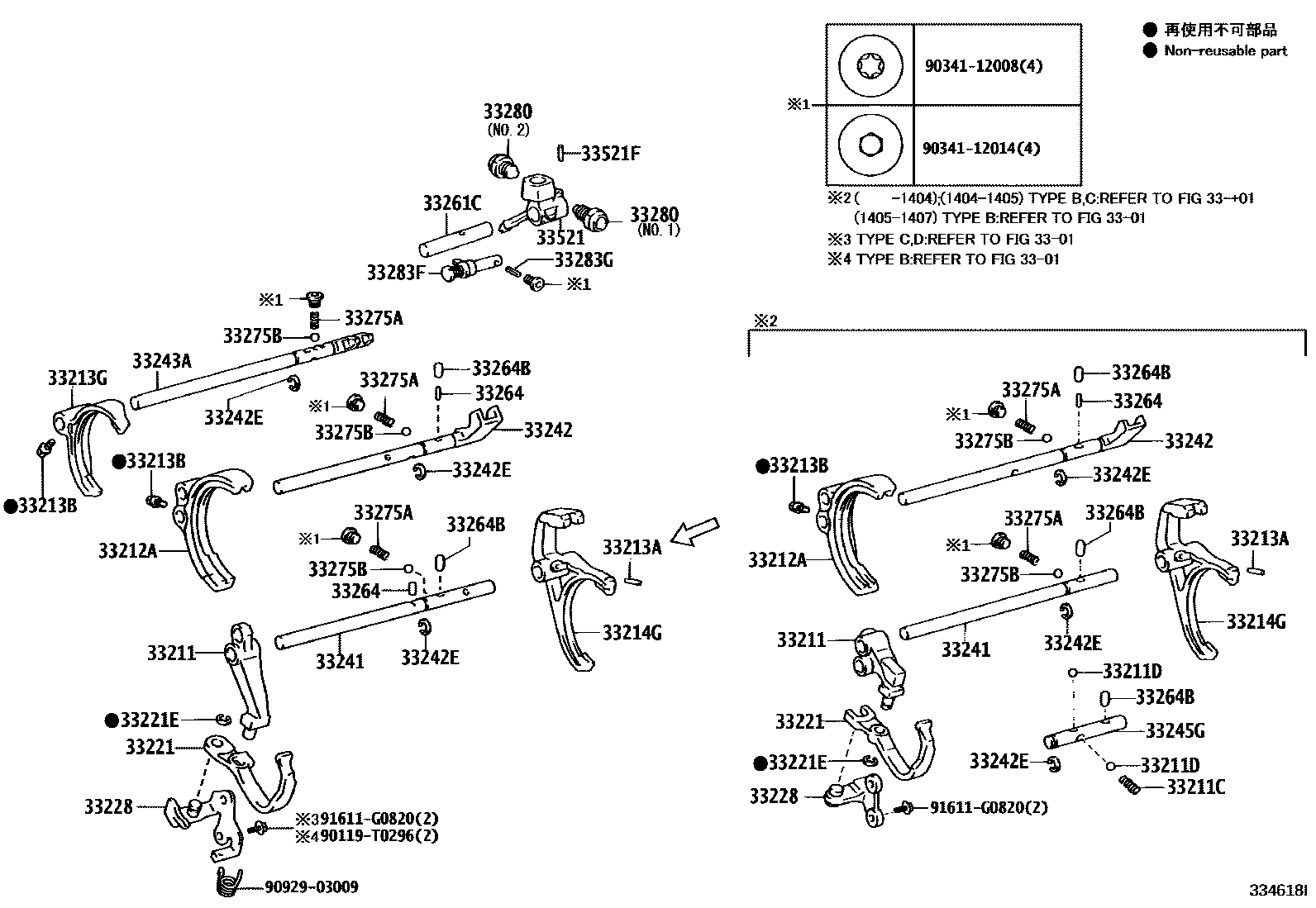

Parts diagram
33211FORK, REVERSE SHIFT
main33211-0K010i201107-201405
TYPE C:REFER 33-01
main33211-0K030i201107-201407
TYPE B:REFER 33-01
main33211-0K040i201107-201407
TYPE D:REFER 33-01
main33211-0K050i201407-201504
TYPE B:REFER 33-01
main33211-0K060i201405-201512
TYPE C:REFER 33-01
main33211-0K070i201404-201512
TYPE D:REFER 33-01
33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
main90501-12166i201107-201401
TYPE C:REFER 33-01
main90501-T0022i201107-201407
TYPE B:REFER 33-01
33211DBALL(FOR REVERSE SHIFT FORK)
main90360-10003×2i201107-201407
OD=9.52,STEEL,TYPE B:SEE 33-01,(J)
main90360-T0008i201304-201407
OD=9.53,STEEL,TYPE B:SEE 33-01,(L)
33212AFORK, GEAR SHIFT, NO.1
main33212-0K020i201107-201504
TYPE B:REFER 33-01
main33212-0K030i201107-201512
TYPE D:REFER 33-01
sub33212-0K060
main33212-0K050i201406-201512
TYPE C:REFER 33-01
main33212-35032i201107-201406
TYPE C:REFER 33-01
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
main90254-05016i201107-201405
TYPE C:REFER 33-01
main90254-T0004×2i201304
TYPE B:SEE 33-01,(L)
33213BBOLT(FOR SHIFT FORK SET)
main90105-06077×2i201107-201401
TYPE C:REFER 33-01
33213GFORK, GEAR SHIFT, NO.2
main33213-0K030i201407-201504
TYPE B:REFER 33-01
main33213-0K040i201404-201512
TYPE D:REFER 33-01
main33213-35040i201107-201405
TYPE C:REFER 33-01
33214GFORK, GEAR SHIFT, NO.3
main33230-0K030i201506-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main33230-35011i201107-201407
TYPE B:REFER 33-01
main33230-35012i201407-201504
TYPE B:REFER 33-01
33221ARM, REVERSE SHIFT
main33221-0K010i201107-201401
TYPE C:REFER 33-01
main33221-0K030i201107-201407
TYPE B:REFER 33-01
main33221-0K040i201107-201404
TYPE D:REFER 33-01
main33221-0K050i201407-201504
TYPE B:REFER 33-01
main33221-0K060i201401-201511
TYPE C:REFER 33-01
sub33221-0K080
main33221-0K070i201407-201512
TYPE D:REFER 33-01
33221ERING(FOR REVERSE SHIFT ARM END SHAFT)
main96160-01000i201107-201407
TYPE B:REFER 33-01
33228BRACKET, REVERSE SHIFT ARM
main33228-0K010i201107-201401
TYPE C:REFER 33-01
main33228-0K030i201107-201407
TYPE B:REFER 33-01
main33228-0K040i201107-201407
TYPE D:REFER 33-01
main33228-35050i201407-201512
TYPE D:REFER 33-01
33241SHAFT, REVERSE SHIFT FORK
main33244-0K010i201107-201401
TYPE C:REFER 33-01
main33244-0K030i201107-201407
TYPE B:REFER 33-01
main33244-0K040i201107-201407
TYPE D:REFER 33-01
main33244-0K050i201407-201504
TYPE B:SEE 33-01,(L)
main33244-0K060i201401-201512
TYPE C:REFER 33-01
main33244-0K070i201404-201512
TYPE D:REFER 33-01
main33244-35110i201407-201504
TYPE B:SEE 33-01,(J)
33242SHAFT, GEAR SHIFT FORK, NO.1
main33242-0K010i201107-201401
TYPE C:REFER 33-01
main33242-0K030i201107-201407
TYPE B:SEE 33-01,(L)
main33242-0K040i201107-201404
TYPE D:REFER 33-01
main33242-0K050i201407-201504
TYPE B:SEE 33-01,(L)
main33242-0K060i201405-201510
TYPE C:REFER 33-01
main33242-0K070i201404-201512
TYPE D:REFER 33-01
main33242-0K110i201511-201512
TYPE C:REFER 33-01
main33242-35070i201112-201407
TYPE B:SEE 33-01,(J)
main33242-35090i201407-201504
TYPE B:SEE 33-01,(J)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
main90520-12003×4i201107-201512
TYPE D:REFER 33-01
main90520-T0135×4i201407-201504
TYPE B:REFER 33-01
33243ASHAFT, GEAR SHIFT FORK, NO.2
main33243-0K010i201107-201510
TYPE C:REFER 33-01
main33243-0K030i201107-201504
TYPE B:SEE 33-01,(L)
main33243-0K040i201107-201512
TYPE D:REFER 33-01
main33243-0K070i201511-201512
TYPE C:REFER 33-01
main33243-35100i201112-201504
TYPE B:SEE 33-01,(J)
33245GSHAFT, GEAR SHIFT FORK, NO.4
main33245-0K010i201107-201401
TYPE C:REFER 33-01
main33245-0K030i201107-201407
TYPE B:SEE 33-01,(L)
main33245-0K040i201107-201407
TYPE D:REFER 33-01
main33245-35090i201112-201407
TYPE B:SEE 33-01,(J)
33261CSHAFT, SHIFT & SELECT LEVER
main33261-0K010i201107-201512
TYPE C:REFER 33-01
main33261-0K020i201107-201504
TYPE B:REFER 33-01
main33261-0K030i201107-201512
TYPE D:REFER 33-01
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
main90250-05029i201107-201405
L=11.5,OD=4.8,TYPE C:REFER 33-01
main90250-T0022i201107-201504
L=11.5,OD=4.8,TYPE B:REFER 33-01
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
main90361-10003×3i201107-201405
L=13.6,OD=9.5,TYPE C:REFER 33-01
main90361-T0003×3i201107-201504
L=13.6,PIN,TYPE B:REFER 33-01
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
main90501-16143×3i201107-201203
L=33.8,TYPE D:REFER 33-01,TYPE C:REFER 33-01
main90501-16199×3i201203-201411
L=35.09,TYPE C:REFER 33-01
main90501-T0021×3i201107-201203
L=33.8,TYPE B:REFER 33-01
main90501-T0029×3i201203-201504
L=35.09,TYPE B:REFER 33-01
main90501-T0052×3i201412-201512
L=35.09,TYPE C:REFER 33-01
33275BBALL, SHAFT DETENT
main90360-10003×3i201107-201504
TYPE B:SEE 33-01,(J)
main90360-T0008×3i201304-201504
TYPE B:SEE 33-01,(L)
33280PIN ASSY, REVERSE RESTRICT
main33280-0K050i201409-201504
T/P B:SEE 33-01,NO.1
main33280-0K060i201409-201504
T/P B:SEE 33-01,NO.2
main33280-0K070i201409-201504
T/P B:SEE 33-01,NO.1
main33280-0K080i201409-201504
T/P B:SEE 33-01,NO.2
main33280-35110i201107-201409
T/P B:SEE 33-01,NO.1
main33280-35120i201107-201512
T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main33280-35130i201107-201512
T/P C:SEE 33-01,NO.2,T/P D:SEE 33-01,NO.2
main33280-35140i201107-201409
T/P B:SEE 33-01,NO.2
33283FPIN, REVERSE RESTRICT
main33280-35100i201107-201504
TYPE B:REFER 33-01
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
main90254-05001i201107-201504
TYPE B:SEE 33-01,(J)
main90254-T0003i201304-201504
TYPE B:SEE 33-01,(L)
33521HOUSING, SHIFT LEVER
main33521-0K030i201107-201505
TYPE C:REFER 33-01
main33521-0K050i201107-201505
TYPE C:REFER 33-01
main33521-0K080i201107-201504
TYPE B:REFER 33-01
main33521-0K090i201107-201504
TYPE B:REFER 33-01
main33521-0K110i201107-201512
TYPE D:REFER 33-01
main33521-0K260i201505-201512
TYPE C:REFER 33-01
main33521-0K270i201505-201512
TYPE C:REFER 33-01
main33521-35331i201107-201512
TYPE D:SEE 33-01,(J)
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
main90109-08305i201107-201404
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main90109-T0039i201404-201512
TYPE D:SEE 33-01,(L),TYPE C:SEE 33-01,(L)
main90254-05016i201107
TYPE D:REFER 33-01,TYPE C:REFER 33-01
90119T0296
main90119-T0296
9034112008
main90341-12008
9034112014
main90341-12014
9092903009
main90929-03009
91611G0820
main91611-G0820

31 parts on this diagram · 2 diagrams in section
