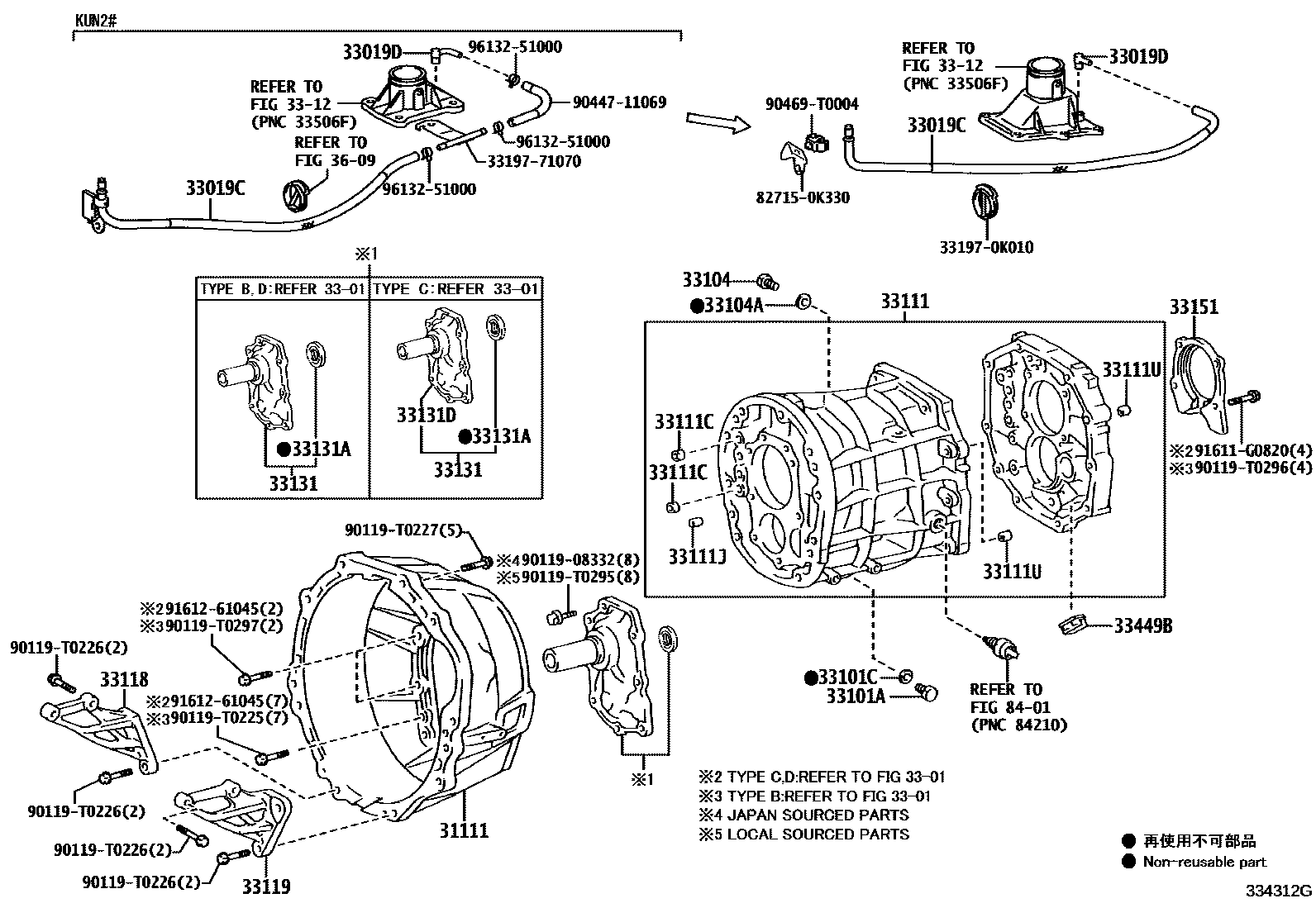

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main31111-0K010iKUN2#,35..5F201107-201512

TYPE C:REFER 33-01

main31111-0K060iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201112

TYPE B:REFER 33-01

main31111-0K061iKUN2#,35..(THDCB,THSCB,XTR)..5F201409-201504

TYPE B:SEE 33-01,(L)

main31111-0K090iKUN2#,35..5F201107-201512

TYPE D:REFER 33-01

main31111-35101iKUN2#,35..(THDCB,THSCB,XTR)..5F201112-201408

TYPE B:SEE 33-01,(J)

main31111-35102iKUN2#,35..(THDCB,THSCB,XTR)..5F201409-201504

TYPE B:SEE 33-01,(J)

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-71110iKUN35201107-201512

main33019-71120iKUN2#..5F201107-201512

33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)

main33191-71010iKUN35201107-201512

TYPE D:REFER 33-01

main90412-07005iKUN2#..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKUN2#,35..5F201107-201512

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90430-T0021iKUN2#,35..(THDCB,THSCB,XTR)..5F201502-201504

TYPE B:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKUN2#,35..5F201107-201512

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90430-T0021iKUN2#,35..(THDCB,THSCB,XTR)..5F201502-201504

TYPE B:REFER 33-01

33111CASE, MANUAL TRANSMISSION

main33101-0K010iKUN2#,35..(THDCB,THSCB,XTR)..5F201203-201504

T/P B:SEE 33-01,*306

main33101-0K030iKUN2#,35..5F201107-201512

TYPE D:REFER 33-01

main33101-0K040iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201203

TYPE B:REFER 33-01

33111CPLUG(FOR TRANSMISSION CASE)

main96411-41800×3iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

OD=18,TYPE B:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iKUN2#,35..(THDCB,THSCB,XTR)..5F201203-201504

L=16,OD=12,TYPE B:SEE 33-01,(J)

main90250-T0020×2iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

L=16,OD=12,TYPE B:SEE 33-01,(L)

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iKUN2#,35..5F201107-201512

L=14,OD=15,TYPE D:REFER 33-01,TYPE C:REFER 33-01

33118PLATE, STIFFENER, RH(MTM)

main33118-04020iKUN2#,35..5F201107-201512

33119PLATE, STIFFENER, LH(MTM)

main33119-0K020iKUN2#,35..5F201107-201512

3312

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K010iKUN2#,35..5F201107-201208

TYPE C:REFER 33-01

main33018-0K011iKUN2#,35..5F201208-201512

TYPE C:REFER 33-01

sub33018-0K012

main33018-0K040iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

sub33018-0K041

main33018-0K070iKUN2#,35..5F201107-201512

TYPE D:REFER 33-01

sub33018-0K071

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-T0017iKUN2#,35..5F201107-201208

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90311-T0027iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

main90311-T0057iKUN2#,35..5F201208-201512

TYPE D:REFER 33-01,TYPE C:REFER 33-01

sub90311-T0094

33131DRETAINER, BEARING, FRONT

main33131-0K010iKUN2#,35..5F201107-201512

TYPE C:REFER 33-01

sub33131-0K011

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iKUN2#,35..5F201107-201512

TYPE C:REFER 33-01

main33151-0K030iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

main33151-0K040iKUN2#,35..5F201107-201512

TYPE D:REFER 33-01

33449BMAGNET, TRANSMISSION

main33449-35030iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

3609

8401

331970K010CLAMP, TRANSMISSION BREATHER

main33197-0K010

3319771070CLAMP, TRANSMISSION BREATHER

main33197-71070

827150K330BRACKET,WIRING HARNESS CLAMP

main82715-0K330

9011908332

main90119-08332

90119T0225

main90119-T0225

90119T0226

main90119-T0226

90119T0227

main90119-T0227

90119T0295

main90119-T0295

90119T0296

main90119-T0296

90119T0297

main90119-T0297

9044711069

main90447-11069

90469T0004

main90469-T0004

91611G0820

main91611-G0820

9161261045

main91612-61045

9613251000

main96132-51000

36 parts on this diagram · 1 diagram in section
