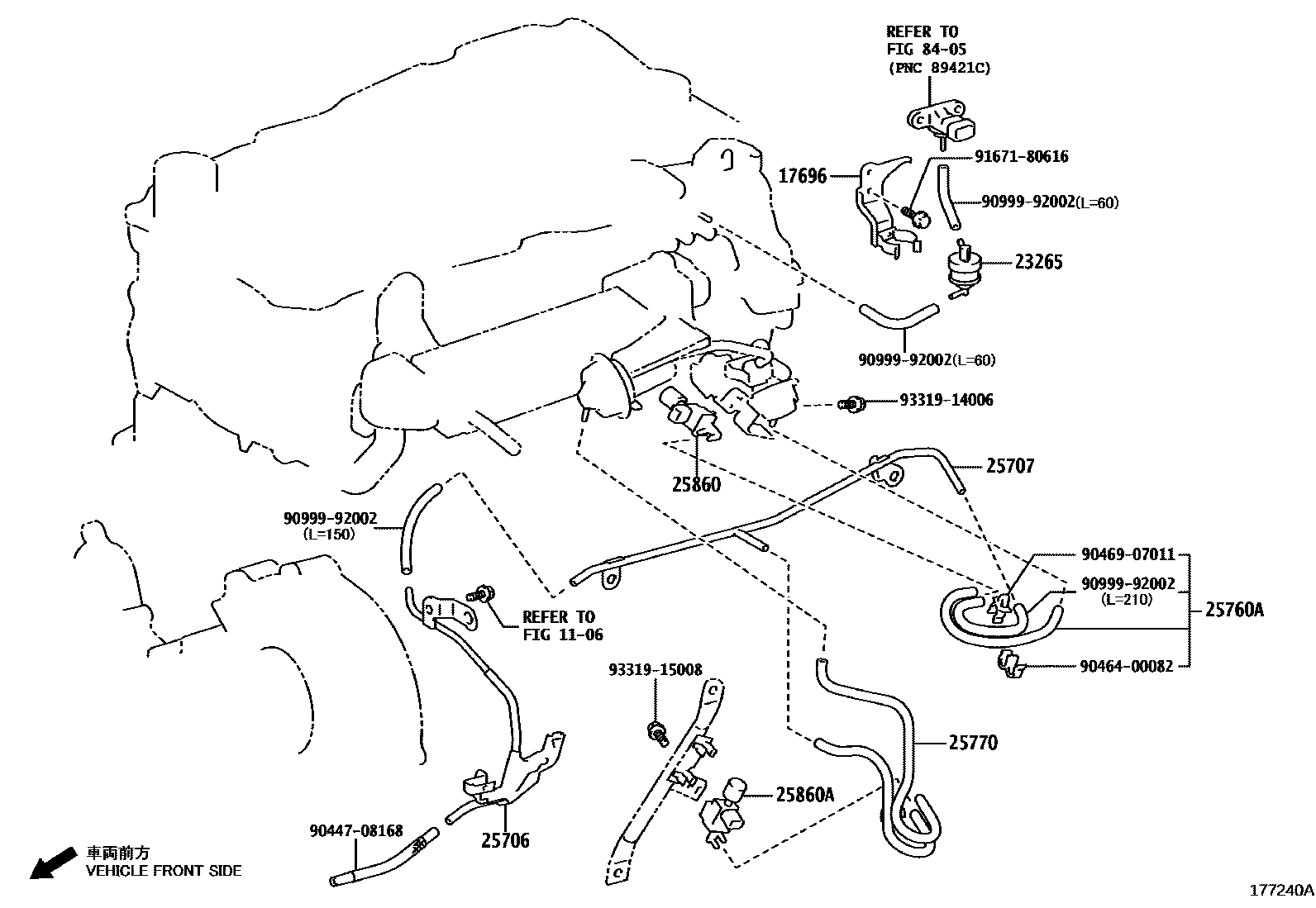

VACUUM PIPING

0001 1 0002 1 0003 1RUSSIA & UKURAINE SPEC 0004 1RUSSIA & UKURAINE OR MOROCCO

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

17696BRACKET, GAS FILTER

main17696-30050i1KDFTV,2KDFTV..KUN2#,35201107-201512

main17696-30020i2KDFTV..KUN25..LHD..(DCB,THDCB)..DLX..CBU201210-201512

MOROCCO SPEC

23265FILTER, GAS, NO.1

main90917-11044i1KDFTV,2KDFTV..KUN2#,35; 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-30070i1KDFTV,2KDFTV..KUN2#,35201107-201512

main25706-30020i2KDFTV..KUN35..SCB..DLX..CBU201210-201310

MOROCCO SPEC

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-30020i1KDFTV,2KDFTV..KUN2#,35201107-201512

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-30060i1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC

25760AHOSE ASSY, VACUUM TRANSMITTING

main25760-30200i1KDFTV..KUN26201107-201512

main25760-30090i2KDFTV..KUN35..SCB..DLX..CBU201210-201310

MOROCCO SPEC

25770HOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-30070i1KDFTV,2KDFTV..KUN2#,35201107-201512

main25770-30020i2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30070i1KDFTV..KUN26201107-201512

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12093i1KDFTV,2KDFTV..KUN2#,35201107-201512

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9044708168

main90447-08168

9046400082

main90464-00082

9046907011

main90469-07011

9099992002

main90999-92002

9167180616

main91671-80616

9331914006

main93319-14006

9331915008

main93319-15008

18 parts on this diagram · 4 diagrams in section
