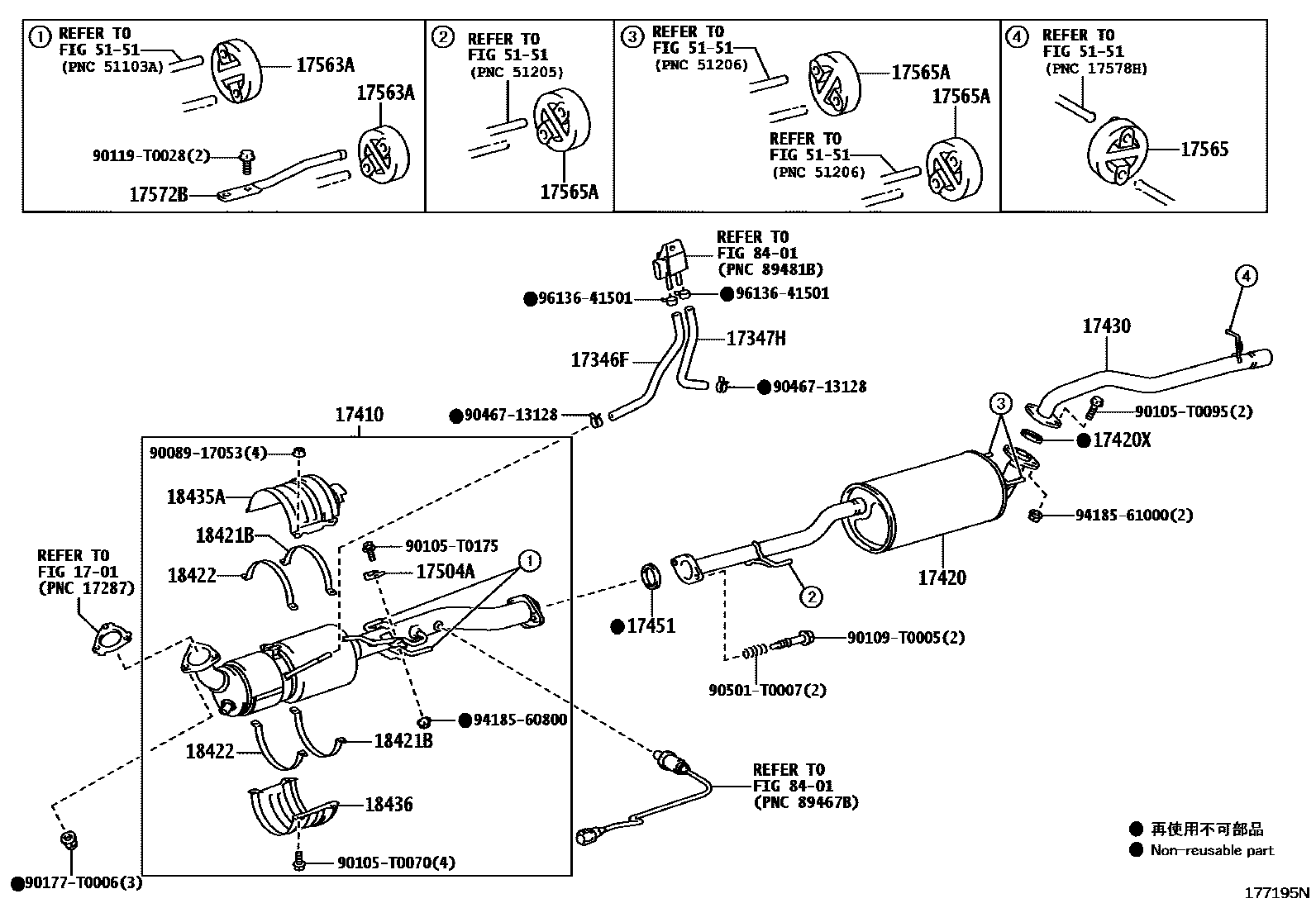

EXHAUST PIPE

0001 1 0002 1RUSSIA & UKURAINE OR MOROCCO

1701MANIFOLD

→ Go to FIG 17-01

17346FHOSE, AIR, NO.6

main17346-30020i1KDFTV,2KDFTV..KUN2#,35201107-201512

17347HHOSE, AIR, NO.7

main17347-30040i1KDFTV,2KDFTV..KUN2#,35201107-201512

17410PIPE ASSY, EXHAUST, FRONT

main17410-0L040i1KDFTV,2KDFTV..KUN2#,35201107-201512

*114=TOYOTA/ZB3/Y

main17401-0L110i2KDFTV..KUN25..THDCB..DLX..CBU201208-201305

*114=TOYOTA/AG6/Y,MOROCCO SPEC,MARK=5F

main17401-0L111i1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU201406-201512

*114=TOYOTA/AG6/Y,RUSSIA & UKRAINE SPEC,MARK=5M

17420PIPE ASSY, EXHAUST, CENTER

main17403-0L101i1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR201107-201304

main17403-0L102i1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR201305-201512

main17403-0L061i2KDFTV..KUN25..THDCB..DLX..CBU201406-201512

MOROCCO SPEC,MARK 2J

main17403-0L063i2KDFTV..KUN25..THDCB..CBU201305-201512

RUSSIA & UKRAINE SPEC,MARK 8M

17420XGASKET, EXHAUST PIPE, CENTER

main90917-T6002i1KDFTV,2KDFTV..KUN2#,35201107-201512

17430PIPE ASSY, EXHAUST, TAIL

main17405-0L141i1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201107-201405

main17405-0L143i1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201406-201512

main17405-0L111i2KDFTV..KUN25..THDCB..CBU201107-201305

RUSSIA & UKRAINE SPEC,MARK 84

main17405-0L112i1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU201406-201512

RUSSIA & UKRAINE SPEC,MARK 2N

17451GASKET, EXHAUST PIPE

main17451-0C010i1KDFTV,2KDFTV..KUN2#,35201107-201512

main90917-T6002i2KDFTV..KUN35..THSCB201208-201308

MOROCCO SPEC

17504ACLAMP SUB-ASSY, EXHAUST PIPE

main17504-0L010i1KDFTV,2KDFTV..KUN2#,35201107-201512

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-0M010×2i1KDFTV,2KDFTV..KUN2#,35; 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0M010i1KDFTV,2KDFTV..KUN2#,35201107-201512

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0M010×3i1KDFTV,2KDFTV..KUN2#,35201107-201512

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-0L020i1KDFTV,2KDFTV..KUN2#,35201107-201512

18421BSTAY, CONVERTER PROTECTOR, NO.2

main18422-0L010×2i1KDFTV,2KDFTV..KUN2#,35201107-201512

18422STAY, CONVERTER PROTECTOR, NO.2

main18421-0L010×2i1KDFTV,2KDFTV..KUN2#,35201107-201512

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-0L020i1KDFTV,2KDFTV..KUN2#,35201107-201512

18436PROTECTOR, MONOLITHIC CONVERTER, NO.1

main18445-0L010i1KDFTV,2KDFTV..KUN2#,35201107-201512

5151FRAME

→ Go to FIG 51-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008917053

main90089-17053

90105T0070

main90105-T0070

90105T0095

main90105-T0095

90105T0175

main90105-T0175

90109T0005

main90109-T0005

90119T0028

main90119-T0028

90177T0006

main90177-T0006

9046713128

main90467-13128

90501T0007

main90501-T0007

9418560800

main94185-60800

9418561000

main94185-61000

9613641501

main96136-41501

31 parts on this diagram · 2 diagrams in section
