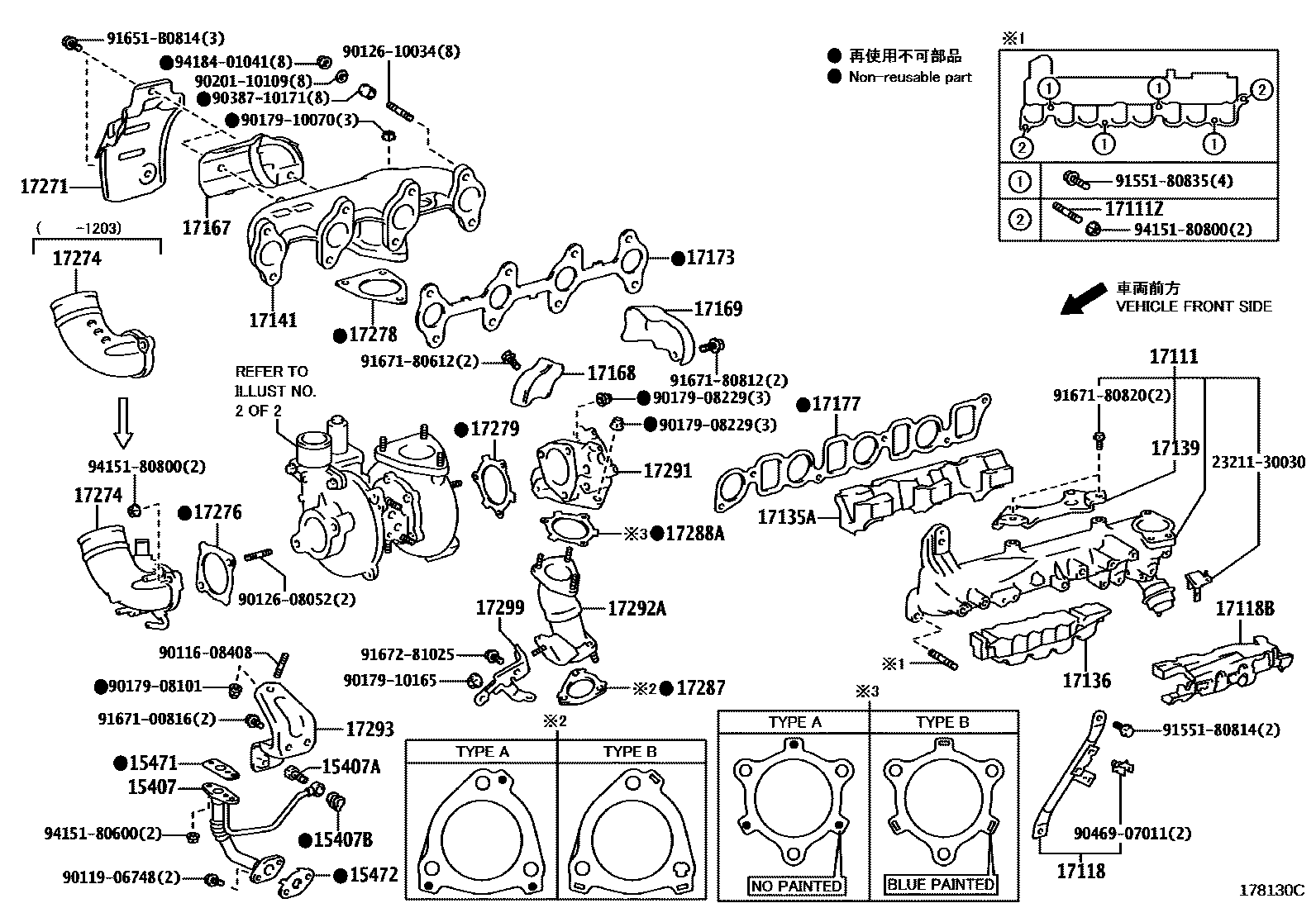

MANIFOLD
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17118BINSULATOR, INTAKE MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
sub17169-0L020
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17271INSULATOR, TURBO, NO.1
17274ELBOW, COMPRESSOR INLET
17276GASKET, COMPRESSOR INLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17291ELBOW, TURBINE OUTLET
17292AELBOW, TURBINE OUTLET, NO.2
17293STAY, TURBOCHARGER
17299STAY, TURBINE OUTLET ELBOW
2321130030BRACKET, WIRE
main23211-30030
9011608408
main90116-08408
9011906748
main90119-06748
9012608052
main90126-08052
9012610034
main90126-10034
9017908101
main90179-08101
9017908229
main90179-08229
9017910070
main90179-10070
9017910165
main90179-10165
9020110109
main90201-10109
9038710171
main90387-10171
9046907011
main90469-07011
9155180814
main91551-80814
9155180835
main91551-80835
91651B0814
main91651-B0814
9167100816
main91671-00816
9167180612
main91671-80612
9167180812
main91671-80812
9167180820
main91671-80820
9167281025
main91672-81025
9415180600
main94151-80600
9415180800
main94151-80800
9418401041
main94184-01041
52 parts on this diagram · 8 diagrams in section
