ENGINE OIL COOLER

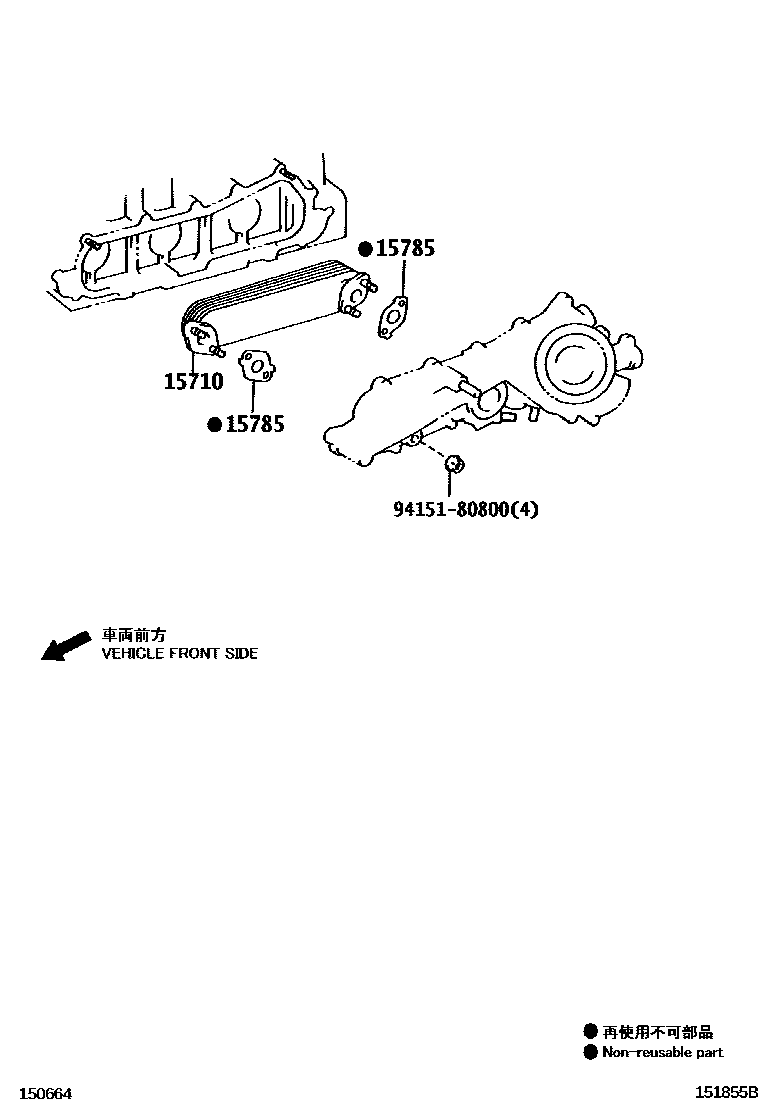

Parts diagram

15710COOLER ASSY, OIL

main15710-30010i201107-201512

main15710-30030i201107-201512

15785GASKET, OIL COOLER

main15785-30010×2i201107-201512

9415180800

main94151-80800

3 parts on this diagram · 1 diagram in section
