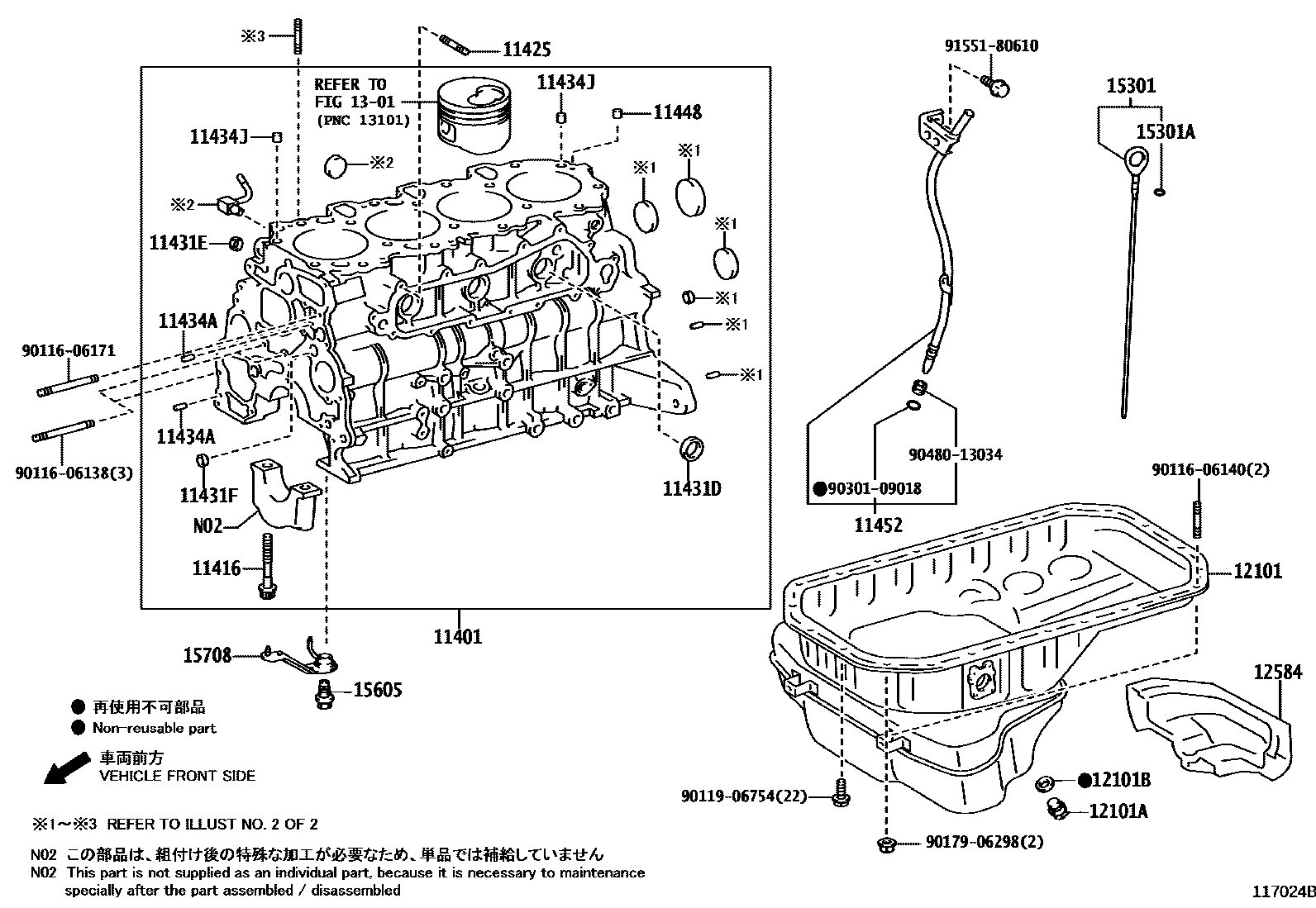

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
RUSSIA & UKRAINE SPEC
RUSSIA & UKRAINE SPEC
MOROCCO SPEC
RUSSIA & UKRAINE SPEC
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11425BOLT, STUD(FOR OIL FILTER)
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
11434JPIN, RING (FOR CYLINDER HEAD SET)
11448ORIFICE, CYLINDER BLOCK OIL
11452GUIDE, OIL LEVEL GAGE
MOROCCO SPEC
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12584INSULATOR, CYLINDER BROCK, NO.4
1301CRANKSHAFT & PISTON
15301GAGE SUB-ASSY, OIL LEVEL
main15301-30070i1KDFTV,2KDFTV..KUN2#,35; 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512
RUSSIA & UKRAINE SPEC
15301ARING, O(FOR OIL LEVEL GAGE)
main96741-19005i1KDFTV,2KDFTV..KUN2#,35; 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512
RUSSIA & UKRAINE SPEC
15605VALVE SUB-ASSY, OIL CHECK
15708NOZZLE SUB-ASSY, OIL, NO.1
9011606138
main90116-06138
9011606140
main90116-06140
9011606171
main90116-06171
9011906754
main90119-06754
9017906298
main90179-06298
9030109018
main90301-09018
9048013034
main90480-13034
9155180610
main91551-80610
27 parts on this diagram · 2 diagrams in section
