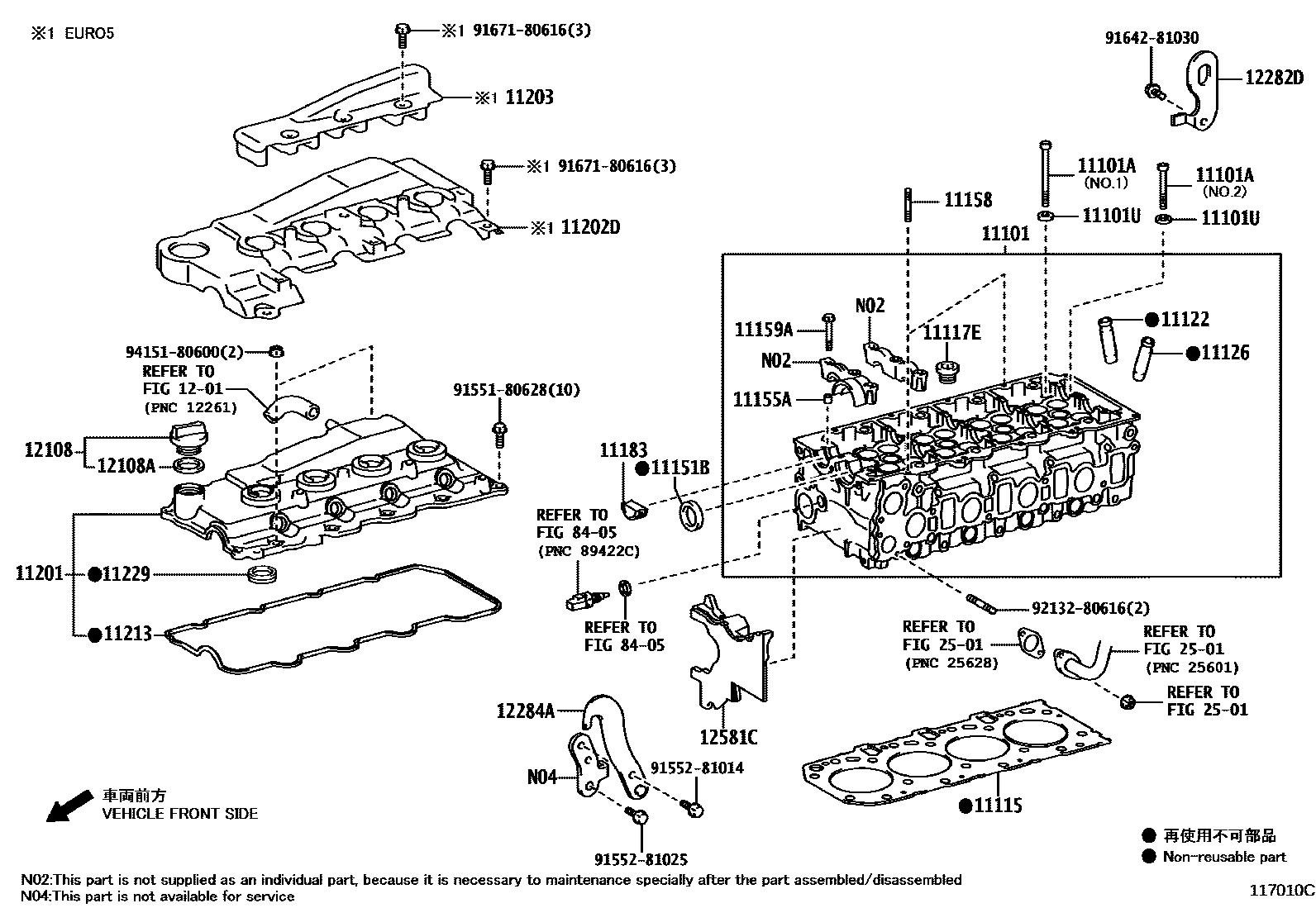

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
*360,(J)
*360
11101ABOLT(FOR CYLINDER HEAD SET)
NO.2
NO.1
11101USPACER(FOR CYLINDER HEAD SET BOLT)
11115GASKET, CYLINDER HEAD
MARK A,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
MARK D,(L):REFER R/M
MARK E,(L):REFER R/M
MARK A,REFER R/M
MARK B,REFER R/M
MARK C,REFER R/M
MARK D,REFER R/M
MARK E,REFER R/M
MARKA,(J),REFER R/M
MARKB,(J),REFER R/M
MARKC,(J),REFER R/M
MARKD,(J),REFER R/M
MARKE,(J),REFER R/M
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
(J)
(L)
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
S=9 & 16,L=37
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
11202DCOVER SUB-ASSY, CYLINDER HEAD, NO.2
11203COVER SUB-ASSY, CYLINDER HEAD, NO.3
11213GASKET, CYLINDER HEAD COVER
RUSSIA & UKRAINE SPEC,(J)
11229GASKET, CYLINDER HEAD COVER, NO.3
1201
12108CAP SUB-ASSY, OIL FILLER
RUSSIA & UKRAINE SPEC
RUSSIA & UKRAINE SPEC
MOROCCO SPEC
12108AGASKET(FOR OIL FILLER CAP)
RUSSIA & UKRAINE SPEC
MOROCCO SPEC
RUSSIA & UKRAINE SPEC
12282DHANGER, ENGINE, NO.2
12284AHANGER, ENGINE, NO.1 UPPER
12581CINSULATOR, CYLINDER BLOCK
2501
8405
9155180628
main91551-80628
9155281014
main91552-81014
9155281025
main91552-81025
9164281030
main91642-81030
9167180616
main91671-80616
9213280616
main92132-80616
9415180600
main94151-80600
32 parts on this diagram · 1 diagram in section
