SHORT BLOCK ASSEMBLY

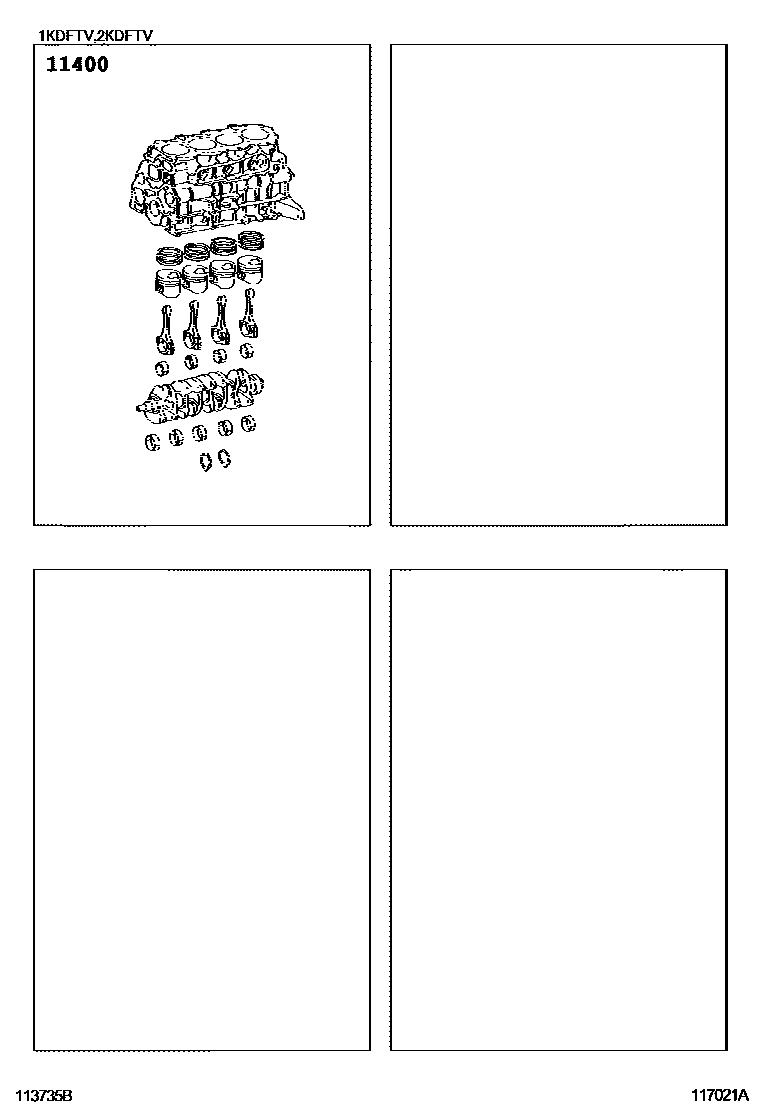

Parts diagram

11400BLOCK ASSY, SHORT

main11400-30380i201107-201512

main11400-30390i201107-201512

main11400-30310i201108-201512

RUSSIA & UKRAINE SPEC

main11400-30340i201210-201310

MOROCCO SPEC

1 parts on this diagram · 1 diagram in section
