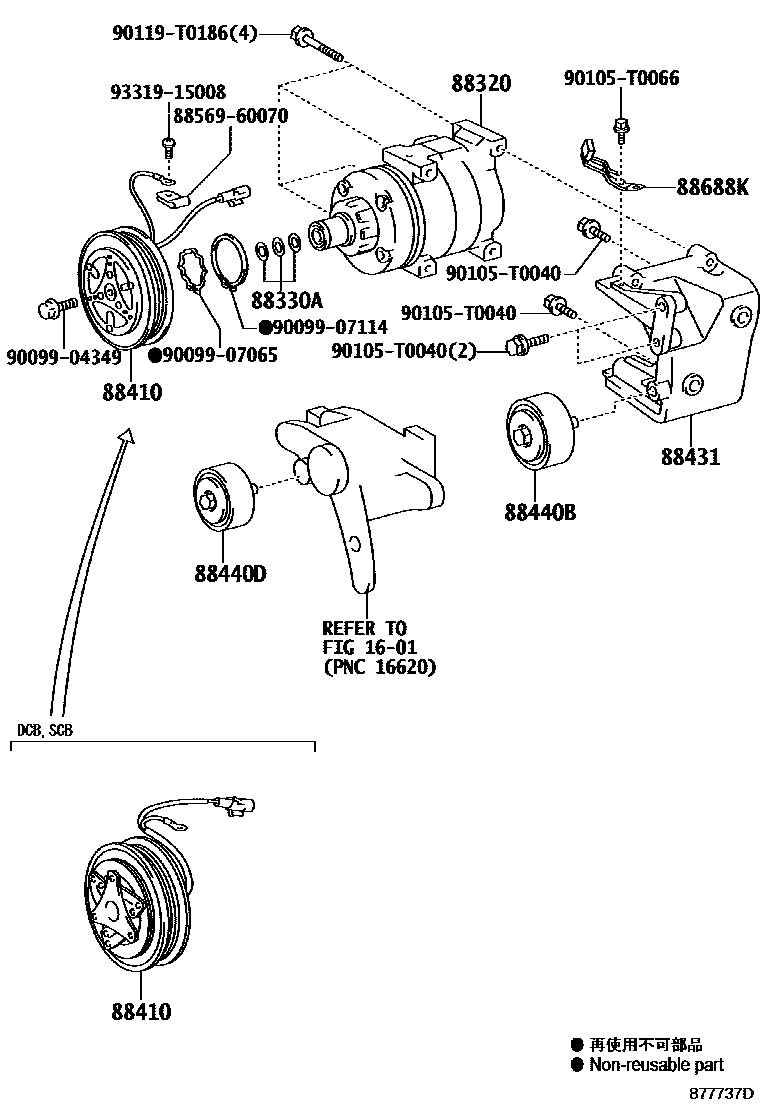

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1601WATER PUMP

→ Go to FIG 16-01

88320COMPRESSOR ASSY, COOLER

main88320-0K080iKUN15,25..THDCB,THSCB,XTR; KUN26..THDCB200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; AIR CONDITIONER-SINGLE AIR CONDITIONER

main88320-71110iKUN15,25..THDCB,THSCB,XTR200507-200712

AIR CONDITIONER(DEALER OPTION)

88330AWASHER (FOR MAGNET CLUTCH)

main88335-30420iKUN15,2#..THDCB,THSCB,XTR200507-200808

SINGLE AIR CONDITIONER

88410CLUTCH ASSY, MAGNET

main88410-0K080iKUN15,2#..THDCB,THSCB,XTR200507-200801

SINGLE AIR CONDITIONER

main88410-0K390iKUN15,2#..THDCB,THSCB,XTR200801-200804

SINGLE AIR CONDITIONER

main88410-0K460iKUN15,25..THDCB,THSCB,XTR; KUN26..THDCB200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; AIR CONDITIONER-SINGLE AIR CONDITIONER

main88410-71050iKUN15,25..THDCB,THSCB,XTR200507-200712

AIR CONDITIONER(DEALER OPTION)

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0K020iKUN15,2#..THDCB,THSCB,XTR200507-200808

SINGLE AIR CONDITIONER

main88431-0K060iKUN25..DCB..SR201010-201108

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

88440BPULLEY ASSY, IDLE

main88440-0K060iKUN15,25..THDCB,THSCB,XTR; KUN26..THDCB200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; AIR CONDITIONER-SINGLE AIR CONDITIONER

main88440-0K250iKUN15,2#..DCB,SCB; KUN26..DCB200810-201108

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; AIR CONDITIONER-SINGLE AIR CONDITIONER

88440DPULLEY ASSY, IDLE NO.2

main88440-0K010iKUN15,2#..THDCB,THSCB,XTR200507-200808

SINGLE AIR CONDITIONER

main88440-0K030iKUN15,2#..DCB,SCB200507-200810

SINGLE AIR CONDITIONER

88688KBRACKET, COOLER COMPRESSOR

main88688-0K100iKUN15,25..THDCB,THSCB,XTR; KUN26..THDCB200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; AIR CONDITIONER-SINGLE AIR CONDITIONER

main88688-0K140iKUN15,2#..DCB,SCB200507-200810

SINGLE AIR CONDITIONER

8856960070CLAMP (FOR COOLER RELAY)

main88569-60070

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

90105T0040

main90105-T0040

90105T0066

main90105-T0066

90119T0186

main90119-T0186

9331915008

main93319-15008

16 parts on this diagram · 3 diagrams in section
