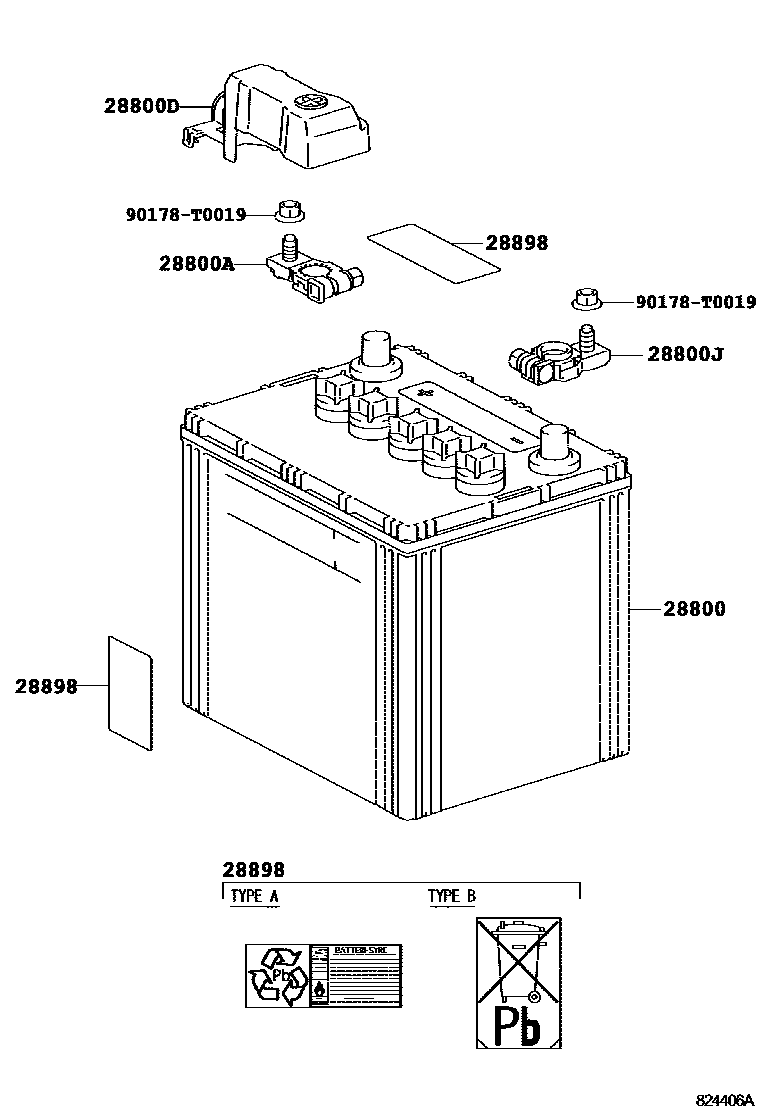

BATTERY & BATTERY CABLE
28800BATTERY
main28800-0L010i2KDFTV..KUN15,25..RHD..(THDCB,THSCB,XTR); 2KDFTV..KUN15,25..THDCB,THSCB,XTR200808-201107
80D26L,COLD AREA SPEC,GS; 80D26L,GS
105D31L,GS
main28800-0L120i2KDFTV..KUN15,25..THDCB,THSCB,XTR; 2KDFTV..KUN15..LHD..XTR..DCR;2KDFTV..KUN15,25..RHD..(THDCB,THSCB,XTR)200507-200808
80D26L,COLD AREA SPEC,YUASA; 80D26L,YUASA
105D31L,FURUKAWA
main28800-0L360i2KDFTV..KUN15,25..RHD..(THDCB,THSCB,XTR); 2KDFTV..KUN15,25..THDCB,THSCB,XTR200903-201107
80D26L,COLD AREA SPEC,PANASONIC; 80D26L,PANASONIC
80D26R,COLD AREA SPEC,SUB
80D26R,COLD AREA SPEC,PANASONIC
28800ATERMINAL, BATTERY POSITIVE
main90982-05056i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200810
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
main82821-0K030i2KDFTV..KUN25..DCB,SCB,XTR;1KDFTV,2KDFTV..KUN15,26..(DCB,SCB)..5F;1KDFTV,2KDFTV..KUN2#..LHD..(THDCB,THSCB)200808-201108
28800JTERMINAL, BATTERY NEGATIVE
28898PLATE, BATTERY
main28898-0L010i2KDFTV..KUN15..LHD..XTR;1KDFTV..KUN26..DCB..4FC;1KDFTV,2KDFTV..KUN2#..5F;2KDFTV..KUN15..DCB,SCB,THDCB,THSCB; 2KDFTV..KUN25;2KDFTV..KUN15..LHD..XTR;2KDFTV..KUN15..DCB,SCB,THDCB,THSCB200708-200810
COLD AREA SPEC,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
main28898-46020i2KDFTV..KUN15,25..LHD..(DCB,SCB)..5F; 2KDFTV..KUN15..(DCB,SCB)..DCR; 2KDFTV..KUN15..DCB,SCB200507-200610
COLD AREA SPEC,TYPE B:REFER ILLUST.; NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&COLD AREA SPEC,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&COLD AREA SPEC,TYPE A:REFER ILLUST.; NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND,TYPE A:REFER ILLUST.
90178T0019
main90178-T0019
6 parts on this diagram · 3 diagrams in section
