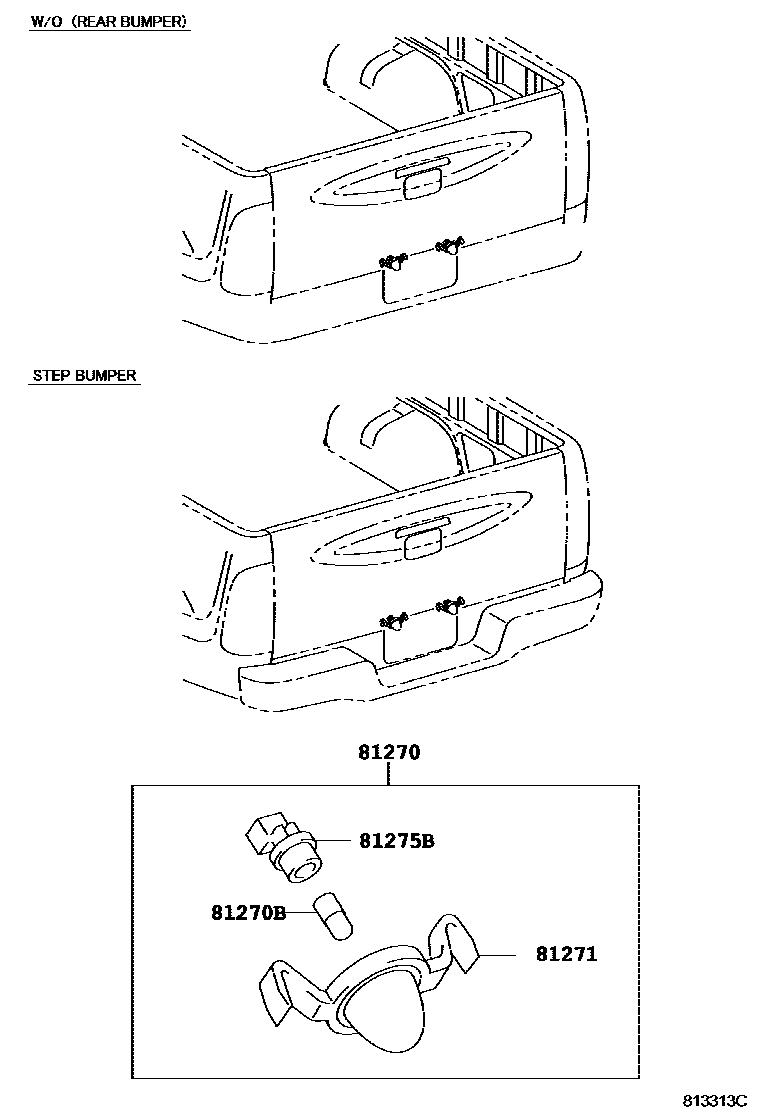

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-04040×2supersedes 81270-0K010i200808-201107

REAR BUMPER-WITHOUT

main81270-0K010×2supersedes 81270-04040i200507-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED; REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main81270-71011×2i200507-200810

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2i200507-200810

12V 10W

main99132-12050×2i200507-200810

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-04040×2i200507-200810

main81271-25040×2i200507-200810

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90075-99012×2i200507-200810

4 parts on this diagram · 3 diagrams in section
