SEAT BELT
73210BELT ASSY, FRONT SEAT OUTER, RH
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITHOUT,GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITHOUT,GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITHOUT,GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
73219STOPPER, TONGUE PLATE
main73219-33010iKUN25..DCB,SCB,XTR;KUN26..LHD..DCB..5FC;KUN15,26..(DCB,SCB)..5F;KUN2#..LHD..(THDCB,THSCB)200808-201108
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
main73220-0K100-B0supersedes 73220-0K110-B0iKUN15,2#..LHD..(DCB,THDCB)..(4FC,5F); KUN2#..RHD..(DCB,THDCB)..(4FC,5F)200507-200810
GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main73220-0K101-B0iKUN25..THDCB..SR;KUN26..LHD..THDCB;KUN15,25..LHD..THDCB..DLX; KUN26..RHD..THDCB201107-201107
GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
main73210-0K010-B0supersedes 73210-0K350-B0iKUN15,25..RHD..THSCB; KUN15..LHD..THSCB..CBU200702-200808
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITHOUT,GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITHOUT,GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITHOUT,GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
SRS AIR BAG-WITHOUT,GRAY,TRIM1#
SRS AIR BAG-WITHOUT,GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
SRS AIR BAG-WITHOUT,GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
GRAY,TRIM1#
GRAY,TRIM1#
main73230-0K030-B0iKUN15,25..LHD..(SCB,THSCB); KUN25..LHD..(DCB,THDCB)..SR; KUN25..LHD..XTR;KUN15..DCB,THDCB,XTR;KUN25..LHD..(DCB,THDCB)..DLX; KUN26..LHD..(5F,5FC)200808-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
main73230-0K410-B0iKUN15,25..LHD..SCB..HDCR; KUN26..LHD..DCB;KUN15,25..LHD..DCB..5F..HDCR200510-200810
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#
SRS AIR BAG-WITHOUT,GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-0K010-B0supersedes 73240-0K110-B0iKUN15,25..RHD..THSCB; KUN26..RHD..THDCB;KUN25..RHD..(THDCB,XTR)..DLX200808-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#
GRAY,TRIM1#
main73230-0K030-B0iKUN15,25..RHD..(SCB,THSCB); KUN25..RHD..(DCB,THDCB,XTR)..DLX; KUN25..RHD..SR; KUN26..RHD..(5F,5FC)200808-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#
GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITHOUT,GRAY,TRIM1#; SRS AIR BAG-WITHOUT,GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105T0063
main90105-T0063
90105T0068
main90105-T0068
90109T0026
main90109-T0026
90109T0036
main90109-T0036
90178T0017
main90178-T0017

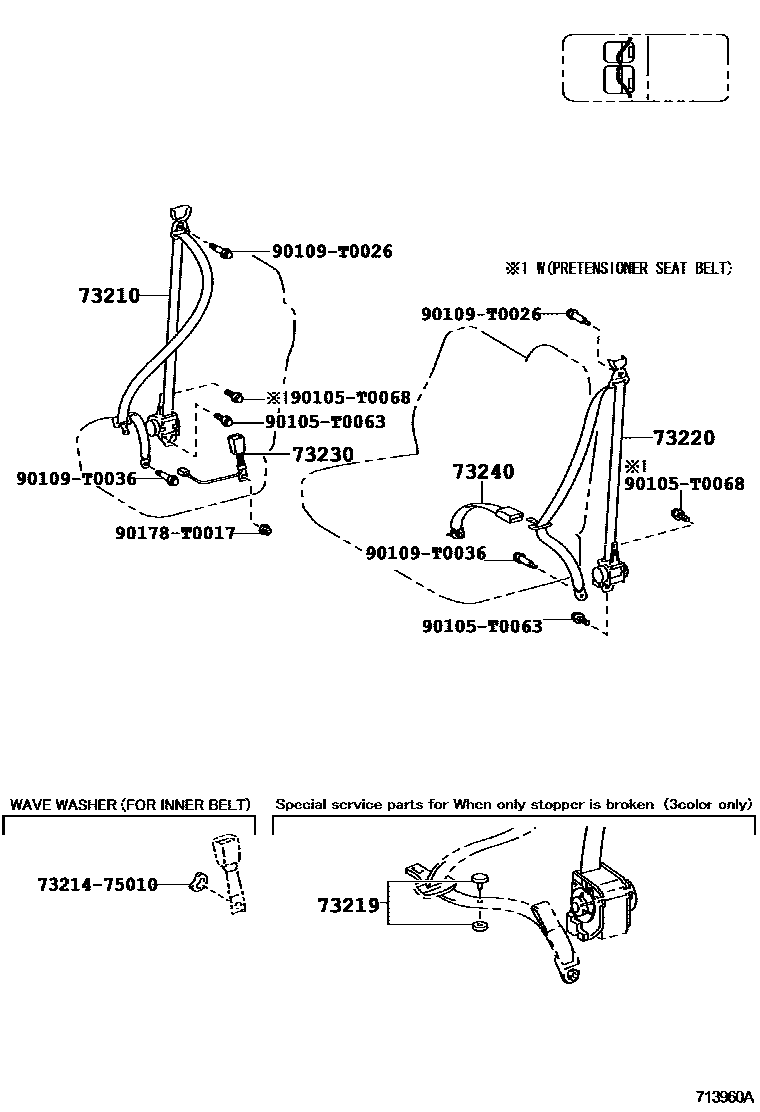

11 parts on this diagram · 5 diagrams in section
