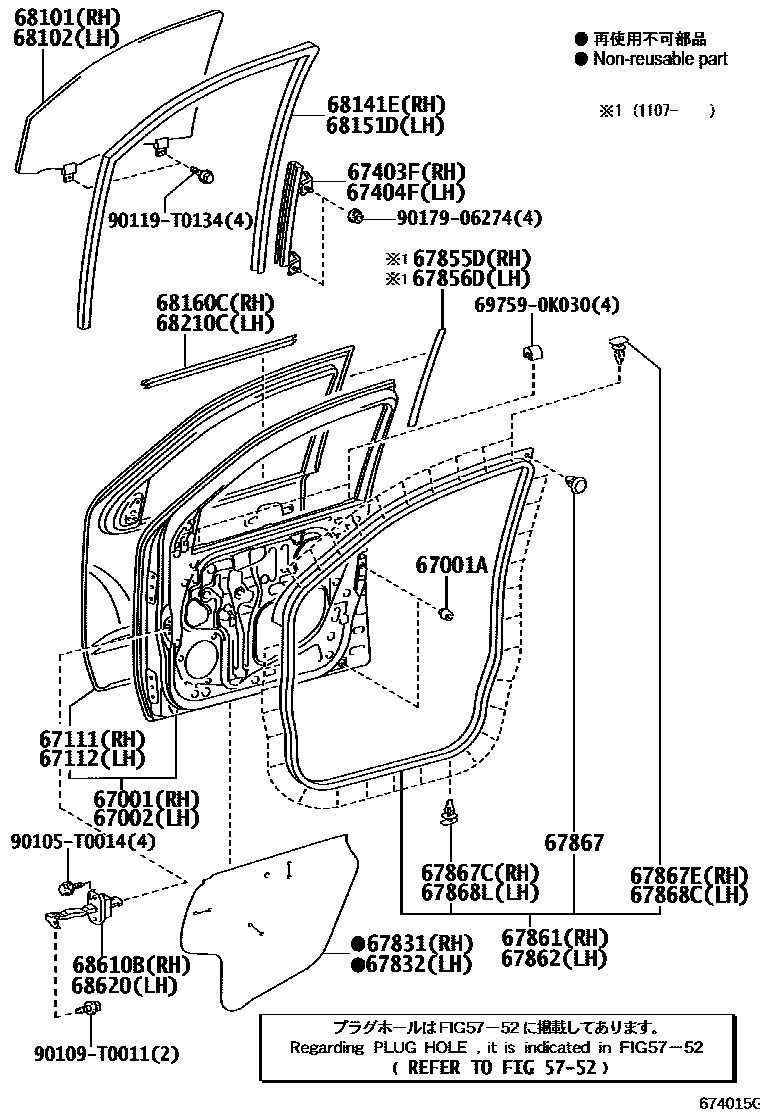

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0K010iKUN15,2#..THDCB200808-201107

main67001-0K020iKUN15,25..THSCB,XTR200507-200808

main67001-0K060iKUN15,2#..DCB200810-201108

main67001-0K080iKUN15,25..SCB200810-201108

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×4iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200808-201107

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0K010iKUN15,2#..THDCB200808-201107

main67002-0K020iKUN15,25..THSCB,XTR200808-201107

main67002-0K060iKUN15,2#..DCB200810-201108

main67002-0K080iKUN25..SCB;KUN15..RHD..SCB..HDCR200507-200809

67111PANEL, FRONT DOOR, OUTER RH

main67111-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

main67111-0K020iKUN15..RHD..DCR;KUN25..THSCB,XTR;KUN15..LHD..(SCB,THSCB,XTR);KUN15..RHD..(THSCB,XTR)..HDCR200507-200810

67112PANEL, FRONT DOOR, OUTER LH

main67112-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

main67112-0K020iKUN15..SCB;KUN25..SCB,XTR;KUN25..LHD..THSCB200808-201108

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K010iKUN15,2#..4FC,5F200507-200810

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200808-201107

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K010iKUN15,2#..THDCB200702-200808

main67831-0K020iKUN15,2#..DCB200507-200810

main67831-0K040iKUN15,25..THSCB,XTR200808-201107

main67831-0K060iKUN15,25..SCB200810-201108

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-0K010iKUN15,2#..THDCB200702-200808

main67831-0K020iKUN15,2#..DCB200810-201108

main67831-0K040iKUN15,25..THSCB,XTR200507-200808

main67831-0K060iKUN15,25..SCB200810-201108

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0K050iKUN15,25..SCB201107-201108

main67855-0K060iKUN15,2#..DCB201107-201108

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0K010iKUN15,25..SCB201107-201108

main67856-0K020iKUN15,2#..DCB201107-201108

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K011iKUN15,2#..(DCB,THDCB)..(5F,5FC)200808-200909

main67861-0K013iKUN15,2#..DCB;KUN2#..LHD..THDCB200910-201108

main67861-0K021iKUN15,25..SCB,THSCB,XTR200507-200810

main67861-0K023iKUN15..THSCB,XTR;KUN25..RHD..THSCB200910-201107

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K011iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

main67862-0K013iKUN15..THDCB;KUN2#..RHD..THDCB200910-201107

main67862-0K021iKUN15,25..SCB,THSCB,XTR200808-200909

main67862-0K023iKUN15..THSCB,XTR;KUN25..RHD..THSCB200910-201107

67867CLIP, DOOR WEATHERSTRIP

main90467-06084×2iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200808-201108

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×23iKUN15..THDCB;KUN2#..RHD..THDCB; KUN15..THSCB,XTR;KUN25..RHD..THSCB200808-201107

67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH

main67867-52020×12iKUN15,25..SCB,THSCB,XTR200507-200810

main67867-52040×10iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×22iKUN15..THSCB,XTR;KUN25..RHD..THSCB200808-201107

main67867-52010×10iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×23iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

main67867-52030×12iKUN15,25..SCB,THSCB,XTR200507-200810

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K010iKUN15,2#..THDCB200702-200712

*TT,T=3.5,GREEN

main68101-0K020iKUN15,2#..DCB200810-201105

*TT,T=3.5,GREEN

main68101-0K021iKUN15,2#..DCB201106-201108

*TT,T=3.5,GREEN

main68101-0K040iKUN15,25..THSCB,XTR200507-200804

*TT,T=3.5,GREEN

main68101-0K070iKUN15,25..SCB200810-201105

*TT,T=3.5,GREEN

main68101-0K071iKUN15,25..SCB201106-201108

*TT,T=3.5,GREEN

main68101-0K110iKUN15,2#..THDCB200808-201107

*TT,T=3.5,GREEN

main68101-0K120iKUN15,25..THSCB,XTR200805-200808

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K010iKUN15,2#..THDCB200702-200712

*TT,T=3.5,GREEN

main68102-0K020iKUN15,2#..DCB200810-201105

*TT,T=3.5,GREEN

main68102-0K021iKUN15,2#..DCB201106-201108

*TT,T=3.5,GREEN

main68102-0K040iKUN15,25..THSCB,XTR200507-200804

*TT,T=3.5,GREEN

main68102-0K070iKUN15,25..SCB200507-200810

*TT,T=3.5,GREEN

main68102-0K071iKUN15,25..SCB201106-201108

*TT,T=3.5,GREEN

main68102-0K110iKUN15,2#..THDCB200801-200808

*TT,T=3.5,GREEN

main68102-0K120iKUN15,25..THSCB,XTR200805-200808

*TEM,T=3.5,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

main68141-0K020iKUN15..THSCB,XTR;KUN25..RHD..THSCB200808-201107

68151DRUN, FRONT DOOR GLASS, LH

main68151-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

main68151-0K020iKUN15..THSCB,XTR;KUN25..RHD..THSCB200808-201107

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

main68161-0K020iKUN15,25..SCB,THSCB,XTR200507-200810

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

main68162-0K020iKUN15..SCB;KUN25..SCB,XTR;KUN25..LHD..THSCB200808-201108

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K010iKUN25..THSCB,XTR;KUN15,26..THDCB,THSCB,XTR200507-200808

main68610-0K020iKUN15,2#..DCB,SCB200507-200810

68620CHECK ASSY, FRONT DOOR, LH

main68620-0K010iKUN25..THSCB,XTR;KUN15,26..THDCB,THSCB,XTR200507-200808

main68620-0K020iKUN15,2#..DCB,SCB200810-201108

697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-0K030

90105T0014

main90105-T0014

90109T0011

main90109-T0011

90119T0134

main90119-T0134

9017906274

main90179-06274

32 parts on this diagram · 3 diagrams in section
