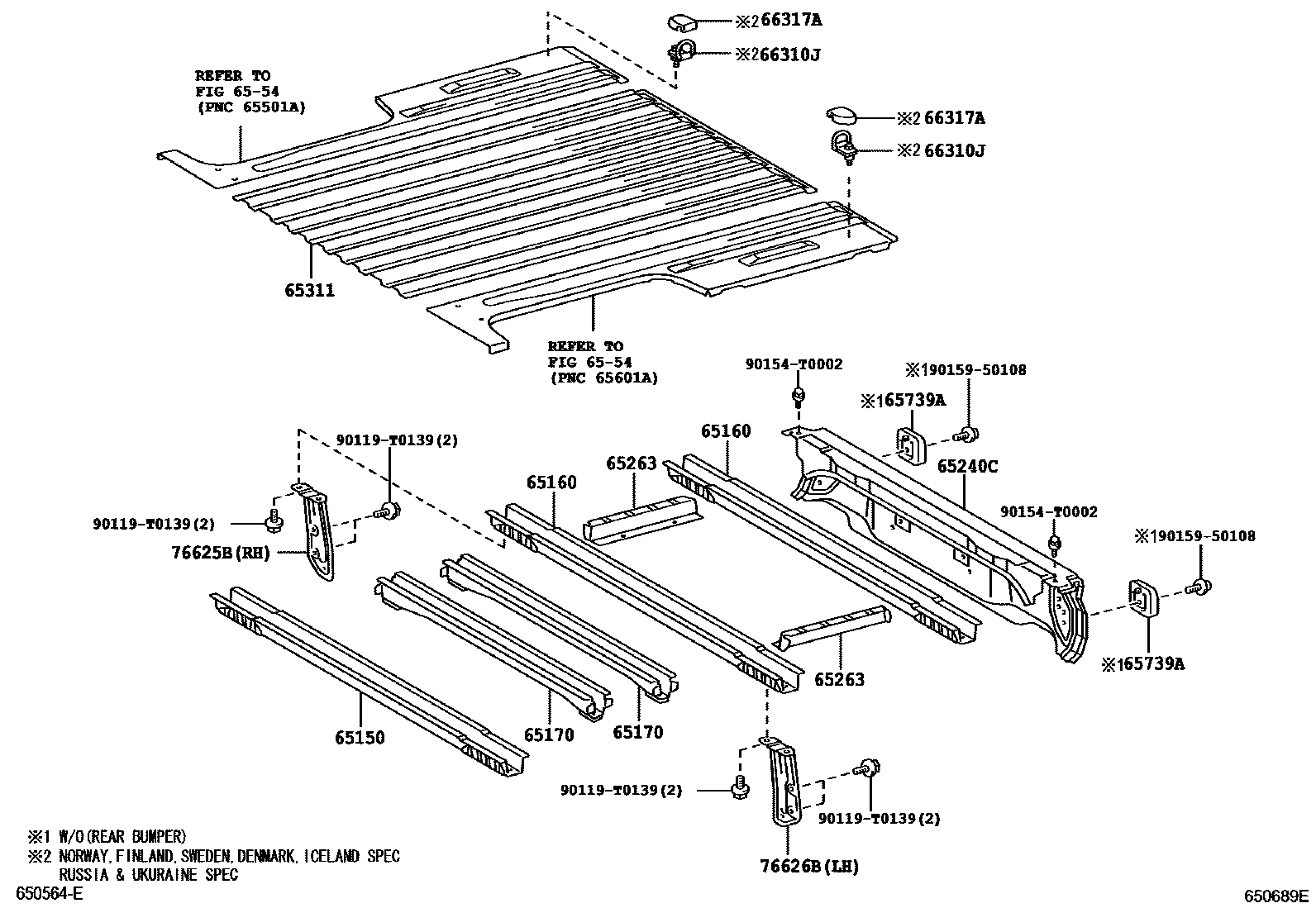

REAR BODY FLOOR & FENDER
65150SILL ASSY, CROSS, NO.1
65160SILL ASSY, CROSS, NO.2
65170SILL ASSY, CROSS, NO.2
65240CSILL ASSY, CROSS, NO.9
main65240-0K020supersedes 65240-0K050iKUN15,26..(4FC,5F)..CBU; KUN25..(SCB,THSCB,XTR)..DLX..CBU;KUN25..LHD..(DCB,THDCB)..DLX..CBU; KUN25..CBU200507-200810
REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED; REAR BUMPER-STEEL, FLAT TYPE, PAINTED
REAR BUMPER-WITHOUT
main65240-0K010iKUN15,26..LHD..(DCB,SCB,THDCB,THSCB)..(4FC,5F)..CBU; KUN25..LHD..(DCB,THDCB)..SR;KUN25..LHD..(SCB,THSCB)..CBU; KUN25..LHD..(SCB,THSCB)..CBU200507-200810
TAIL GATE-WITHOUT; TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED; TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, PAINTED
TAIL GATE-WITHOUT; TAIL GATE-WITHOUT&REAR BUMPER-WITHOUT
65263REINFORCEMENT, FLOOR SIDE FRAME
65311PANEL, FLOOR, CENTER
6554REAR BODY SIDE PANEL
65739ABUMPER, TAIL GATE
LH
RH
66310JHOOK ASSY, ROPE
main66310-0K010×4iKUN15,25..LHD..(DCB,THDCB)..5F..CBU; KUN15,25..LHD..(SCB,THSCB,XTR)..CBU200507-200810
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND
66317ACOVER, ROPE HOOK
main66317-0K010×4iKUN15,25..LHD..(DCB,THDCB)..5F..CBU; KUN15,25..LHD..(SCB,THSCB,XTR)..CBU200507-200810
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND
76625BMUDGUARD, REAR BODY, RH
76626BMUDGUARD, REAR BODY, LH
90119T0139
main90119-T0139
90154T0002
main90154-T0002
9015950108
main90159-50108
15 parts on this diagram · 3 diagrams in section
