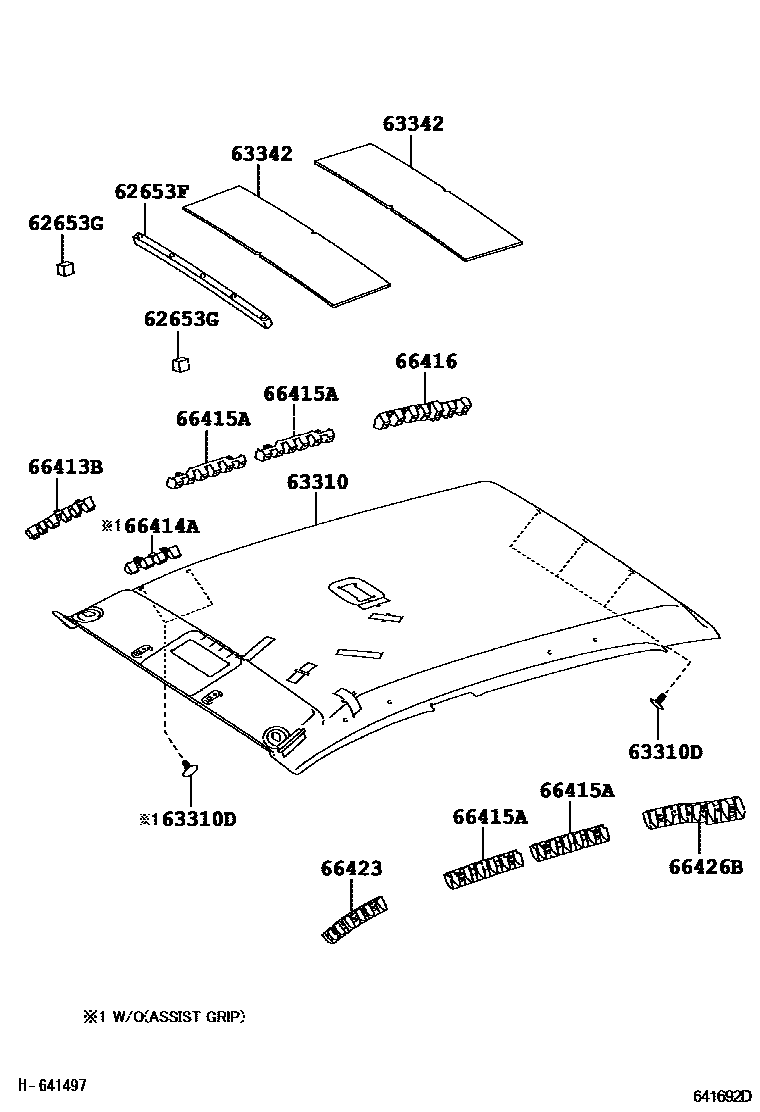

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

62653FPACKING (FOR ROOF HEADLINING)

main62653-0K080iKUN15,2#..THDCB,XTR200507-200808

62653GPACKING,(FOR ROOF HEADLINING)

main62653-0K210×2iKUN2#..THDCB..SR200808-201107

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

63310HEADLINING ASSY, ROOF

main63310-0K050-B0iKUN15,25..SCB200507-200801

LT. GRAY,TRIM1#

main63310-0K051-B0iKUN15,25..SCB200810-201108

LT. GRAY,TRIM1#

main63310-0K210-B0iKUN15,2#..DCB200507-200801

LT. GRAY,TRIM1#

main63310-0K211-B0iKUN15,2#..DCB200810-201108

LT. GRAY,TRIM1#

main63310-0K270-B0iKUN15,25..XTR200808-201107

LT. GRAY,TRIM1#

main63310-0K300-B0iKUN15,2#..THDCB200702-200801

LT. GRAY,TRIM1#

main63310-0K301-B0iKUN15,2#..THDCB200808-201107

LT. GRAY,TRIM1#

main63310-0K310-B0iKUN15,25..THSCB200808-201107

LT. GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-T0004-A0×5iKUN15,25..(DCB,XTR)..SR200507-200810

IVORY,TRIM0#

main90467-T0004-B0×5iKUN15,25..(DCB,THDCB)..DLX; KUN15,25..SCB,THSCB,XTR;KUN2#..(DCB,THDCB)..(5F,5FC)..SR; KUN2#..(DCB,THDCB)..(5F,5FC)..SR200808-201108

LT.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),LT.GRAY,TRIM1#

63342PAD, ROOF SILENCER, NO.2

main63342-0K010iKUN15,25..THSCB,XTR200507-200808

main63342-0K020iKUN15,2#..DCB; KUN15,25..SCB200507-200810

main63342-0K090iKUN15,2#..DCB; KUN15,25..SCB200810-201108

NO.2

main63342-0K160iKUN15,2#..THDCB; KUN15,25..THSCB,XTR200904-201107

NO.2

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0K010iKUN15,2#..THDCB,THSCB,XTR200808-201107

main66413-0K020iKUN15,2#..DCB,SCB200507-200810

66414ASPACER, SIDE RAIL, REAR RH

main66414-0K010iKUN15,25..THDCB..DLX; KUN2#..THDCB..SR;KUN15,25..THSCB,XTR200808-201107

main66414-0K020×3iKUN15,25..DCB..DLX; KUN15,25..SCB;KUN15,2#..DCB..SR200507-200810

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-0K010×4iKUN15,2#..THDCB200702-200708

main66415-0K011×4iKUN15,2#..THDCB; KUN15,25..XTR200808-201107

main66415-0K020×4iKUN15,2#..DCB200507-200709

main66415-0K021×4iKUN15,2#..DCB200810-201108

main66415-0K040iKUN15,25..THSCB200702-200808

main66415-0K050iKUN15,25..SCB200507-200810

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-0K010iKUN15,2#..THDCB200702-200708

main66416-0K011iKUN15,2#..THDCB200808-201107

main66416-0K020iKUN15,2#..DCB200507-200804

main66416-0K021iKUN15,2#..DCB200805-200810

main66416-0K040iKUN15,25..XTR200808-201107

66423SPACER, SIDE RAIL, FRONT LH

main66423-0K010iKUN15,2#..THDCB,THSCB,XTR200507-200808

main66423-0K020iKUN15,2#..DCB,SCB200810-201108

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-0K010iKUN15,2#..THDCB200702-200708

main66426-0K011iKUN15,2#..THDCB200808-201107

main66426-0K020iKUN15,2#..DCB200507-200804

main66426-0K021iKUN15,2#..DCB200810-201108

main66426-0K040iKUN15,25..XTR200808-201107

11 parts on this diagram · 3 diagrams in section
