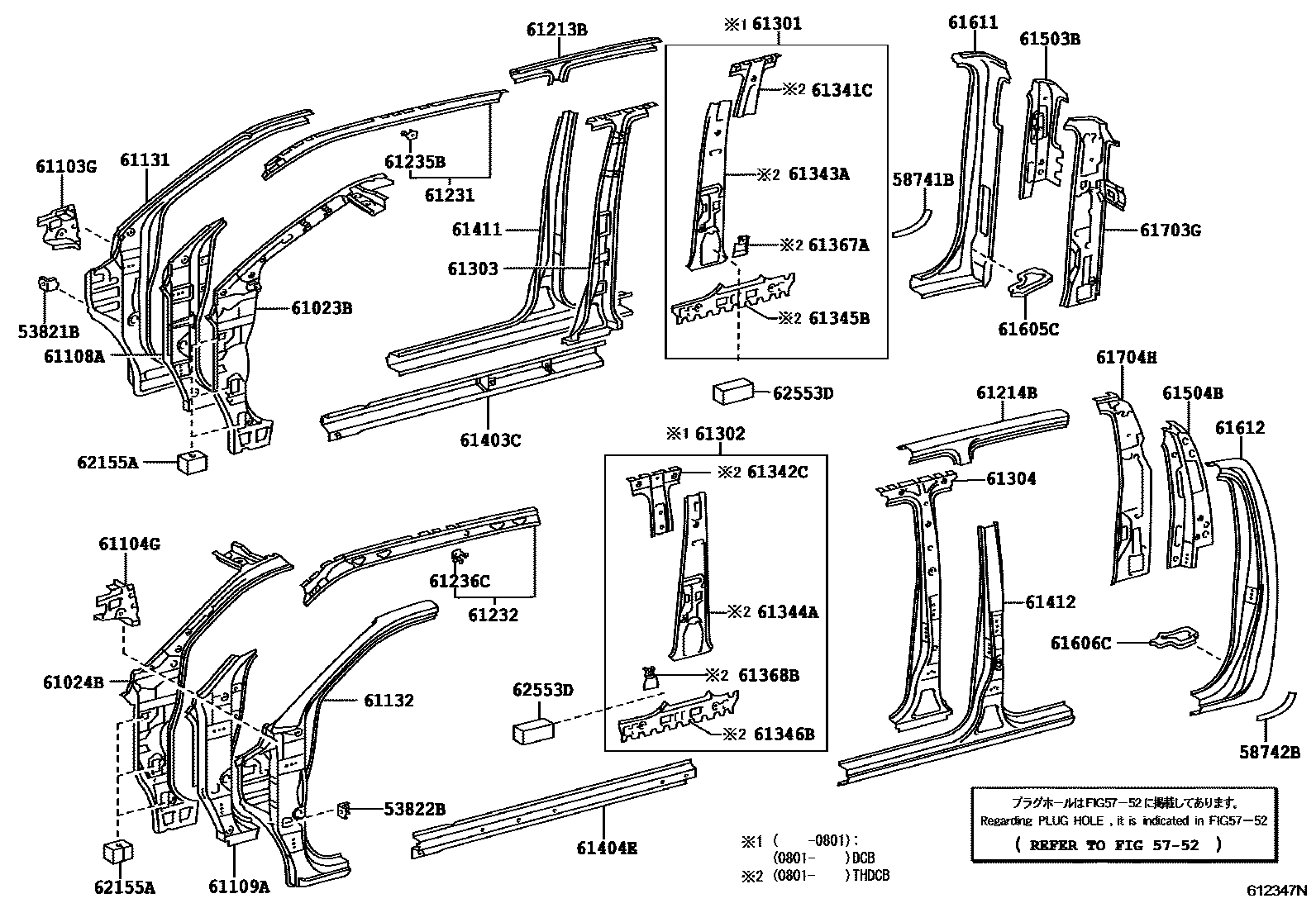

SIDE MEMBER

0001 1 0002 1 0003 1

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200808-201108

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iKUN15,2#..4FC,5F200507-200810

5752HOLE PLUG

→ Go to FIG 57-52

58741BPROTECTOR, QUARTER PANEL, RH

main58741-0K050iKUN15..THDCB;KUN25..RHD..THDCB; KUN26..RHD..THDCB200808-201107

STEP & STEP COVER-WITHOUT

main58741-0K060iKUN15..(SCB,XTR)..DCR200604-200810

58742BPROTECTOR, QUARTER PANEL, LH

main58742-0K040iKUN15..THDCB;KUN25..RHD..THDCB; KUN26..RHD..THDCB200808-201107

STEP & STEP COVER-WITHOUT

main58742-0K050iKUN15..(SCB,XTR)..DCR200604-200810

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0K010iKUN15200507-200709

main61023-0K011iKUN15200710-200810

main61023-0K020iKUN2#200507-200710

main61023-0K081iKUN15200808-201108

main61023-0K091iKUN2#..5F,5FC200808-201108

main61023-0K130iKUN2#..4FC,5F200710-200810

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0K010iKUN15200507-200709

main61024-0K011iKUN15200710-200810

main61024-0K020iKUN2#200507-200710

main61024-0K091iKUN15200808-201009

main61024-0K092iKUN15201010-201108

main61024-0K101iKUN2#..5F,5FC200808-201009

main61024-0K102iKUN2#201010-201108

main61024-0K130iKUN2#..4FC,5F200710-200810

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-0K010iKUN15,2#..4FC,5F200507-200810

61104GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61104-0K010iKUN15,2#..4FC,5F200507-200810

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200808-201107

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0K010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200808-201108

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K010iKUN2#..RHD..(DCB,THDCB)..(4FC,5F)200507-200810

main61131-0K020iKUN15..DCB;KUN2#..LHD..(DCB,THDCB)..(5F,5FC)200808-201108

main61131-0K030iKUN15,25..RHD..(SCB,THSCB,XTR)200507-200810

main61131-0K040iKUN15,25..LHD..(SCB,THSCB,XTR)200507-200810

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0K010iKUN2#..RHD..(DCB,THDCB)..(4FC,5F)200507-200810

main61132-0K020iKUN15,2#..LHD..(DCB,THDCB)..(4FC,5F)200507-200810

main61132-0K030iKUN15,25..RHD..THSCB200808-201107

main61132-0K040iKUN15..LHD..SCB;KUN25..LHD..(SCB,THSCB,XTR)200808-201108

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200808-201108

61231RAIL, ROOF SIDE, INNER RH

main61210-0K020iKUN15,25..SCB,THSCB,XTR200507-200810

main61210-0K021iKUN15,25..SCB201011-201108

main61210-0K050iKUN15,25..THSCB,XTR201011-201107

main61231-0K901iKUN15,2#..DCB,THDCB200507-200710

main61231-0K903iKUN15,2#..(DCB,THDCB)..(4FC,5F)200710-200810

61232RAIL, ROOF SIDE, INNER LH

main61220-0K020iKUN15,25..SCB,THSCB,XTR200507-200810

main61220-0K021iKUN15,25..SCB201011-201108

main61220-0K060iKUN15,25..THSCB,XTR201011-201107

main61232-0K901iKUN15,2#..DCB,THDCB200507-200710

main61232-0K903iKUN15,2#..(DCB,THDCB)..(4FC,5F)200710-200810

main61232-0K904iKUN15,2#..DCB,THDCB201012-201108

61235BBRACKET, ASSIST GRIP

main61235-0K010×4iKUN15,2#..(DCB,THDCB)..(5F,5FC)200808-201012

61236CBRACKET, ASSIST GRIP

main61235-0K010×4iKUN15,2#..DCB,THDCB200507-200710

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-0K901iKUN15,2#..DCB,THDCB200507-200710

main61301-0K903iKUN15,2#..DCB,THDCB200710-200801

main61301-0K904iKUN15,2#..DCB200801-200810

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-0K070iKUN15,25..XTR200507-200808

main61302-0K071iKUN15,25..XTR201102-201107

main61302-0K901iKUN15,2#..DCB,THDCB200507-200710

main61302-0K903iKUN15,2#..DCB,THDCB200710-200801

main61302-0K904iKUN15,2#..DCB200801-200810

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-0K010iKUN15,2#..DCB,THDCB200507-200709

main61303-0K020iKUN15,25..SCB;KUN25..LHD..THSCB200808-201108

main61303-0K030iKUN15,25..XTR200808-201009

main61303-0K031iKUN15,25..XTR201010-201107

main61303-0K060iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200808-201108

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-0K010iKUN15,2#..DCB,THDCB200507-200709

main61304-0K020iKUN15,25..SCB,THSCB200507-200810

main61304-0K030iKUN15,25..XTR200808-201009

main61304-0K031iKUN15,25..XTR201010-201107

main61304-0K060iKUN15,2#..(DCB,THDCB)..(4FC,5F)200710-200810

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-0K010iKUN15,2#..DCB,THDCB200709-200710

main61341-0K040iKUN15,2#..DCB200710-200801

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-0K010iKUN15,2#..DCB,THDCB200709-200710

main61342-0K040iKUN15,2#..DCB200710-200801

61343APILLAR, CENTER BODY, INNER RH

main61343-0K010iKUN15,2#..DCB,THDCB200709-200710

main61343-0K040iKUN15,2#..DCB,THDCB200710-200712

main61343-0K041iKUN15,2#..THDCB200801-200808

61344APILLAR, CENTER BODY, INNER LH

main61344-0K010iKUN15,2#..DCB,THDCB200709-200710

main61344-0K040iKUN15,2#..DCB,THDCB200710-200712

main61344-0K041iKUN15,2#..THDCB200808-201107

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-0K010iKUN15,2#..DCB200709-200801

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-0K010iKUN15,2#..DCB200709-200801

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-0K010iKUN15,2#..DCB200709-200801

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-0K010iKUN15,2#..DCB200709-200801

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

61411PANEL, ROCKER, OUTER RH

main61411-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

61412PANEL, ROCKER, OUTER LH

main61412-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200808-201108

main61503-0K020iKUN15,25..XTR200808-201009

main61503-0K021iKUN15,25..XTR201010-201102

main61503-0K022iKUN15,25..XTR201103-201107

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200808-201108

main61504-0K020iKUN15,25..XTR200507-200808

main61504-0K021iKUN15,25..XTR201010-201102

main61504-0K022iKUN15,25..XTR201103-201107

61605CPANEL SUB-ASSY, QUATER, REAR INNER RH

main61567-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

61606CPANEL SUB-ASSY, QUATER, REAR INNER LH

main61568-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

61611PANEL, QUARTER, RH

main61611-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

main61611-0K020iKUN15..THSCB;KUN25..RHD..THSCB200808-201107

main61611-0K030iKUN15,25..XTR200507-200808

61612PANEL, QUARTER, LH

main61612-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200808-201108

main61612-0K020iKUN15,25..SCB,THSCB200507-200810

main61612-0K030iKUN15,25..XTR200507-200808

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-0K010iKUN15,2#..DCB,THDCB200507-200709

main61703-0K110iKUN15,2#..(DCB,THDCB)..(4FC,5F)200710-200810

main61703-0K111iKUN15,2#..DCB,THDCB201010-201108

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-0K010iKUN15,2#..DCB,THDCB200507-200709

main61704-0K150iKUN15,2#..(DCB,THDCB)..(4FC,5F)200710-200810

main61704-0K151iKUN15,2#..DCB,THDCB201010-201108

62155APAD, COWL SIDE LOWER SILENCER

main62155-0K010×6iKUN15..HDCR;KUN25..LHD..(DCB,THDCB,THSCB);KUN25..RHD..(DCB,THDCB,THSCB,XTR);KUN15,26..(DCB,THDCB)..(4FC,5F)..DCR200507-200810

62553DPAD, PILLAR, NO.3

main62557-0K010×2iKUN15,2#..4FC,5F200507-200810

main62557-0K060×2iKUN2#..RHD..THDCB..SR200808-201107

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

45 parts on this diagram · 3 diagrams in section
