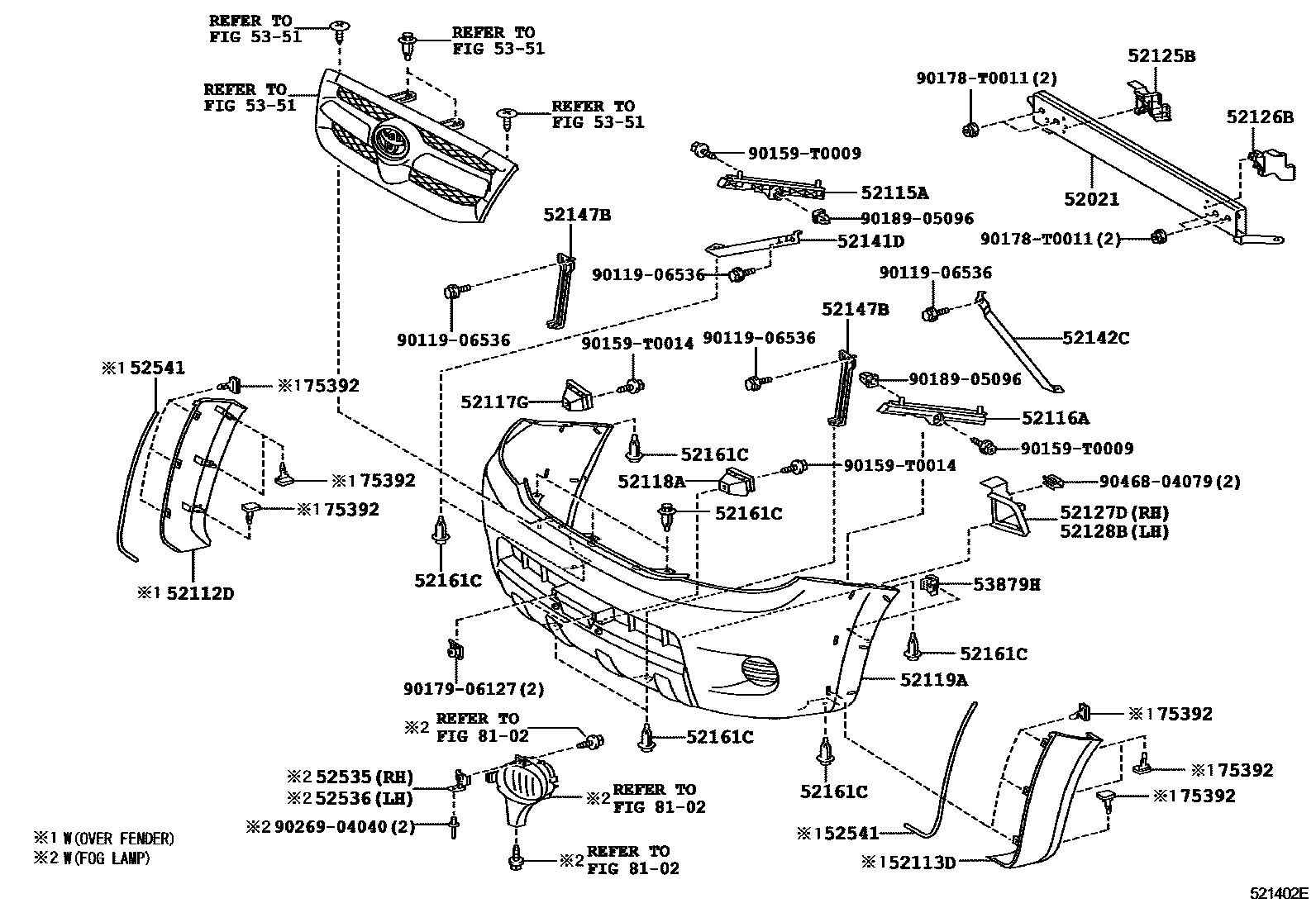

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main52112-0K090supersedes 52112-0K011iKUN25..(DCB,SCB)..DLX; KUN25..DCB..DLX; KUN25..DCB..SR; KUN26..DCB200810-201108
NO PAINT REQ.; NO PAINT REQ.,FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
main52112-0K110iKUN25..(THDCB,THSCB,XTR)..DLX; KUN25..(THDCB,XTR)..DLX; KUN25..(THDCB,XTR)..SR; KUN25..THDCB..DLX; KUN26..THDCB200808-201107
NO PAINT REQ.; NO PAINT REQ.,FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
NO PAINT REQ.; NO PAINT REQ.,FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
main52113-0K070iKUN25..(THDCB,THSCB,XTR)..DLX; KUN25..(THDCB,XTR)..DLX; KUN25..(THDCB,XTR)..SR; KUN25..THDCB..DLX; KUN26..THDCB200808-201107
NO PAINT REQ.; NO PAINT REQ.,FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
52115ASUPPORT, FRONT BUMPER SIDE, RH
FRONT FOG LAMP-WITH
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-0K011iKUN15,26..THDCB,THSCB,XTR;KUN25..(THDCB,THSCB,XTR)..DLX; KUN25..(THDCB,XTR)..SR200808-201107
FRONT FOG LAMP-WITH
FRONT FOG LAMP-WITH
52117GINSERT, FRONT BUMPER EXTENSION, NO.2 RH
52118AINSERT, FRONT BUMPER EXTENSION, NO.2 LH
52119ACOVER, FRONT BUMPER
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-205R16C 6JJ
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-205R16C 6JJ
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
NO PAINT REQ.
PAINT REQ.; PAINT REQ.,TIRE & DISC WHEEL-205R16C 6JJ; PAINT REQ.,TIRE & DISC WHEEL-205R16C 6JJ&FRONT FOG LAMP-WITH
PAINT REQ.; PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
PAINT REQ.; PAINT REQ.,FRONT FOG LAMP-WITH
PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM; PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&FRONT FOG LAMP-WITH; PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52141DSTAY, FRONT BUMPER, RH
52142CSTAY, FRONT BUMPER, LH
52147BBRACKET, FRONT BUMPER MOUNTING
52161CPIECE, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-205R16C 6JJ&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
52536RETAINER, FRONT BUMPER SIDE, LH
FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-205R16C 6JJ&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&FRONT FOG LAMP-WITH
52541PROTECTOR, FRONT BUMPER
GRAY,040 ,1C0; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0
BLACK,209 ,3Q2 ,6S3 ,8P1; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3Q2 ,6S3 ,8P1
5351RADIATOR GRILLE
53879HRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
8102FOG LAMP
9011906536
main90119-06536
90159T0009
main90159-T0009
90159T0014
main90159-T0014
90178T0011
main90178-T0011
9017906127
main90179-06127
9018905096
main90189-05096
9026904040
main90269-04040
9046804079
main90468-04079
31 parts on this diagram · 3 diagrams in section
