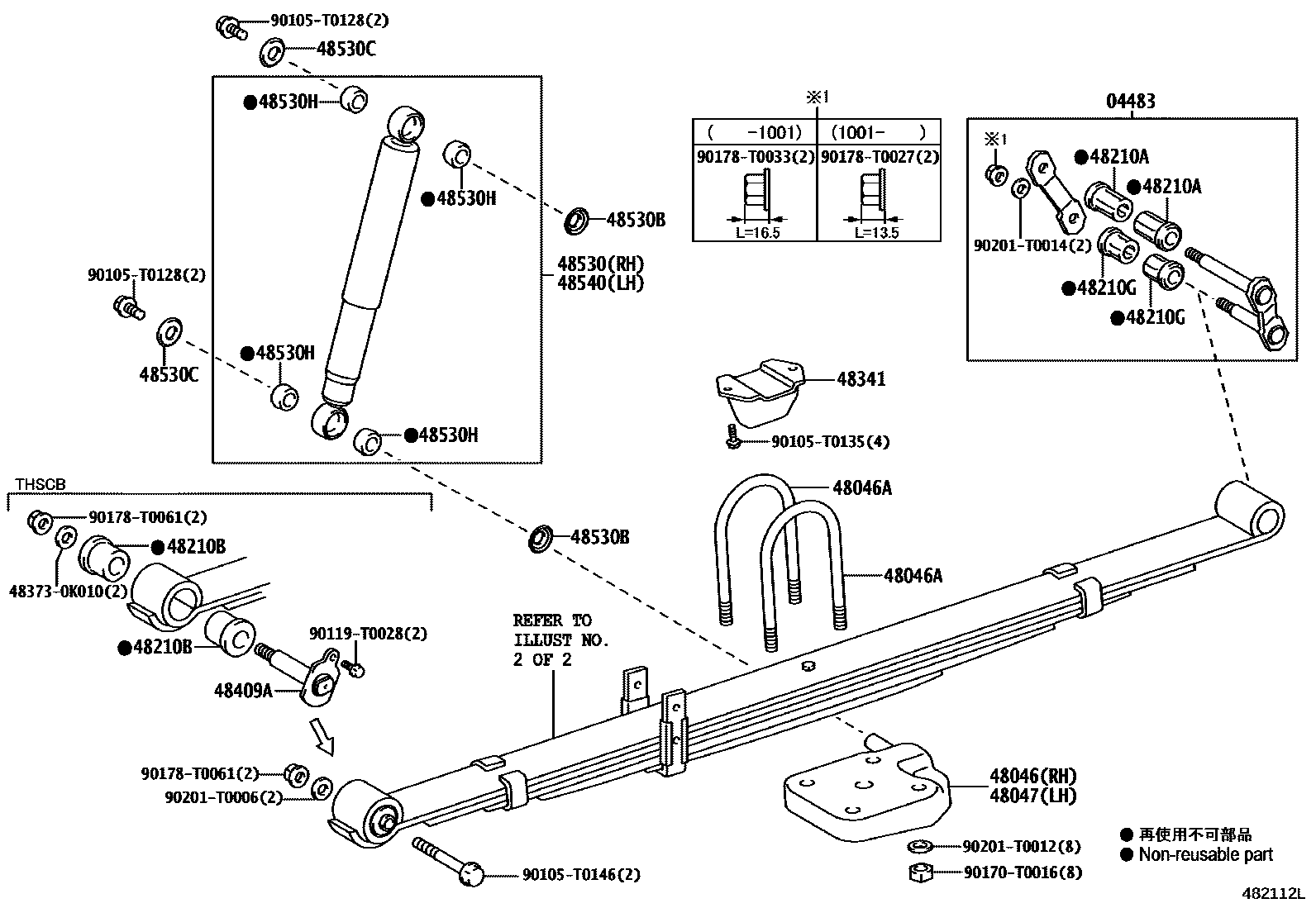

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 15-LEAF 0006 15-LEAF 0007 15-LEAF 0008 15-LEAF 0009 15-LEAF 0010 15-LEAF 0011 15-LEAF

04483SHACKLE KIT, REAR SPRING

main04483-0K022×2iKUN15,25200507-200607

main04483-0K030×2iKUN15,2#..4FC,5F200608-200810

main04483-0K050×2iKUN15,2#201001-201108

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-0K011iKUN15200808

main48046-0K020iKUN2#..4FC,5F200507-200810

48046ABOLT, U(FOR REAR SPRING)

main90117-T0002×4iKUN2#..4FC,5F200507-200810

L=170

main90117-T0003×4iKUN15200808

L=175

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-0K011iKUN15200507-200810

main48046-0K020iKUN2#..4FC,5F200507-200810

48210SPRING ASSY, REAR RH

main48210-0K010iKUN15..THSCB200808-201107

5-LEAF

main48210-0K020iKUN15..XTR200507-200808

5-LEAF

main48210-0K030iKUN15..THDCB200702-200808

5-LEAF

main48210-0K040iKUN15..SCB200810-201108

5-LEAF

main48210-0K050iKUN15..DCB200507-200810

5-LEAF

main48210-0K060iKUN25..THSCB200702-200808

5-LEAF

main48210-0K070iKUN25..XTR200507-200808

5-LEAF

main48210-0K080iKUN2#..THDCB200702-200808

5-LEAF

main48210-0K090iKUN25..SCB200507-200810

5-LEAF

main48210-0K100iKUN2#..DCB200507-200810

5-LEAF

main48210-0K210iKUN25..THSCB200808-201107

5-LEAF

main48210-0K220iKUN25..XTR200808-201107

5-LEAF

main48210-0K231iKUN2#..THDCB200808-201107

5-LEAF

main48210-0K240iKUN25..SCB200810-201108

5-LEAF

main48210-0K251iKUN2#..DCB200810-201108

5-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-T0001×4iKUN15,25200507-200607

main90385-T0009×4iKUN15,2#..4FC,5F200608-200810

48210BBUSH(FOR REAR SPRING PIN)

main90385-T0003×4iKUN15..SCB200507-200602

main90385-T0008×4iKUN15..SCB,THSCB200603-200810

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-T0002×4iKUN15,25200507-200607

main90385-T0010×4iKUN15,2#..4FC,5F200608-200810

48341BUMPER, REAR SPRING

main48341-0K010×2iKUN15..THDCB,THSCB,XTR200507-200808

main48341-0K020×2iKUN15..DCB,SCB200810-201108

48409APIN SUB-ASSY, REAR SPRING BRACKET

main48409-0K010×2iKUN15..SCB,THSCB200507-200810

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09460iKUN25..THSCB200702-200808

MARK 48531-0K100

main48531-09490iKUN2#..THDCB,XTR200507-200808

MARK 48531-0K120

main48531-09515iKUN15..SCB200507-200810

MARK 48531-0K070

main48531-09520iKUN15..DCB200507-200810

MARK 48531-0K080

main48531-09570iKUN15..THDCB,XTR200808-201107

MARK 48531-0K050

main48531-09650iKUN2#..DCB200507-200810

MARK 48531-0K180

main48531-09670iKUN25..SCB200507-200810

MARK 48531-0K160

main48531-09740iKUN15..THSCB200702-200808

MARK 48531-0K010

main48531-0K070iKUN15..SCB200908-201108

MARK 48531-0K070

main48531-0K080iKUN15..DCB200908-201108

MARK 48531-0K080

main48531-0K160iKUN25..SCB200908-201108

MARK 48531-0K160

main48531-0K180iKUN2#..DCB200908-201108

MARK 48531-0K180

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-T3001×4iKUN15,2#..4FC,5F200507-200810

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-T3002×4iKUN15,2#..5F,5FC200808

48530HBUSH, REAR SHOCK ABSORBER

main90385-T0004×8iKUN15,2#..4FC,5F200507-200810

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09460iKUN25..THSCB200702-200808

MARK 48531-0K100

main48531-09490iKUN2#..THDCB,XTR200808-200904

MARK 48531-0K120

main48531-09515iKUN15..SCB200507-200810

MARK 48531-0K070

main48531-09520iKUN15..DCB200507-200810

MARK 48531-0K080

main48531-09570iKUN15..THDCB,XTR200808-201107

MARK 48531-0K050

main48531-09650iKUN2#..DCB200810-200904

MARK 48531-0K180

main48531-09670iKUN25..SCB200810-200904

MARK 48531-0K160

main48531-09740iKUN15..THSCB200702-200808

MARK 48531-0K010

main48531-0K070iKUN15..SCB200908-201108

MARK 48531-0K070

main48531-0K080iKUN15..DCB200908-201108

MARK 48531-0K080

main48541-09100iKUN25..THSCB200904-201107

MARK 48541-0K020

main48541-09130iKUN2#..THDCB,XTR200904-201107

MARK 48541-0K030

main48541-09150iKUN25..SCB200904-200908

MARK 48541-0K060

main48541-09160iKUN2#..DCB200904-200908

MARK 48541-0K070

main48541-0K060iKUN25..SCB200908-201108

MARK 48541-0K060

main48541-0K070iKUN2#..DCB200908-201108

MARK 48541-0K070

483730K010SPACER, REAR SPRING

main48373-0K010

90105T0128

main90105-T0128

90105T0135

main90105-T0135

90105T0146

main90105-T0146

90119T0028

main90119-T0028

90170T0016

main90170-T0016

90178T0027

main90178-T0027

90178T0033

main90178-T0033

90178T0061

main90178-T0061

90201T0006

main90201-T0006

90201T0012

main90201-T0012

90201T0014

main90201-T0014

27 parts on this diagram · 11 diagrams in section
