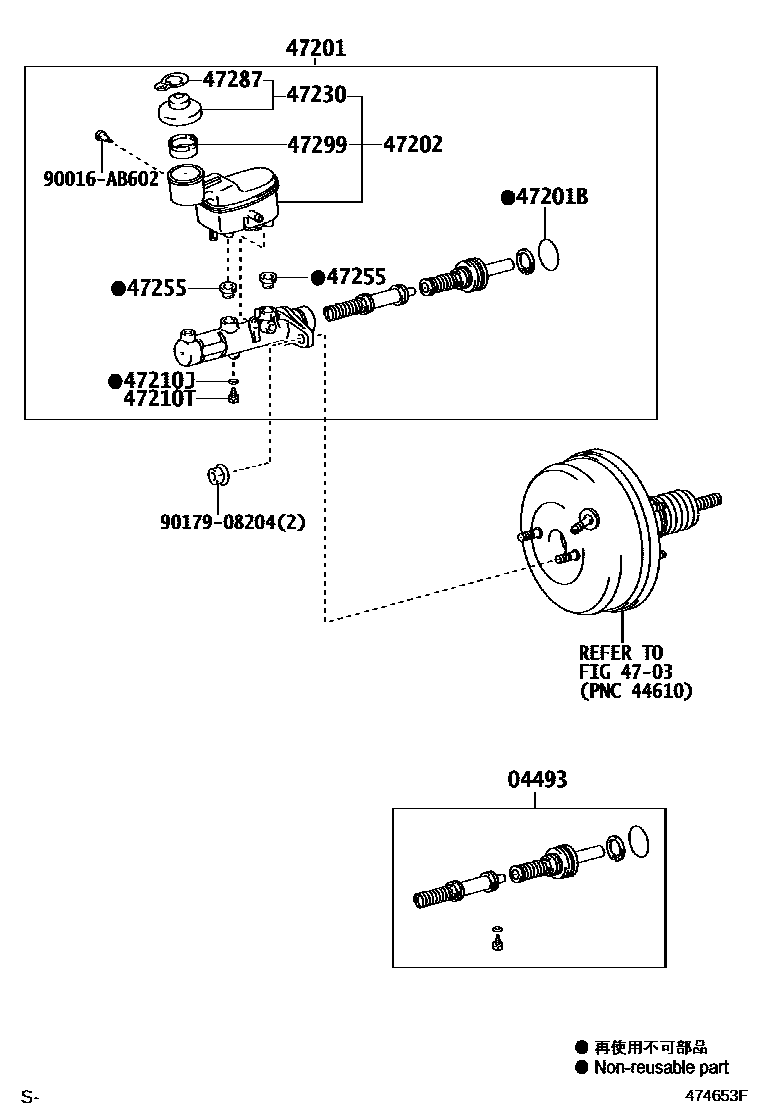

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-0K010iKUN15,2#..THDCB,THSCB,XTR200808-201107

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09200supersedes 47201-09200iKUN26..RHD..DCB..4FC200610-200810

main47201-09210iKUN26..LHD..DCB..5F200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

main47201-09230iKUN15,2#..RHD..(DCB,SCB)..5F200507-200810

main47201-09240supersedes 47201-09240iKUN15,26..LHD..DCB..4FC200507-200810

main47201-0K010supersedes 47201-0K010iKUN26..RHD..THDCB..4FC200702-200808

main47201-0K020iKUN2#..RHD..THDCB..5F..SR200808-201107

VSC-WITH

main47201-0K030supersedes 47201-0K030iKUN26..LHD..THDCB..4FC200702-200808

main47201-0K040iKUN26..LHD..THDCB..5F200808-201107

VSC-WITH

main47201-0K140iKUN26..RHD..5FC200808-201108

VSC-WITH

sub47201-0K141

main47201-0K150iKUN25..RHD..THDCB..SR201008-201107

VSC-WITH

sub47201-0K151

main47201-0K160iKUN26..LHD..5FC200808-201108

VSC-WITH

sub47201-0K161

main47201-0K170iKUN25..LHD..THDCB..CBU201008-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

sub47201-0K171

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH901iKUN15,2#..THDCB,THSCB,XTR200808-201107

main90015-AH002iKUN25..RHD..DCB..SR201010-201108

VSC-WITH

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09070supersedes 47220-09070iKUN15,26..DCB..4FC200507-200810

main47220-09080iKUN15,2#..(DCB,SCB)..5F200810-201108

VSC-WITH

main47220-0K010supersedes 47220-0K010iKUN26..THDCB..4FC200702-200808

main47220-0K020iKUN15,2#..(THDCB,THSCB,XTR)..5F200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

main47220-0K080iKUN26..DCB..5FC;KUN26..LHD..THDCB..5FC200808-201108

VSC-WITH

main47220-0K090iKUN25..RHD..THDCB..SR201008-201107

VSC-WITH

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iKUN15,2#..THDCB,THSCB,XTR200507-200808

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKUN15,2#..THDCB,THSCB,XTR200507-200808

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0K010iKUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)200507-200810

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200808-201107

main90016-AT001×2iKUN26..RHD..THDCB200808-201107

VSC-WITH

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200808-201107

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iKUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)200507-200810

90016AB602

main90016-AB602

9017908204

main90179-08204

13 parts on this diagram · 3 diagrams in section
