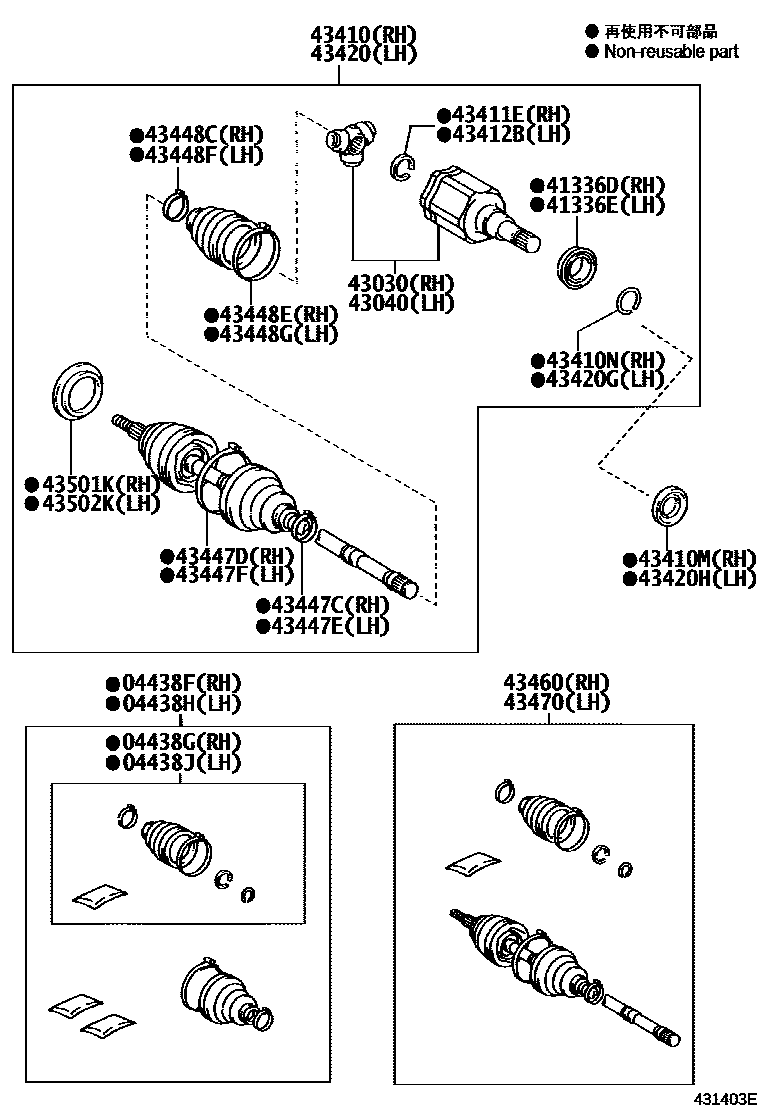

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
41336ECOVER, FRONT DRIVE SHAFT DUST, LH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43040JOINT ASSY, FRONT DRIVE INBOARD, LH
43410SHAFT ASSY, FRONT DRIVE, RH
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420SHAFT ASSY, FRONT DRIVE, LH
43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43420HOIL SEAL, FRONT DRIVE SHAFT, LH
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43501KSEAL, DUST (FOR FRONT AXLE HUB RH)
43502KSEAL, DUST (FOR FRONT AXLE HUB LH)
28 parts on this diagram · 1 diagram in section
