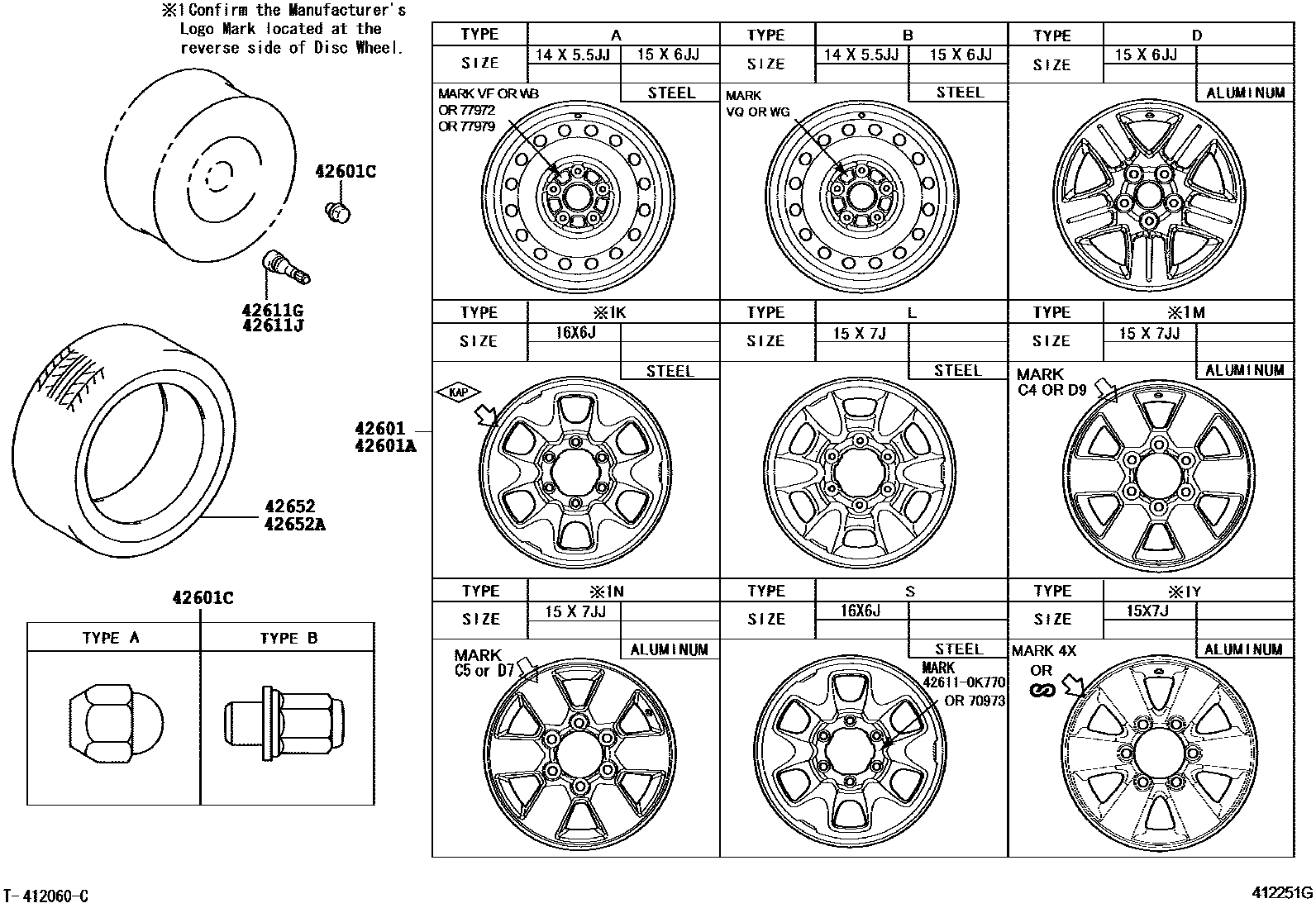

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),TYPE L:REFER ILLUST.; 15X7J, #,TYPE L:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C 6JJ,TYPE S:REFER ILLUST.; 16X6J, #,TYPE S:REFER ILLUST.
15X6JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
15X6JJ, #,TYPE B:REFER ILLUST.
15X7JJ, #,TIRE & DISC WHEEL-255/70R15C 7JJ ALMINUM,TYPE M:REFER ILLUST.
16X6JJ, #,TIRE & DISC WHEEL-205R16C 6JJ,TYPE K:REFER ILLUST.; 16X6JJ, #,TYPE K:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ ALMINUM,TYPE D:REFER ILLUST.
15X7JJ, #,TIRE & DISC WHEEL-255/70R15C 7JJ ALMINUM,TYPE N:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM,T/P AB:REFER ILLUST.
15X7JJ, #,TIRE & DISC WHEEL-255/70R15C 7JJ ALMINUM,TYPE N:REFER ILLUST.
17X7.5J, #,VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM,T/P AC:REFER ILLUST.
17X7.5J, #,VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM,T/P AB:REFER ILLUST.
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,TYPE Y:REFER ILLUST.
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,T/P AA:REFER ILLUST.
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,TYPE Y:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),TYPE L:REFER ILLUST.; 15X7J, #,TYPE L:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C 6JJ,TYPE S:REFER ILLUST.; 16X6J, #,TYPE S:REFER ILLUST.
15X6JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
15X6JJ, #,TYPE B:REFER ILLUST.
16X6JJ, #,TIRE & DISC WHEEL-205R16C 6JJ,TYPE K:REFER ILLUST.; 16X6JJ, #,TYPE K:REFER ILLUST.
17X7.5J, #,VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM,T/P AB:REFER ILLUST.
17X7.5J, #,VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM,T/P AC:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM,T/P AB:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,TYPE B:REFER ILLUST.; TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM,TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
255/70R15C,*B/S
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
42652ATIRE (FOR SPARE)
255/70R15C,*B/S
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
7 parts on this diagram · 5 diagrams in section
