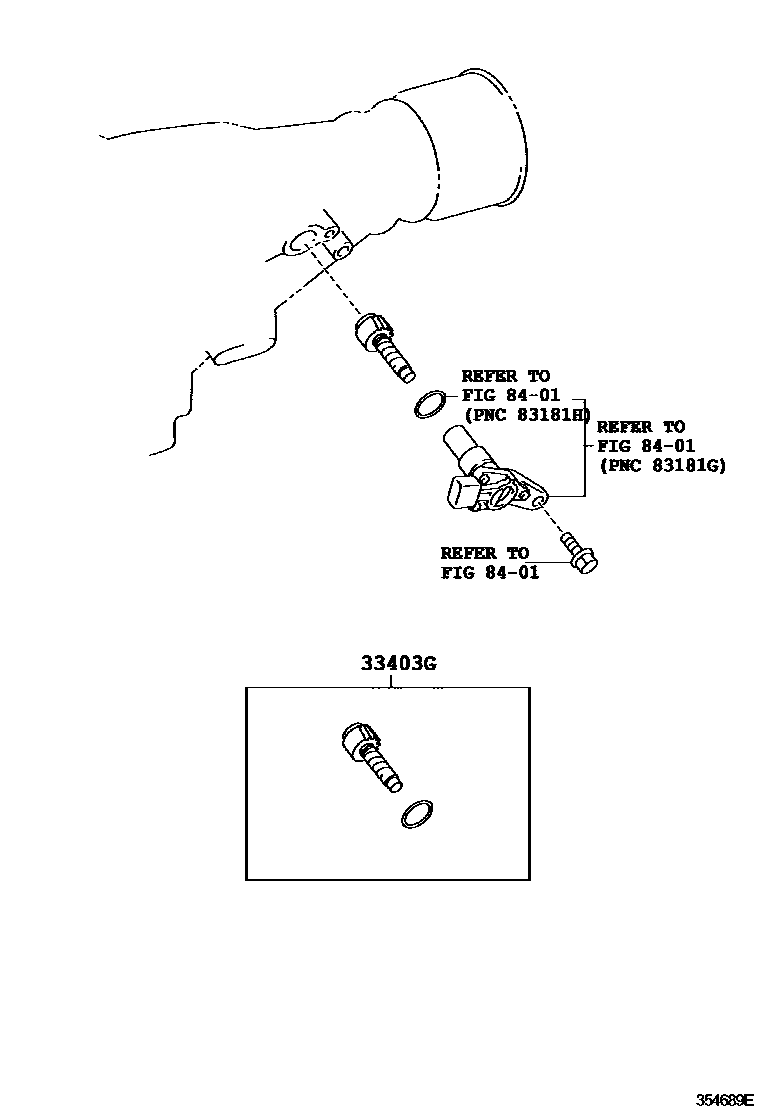

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A340E 0002 1A340F,A750F

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39585iKUN26..4FC200610-200810

N=28,MARK 28:11

main33482-59015iKUN15..SR200507-200610

N=17,MARK 17:6

main33403-39515supersedes 33403-39365iKUN26..DCB..5FC;KUN26..LHD..THDCB..5FC200808-201108

N=29,MARK 29:11,TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2 parts on this diagram · 2 diagrams in section
