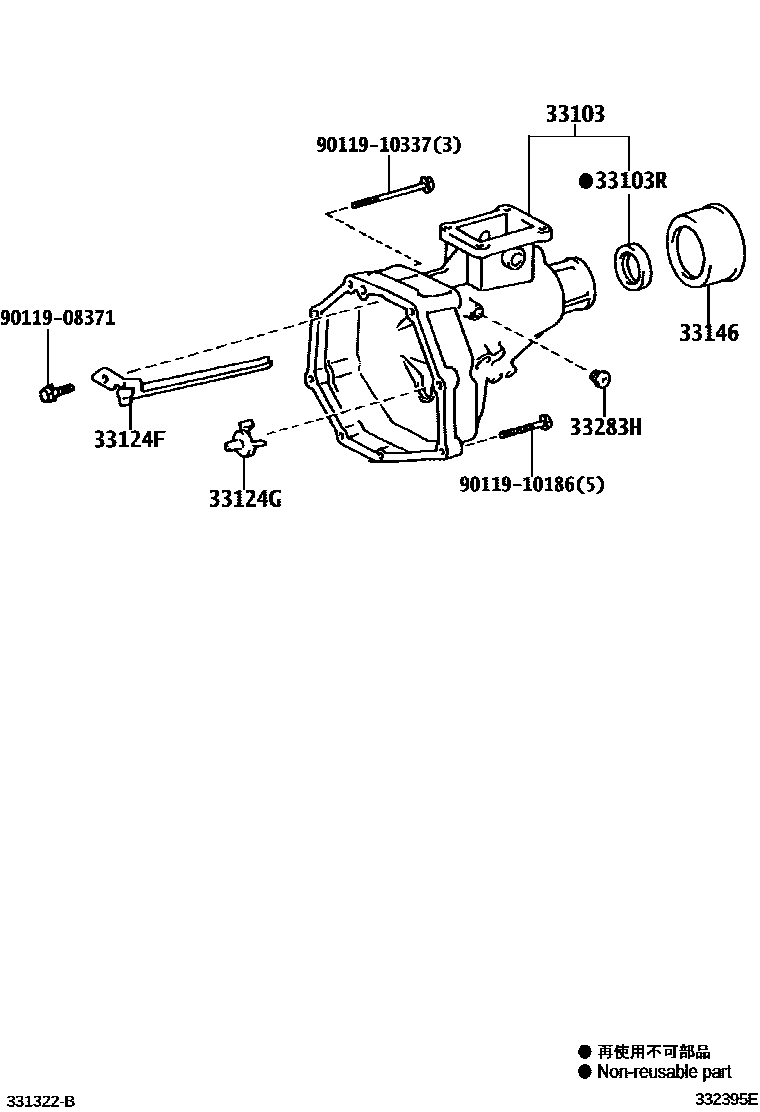

EXTENSION HOUSING (MTM)
33103HOUSING SUB-ASSY, EXTENSION(MTM)
TYPE C:REFER 33-01
TYPE D:REFER 33-01
TYPE B:REFER 33-01
33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
TYPE B:REFER 33-01
TYPE D:REFER 33-01
TYPE C:REFER 33-01
TYPE B:REFER 33-01
33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
TYPE C:REFER 33-01
TYPE D:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
TYPE C:REFER 33-01
TYPE B:REFER 33-01
33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33283HPLUG, W/HEAD STRAIGHT SCREW
9011908371
main90119-08371
9011910186
main90119-10186
9011910337
main90119-10337
9 parts on this diagram · 2 diagrams in section
