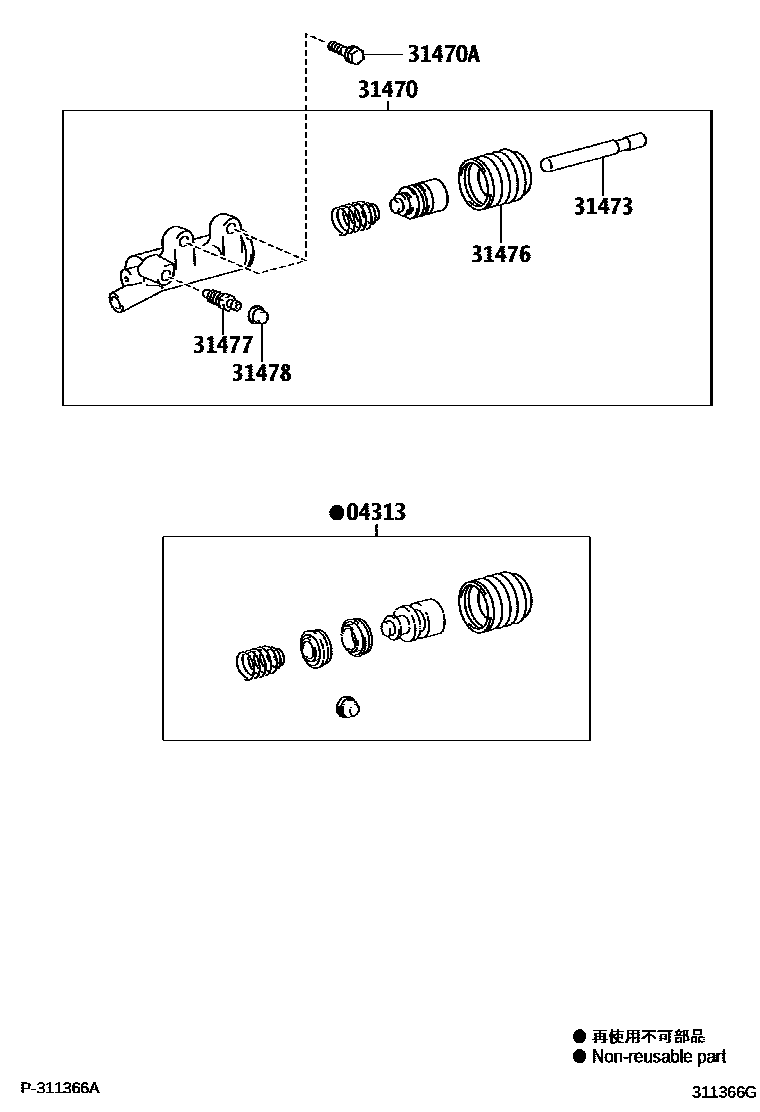

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K030iKUN15..DCR200507-200610

main04313-0K040iKUN2#..5F;KUN15..DLX..HDCR200507-200810

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K020iKUN15..DCR200507-200610

main31470-0K030iKUN2#..5F;KUN15..DLX..HDCR200507-200810

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221×2iKUN15,2#..5F200507-200810

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-04010iKUN15,2#..5F200507-200810

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iKUN15,2#..5F200507-200810

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKUN15,2#..5F200507-200810

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKUN15,2#..5F200507-200810

7 parts on this diagram · 1 diagram in section
