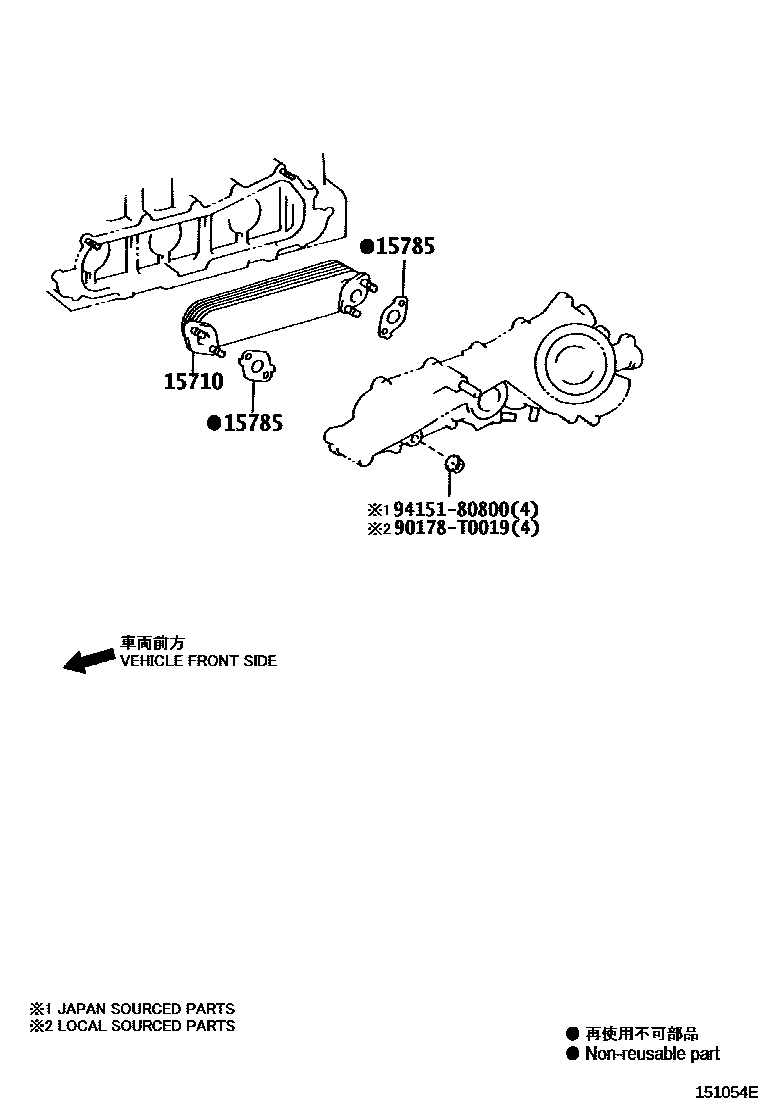

ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-0L010i2KDFTV..KUN25..XTR200507-200608

*130,(L)

main15710-30010i1KDFTV..KUN26..4FC,5F200610-200810

*163 OR *184

main15710-30030i2KDFTV..KUN25..DCB,SCB200507-200605

*163 OR *184

main15710-30040i2KDFTV..KUN25..XTR200507-200608

*130,(J)

15785GASKET, OIL COOLER

main15785-0L010×2i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main15785-30010×2i2KDFTV..KUN25..DCB,SCB200507-200605

*163 OR *184

90178T0019

main90178-T0019

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section
