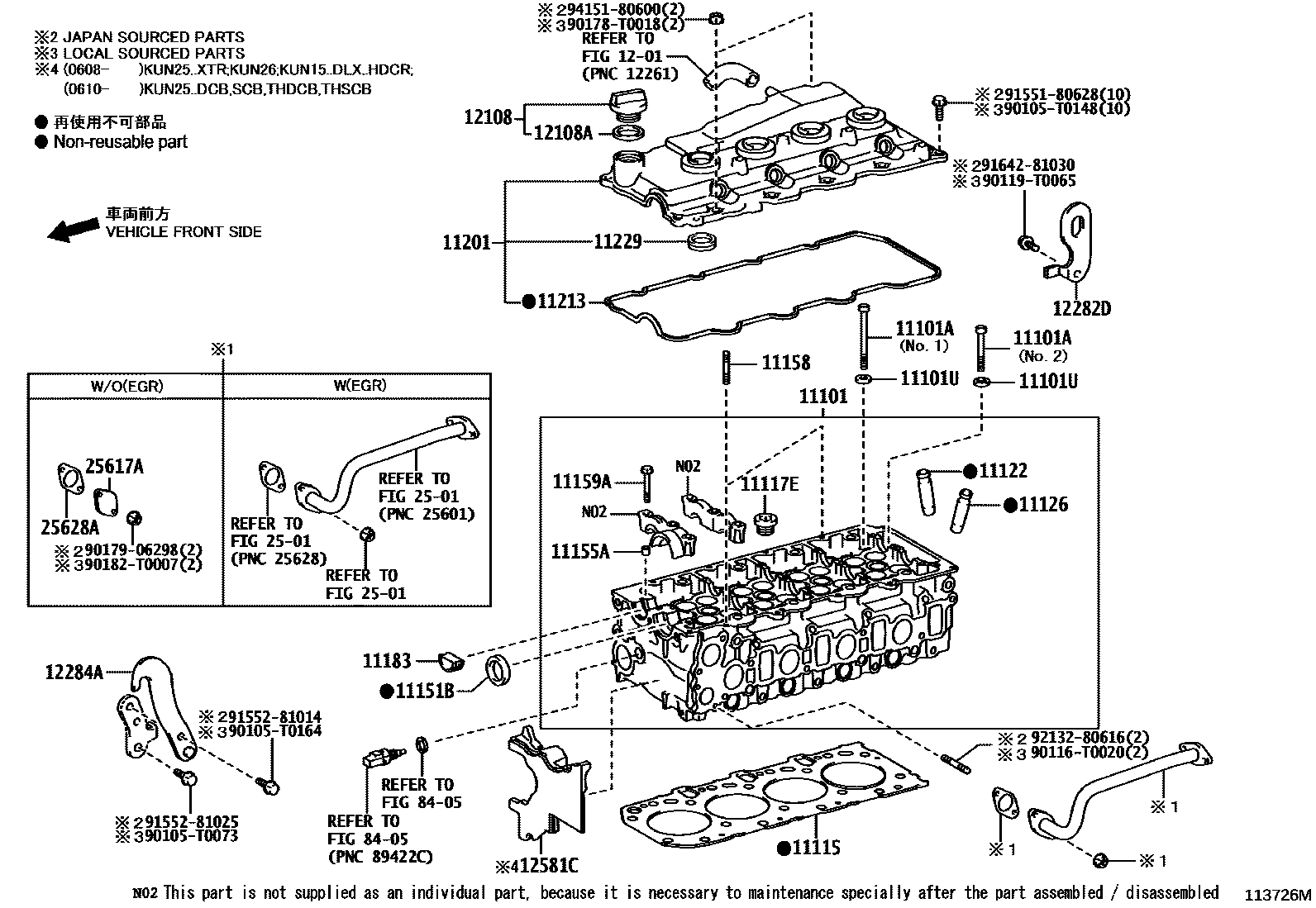

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-0L050i2KDFTV..KUN15,25..XTR200507-200608

*130

main11101-0L051i2KDFTV..KUN15,25201008-201108

*163 OR *184,(L)

main11101-30070i2KDFTV..KUN15,25200808-200812

*163 OR *184

main11101-30071i2KDFTV..KUN15,25201008-201108

*163 OR *184,(J)

main11101-30080i1KDFTV..KUN26..4FC,5F200610-200810

*163 OR *184

main11101-30081i1KDFTV..KUN26201010-201108

*163 OR *184

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02145×10i2KDFTV..KUN25..DCB,SCB200610-200810

NO.2

main90910-02146×8i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

NO.1

main90910-T2005×10i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130,NO.2

main90910-T2006×8i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130,NO.1

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023×18i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200810

main90560-T0005×18i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

11115GASKET, CYLINDER HEAD

main11115-0L010-A0i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

MARK A,*130:REFER R/M

main11115-0L010-B0i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

MARK B,*130:REFER R/M

main11115-0L010-C0i2KDFTV..KUN25..XTR200507-200608

MARK C,*130:REFER R/M

main11115-0L010-D0i2KDFTV..KUN25..XTR200507-200608

MARK D,*130:REFER R/M

main11115-0L010-E0i2KDFTV..KUN15,25200707-200810

MARK E,*123

main11115-30031-A0i1KDFTV..KUN26..4FC,5F200610-200810

MARK A,REFER REPAIR MANUAL

main11115-30031-B0i1KDFTV..KUN26..4FC,5F200610-200810

MARK B,REFER REPAIR MANUAL

main11115-30031-C0i1KDFTV..KUN26..4FC,5F200610-200810

MARK C,REFER REPAIR MANUAL

main11115-30031-D0i1KDFTV..KUN26..5F,5FC200808-201007

MARK D,REFER REPAIR MANUAL

main11115-30031-E0i1KDFTV..KUN26..5F,5FC200808-201007

MARK E,REFER REPAIR MANUAL

main11115-30032-A0i1KDFTV..KUN26201007-201108

MARK A,REFER REPAIR MANUAL

main11115-30032-B0i1KDFTV..KUN26201007-201108

MARK B,REFER REPAIR MANUAL

main11115-30032-C0i1KDFTV..KUN26201007-201108

MARK C,REFER REPAIR MANUAL

main11115-30032-D0i1KDFTV..KUN26201007-201108

MARK D,REFER REPAIR MANUAL

main11115-30032-E0i1KDFTV..KUN26201007-201108

MARK E,REFER REPAIR MANUAL

main11115-30040-A0i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

MARK A,*163 OR *184,RRM

main11115-30040-B0i2KDFTV..KUN25..XTR200507-200608

MARK B,*163 OR *184,RRM

main11115-30040-C0i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

MARK C,*163 OR *184,RRM

main11115-30040-D0i2KDFTV..KUN25..XTR;2KDFTV..KUN15..DLX..HDCR200608-200702

MARK D,REFER REPAIR MANUAL

main11115-30040-E0i2KDFTV..KUN25..XTR200507-200608

MARK E,*163 OR *184,RRM

main11115-30041-A0i2KDFTV..KUN15,25200808-201108

MARKA,*163 OR *184,RRM

main11115-30041-B0i2KDFTV..KUN15,25200707-200810

MARKB,*163 OR *184,RRM

main11115-30041-C0i2KDFTV..KUN15,25200702-200707

MARKC,REFER REPAIR MANUAL

main11115-30041-D0i2KDFTV..KUN15,25200707-200810

MARKD,*163 OR *184,RRM

main11115-30041-E0i2KDFTV..KUN15,25200707-200810

MARKE,*163 OR *184,RRM

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015×4i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

main90341-T0005×4i2KDFTV..KUN15,25..XTR200507-200608

*130

11122BUSH, INTAKE VALVE GUIDE

main11122-30020×8i1KDFTV..KUN26..5F,5FC; 2KDFTV..KUN15,25200808-201108

O/S 0.05; O/S 0.05,*163 OR *184

main11123-30020×8i1KDFTV..KUN26..5F,5FC; 2KDFTV..KUN15,25200808-201108

STD; STD,*163 OR *184

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020×8i1KDFTV..KUN26..5F,5FC; 2KDFTV..KUN15,25200808-201108

O/S 0.05; O/S 0.05,*163 OR *184

main11123-30020×8i1KDFTV..KUN26..5F,5FC; 2KDFTV..KUN15,25200808-201108

STD; STD,*163 OR *184

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90080-31097i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main90311-32019i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

11155APIN, RING W/HEAD

main90253-10004×4i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

main90253-T0001×4i2KDFTV..KUN15,25..XTR200507-200608

*130

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06149×2i1KDFTV..KUN26..5F,5FC; 2KDFTV..KUN15,25200808-201108

S=9 & 16,L=37; S=9 & 16,L=37,*163 OR *184

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-07011×15i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

11183PLUG, SEMICIRCULAR

main11183-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main11183-67020i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

*163 OR *184

11201COVER SUB-ASSY, CYLINDER HEAD

main11210-0L020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main11210-30110i2KDFTV..KUN25..DCB,SCB200507-200605

*163 OR *184

11213GASKET, CYLINDER HEAD COVER

main11213-0L010i2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F200507-200810

*163 OR *184,(L)

main11213-30040i2KDFTV..KUN25..DCB,SCB200507-200605

*163 OR *184,(J)

11229GASKET, CYLINDER HEAD COVER, NO.3

main23682-0L010×4i2KDFTV..KUN25..XTR200507-200608

*130

main23682-30020×4i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

*163 OR *184

1201VENTILATION HOSE

→ Go to FIG 12-01

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i2KDFTV..KUN25..XTR200507-200608

*130

main12180-21010i2KDFTV..KUN25..DCB,SCB200507-200605

*163 OR *184

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main90430-37140i2KDFTV..KUN25..DCB,SCB200507-200605

*163 OR *184

12282DHANGER, ENGINE, NO.2

main12282-67030i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

12284AHANGER, ENGINE, NO.1 UPPER

main12284-30020i2KDFTV..KUN25..XTR200507-200608

main12284-30060i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

12581CINSULATOR, CYLINDER BLOCK

main12581-30010i2KDFTV..KUN15..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN2#..RHD..(THDCB,THSCB)200808-201107

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25617APLATE, EGR HOLE COVER, NO.2

main25617-0L010i2KDFTV..KUN15,25..LHD..DCB..5F..CBU200507-200610

TURKEY SPEC,*130

main25617-30010i2KDFTV..KUN15,25..LHD..DCB..5F..CBU200507-200610

TURKEY SPEC,*163 OR *184

25628AGASKET, EGR HOLE COVER PLATE, NO.2

main25628-0L010i2KDFTV..KUN15,25..LHD..DCB..5F..CBU200507-200610

TURKEY SPEC,*130

main25628-30020i2KDFTV..KUN15,25..LHD..DCB..5F..CBU200507-200610

TURKEY SPEC,*163 OR *184

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

90105T0073

main90105-T0073

90105T0148

main90105-T0148

90105T0164

main90105-T0164

90116T0020

main90116-T0020

90119T0065

main90119-T0065

90178T0018

main90178-T0018

9017906298

main90179-06298

90182T0007

main90182-T0007

9155180628

main91551-80628

9155281014

main91552-81014

9155281025

main91552-81025

9164281030

main91642-81030

9213280616

main92132-80616

9415180600

main94151-80600

39 parts on this diagram · 1 diagram in section
