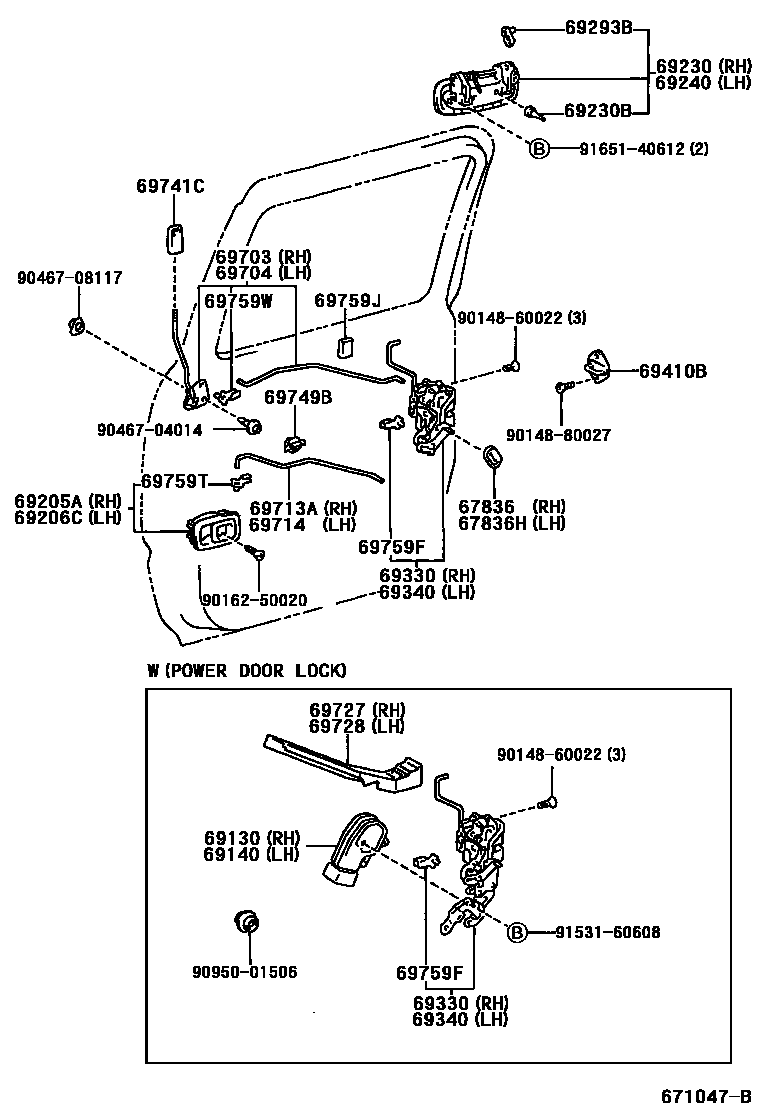

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iLN145,165,190,RZN168..LHD..DCB199708-200108

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-14010iLN145,165,RZN168..DCB199708-200108

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-35050iLN145,165,190,RZN168..DCB199708-200108

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-35050iLN145,165,190,RZN168..DCB199708-200108

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69206-10070-B1iKDN145,165,190..DCB199708-200508

MD.MOON MIST,TRIM1#

sub69206-10070

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69205-10070-B1iKDN145,165,190..DCB199708-200508

MD.MOON MIST,TRIM1#

sub69205-10070

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-35070iLN145,165,RZN168..DCB199708-199908

CHROME PLATED PACKAGE

main69230-35080iLN145,165,RZN168..DCB199708-199908

main69230-35140iKDN145,165,190..DCB199908-200108

NO PAINT REQ.

main69230-35150iLN145,165,190,RZN168..DCB199908-200108

PLATED,CHROME PLATED PACKAGE

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iLN145,165,190,RZN168..DCB199708-200108

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-35070iLN145,165,RZN168..DCB199708-199908

CHROME PLATED PACKAGE

main69240-35080iLN145,165,RZN168..DCB199708-199908

main69240-35140iLN145,165,190,RZN168..DCB199908-200108

BLACK

main69240-35150iLN145,165,190,RZN168..DCB199908-200108

*CR,CHROME PLATED PACKAGE

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iLN145,165,190,RZN168..DCB199708-200108

RH

main69293-12040iKDN145,165,190..DCB199708-200108

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-35120iKDN145,165..LHD..DCB..DLX199708-200108

main69330-35130iLN145,165,RZN168..DCB199708-200108

W(POWER DOOR LOCK)

main69330-35160iLN145..DCB..DLX;LN165,RZN168..DCB199907-199908

main69330-35170iLN145,165,RZN168..DCB199907-199908

W(POWER DOOR LOCK)

69340LOCK ASSY, REAR DOOR, LH

main69340-35120iLN145..DCB..DLX;LN165,RZN168..DCB199708-200108

main69340-35130iKDN145,165,190..DCB199708-200108

W(POWER DOOR LOCK)

main69340-35160iLN145..DCB..DLX;LN165,RZN168..DCB199907-199908

main69340-35170iLN145,165,RZN168..DCB199907-199908

W(POWER DOOR LOCK)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iLN145,165,RZN168..DCB199708-200108

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-35040iLN145,165,190,RZN168..DCB199708-200108

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-35040iLN145,165,190,RZN168..DCB199708-200108

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-35050iLN145,165,190,RZN168..DCB199708-200108

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-35050iLN145,165,190,RZN168..DCB199708-200108

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-35020iLN145,165,190,RZN168..DCB199708-200108

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-35020iLN145,165,190,RZN168..DCB199708-200108

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-12040-B1iLN145,165,190,RZN168..DCB199708-200108

MD.MOON MIST,TRIM1#

sub69741-12040

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12070iLN145,165,190,RZN168..DCB199708-200108

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040iLN145,165,RZN168..DCB199708-200108

LH

main69759-20050iLN145,165,RZN168..DCB199708-200108

RH

69759JSILENCER, DOOR LOCK LINK

main69759-12060iLN145,165,190,RZN168..DCB199708-200108

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-20060iLN145,165,190,RZN168..DCB199708-200508

LH

main69759-20070iKDN145,165,190..DCB199708-200508

RH

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iLN145,165,190,RZN168..DCB199708-200108

RH,NATURAL

main69759-20030iKDN145,165,190..DCB199708-200108

LH,BLUE

main69759-24080iLN145,165,190,RZN168..DCB199708-200108

LH,YELLOW

main69759-24090iLN145,165,190,RZN168..DCB199708-200108

RH,BROWN

9014860022

main90148-60022

9014880027

main90148-80027

9016250020

main90162-50020

9046704014

main90467-04014

9046708117

main90467-08117

9095001506

main90950-01506

9153160608

main91531-60608

9165140612

main91651-40612

33 parts on this diagram · 1 diagram in section
