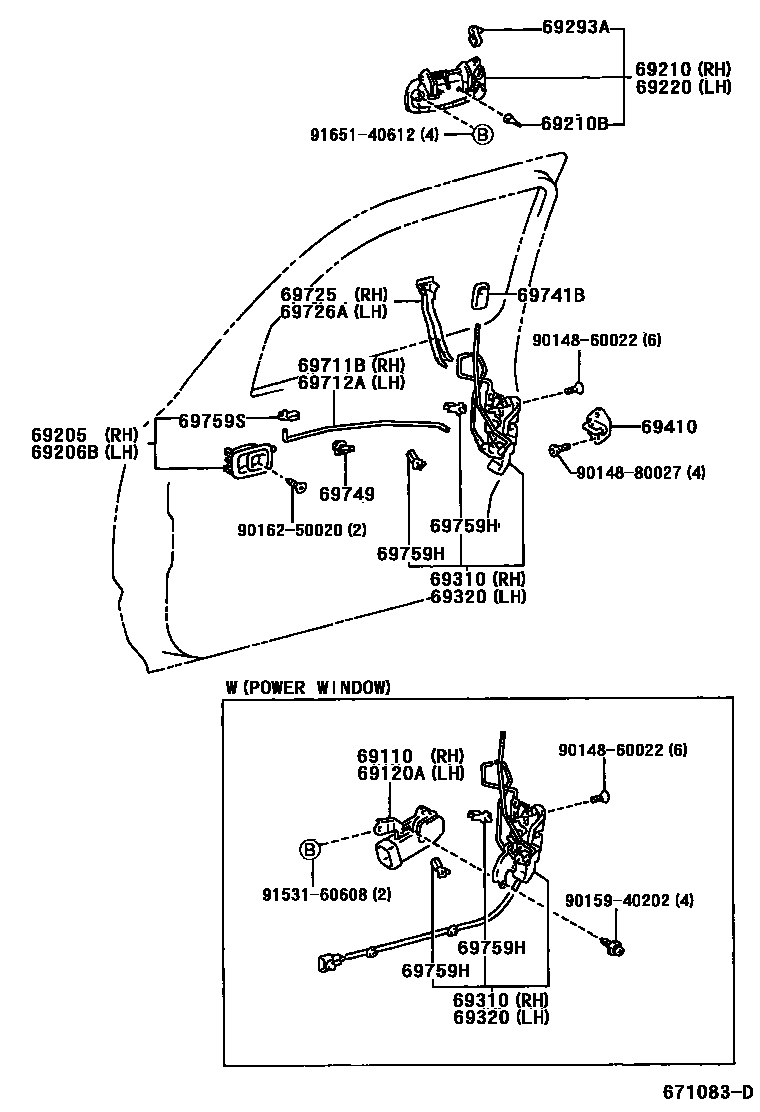

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-35040iLN145,150,165,170,190,RZN168,173..DCB,XTR199708-200108

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-35040iLN145,150,165,170,190,RZN168,173..DCB,XTR199708-200108

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10070-B1iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

sub69205-10070

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10070-B1iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

sub69206-10070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-35050iLN145,150,165,170,RZN168,173199708-199908

main69210-35080iLN165,RZN168;LN145,150,170,RZN173..DCB,XTR199708-199908

CHROME PLATED PACKAGE

main69210-35130iLN145,150,165,170,190,RZN168,173199908-200108

NO PAINT REQ.

main69210-35140iKDN150,165;KDN145,170,190..LHD199908-200108

PLATED,CHROME PLATED PACKAGE

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iKDN145,150,165,170,190199708-200108

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-35050iLN145,150,165,170,RZN168,173199708-199908

main69220-35080iLN165,RZN168;LN145,150,170,RZN173..DCB,XTR199708-199908

CHROME PLATED PACKAGE

main69220-35130iKDN145,150,165,170,190199908-200108

BLACK

main69220-35140iLN165;LN145,150,170,190,RZN168,173..DCB,XTR199908-200108

*CR,CHROME PLATED PACKAGE

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iLN145,150,165,170,190,RZN168,173199708-200108

RH

main69293-12040iLN145,150,165,170,190,RZN168,173199708-200108

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-35370iKDN145,165..LHD..DCB..DLX199708-200108

main69310-35390iLN145,150,165,170,RZN168,173..SCB,XTR199708-200108

main69310-35400iKDN165..RHD..DCB200108

main69310-35400iLN165..RHD..DCB199708-200108

W(POWER WINDOW)

main69310-35420iLN145,165,190,RZN168..LHD..DCB199708-200108

W(POWER WINDOW)

main69310-35430iKDN145,150,165..RHD..(SCB,XTR)200108

W(POWER WINDOW)

main69310-35450iLN150,170,RZN173199711-200108

W(POWER WINDOW)

69320LOCK ASSY, FRONT DOOR, LH

main69320-35370iLN145..DCB..DLX;LN165,RZN168..DCB199708-200108

main69320-35390iKDN145,150,165,170..(SCB,XTR)..DLX199708-200108

main69320-35400iLN145,165,190,RZN168..LHD..DCB199708-200108

W(POWER WINDOW)

main69320-35420iKDN165..RHD..DCB200108

main69320-35420iLN165..RHD..DCB199708-200108

W(POWER WINDOW)

main69320-35430iLN150,170,RZN173199711-200108

W(POWER WINDOW)

main69320-35450iKDN145,150,165..RHD..(SCB,XTR)200108

W(POWER WINDOW)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iLN145,150,165,170,RZN168,173199708-200108

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-35050iLN145,165,190,RZN168..DCB199708-200108

main69711-35060iKDN145,150,165,170..SCB,XTR199708-200108

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-35050iKDN145,165,190..DCB199708-200108

main69712-35060iLN145,150,165,170,RZN168,173..SCB,XTR199708-200108

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-35020iLN145,165,190,RZN168..DCB199708-200108

main69725-35030iLN145,150,165,170,RZN168,173..SCB,XTR199708-200108

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-35040iKDN145,165,190..DCB199708-200108

main69726-35050iLN145,150,165,170,RZN168,173..SCB,XTR199708-200108

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B1iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iLN145,150,165,170,190,RZN168,173199708-200108

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iLN145,150,165,170,RZN168,173199708-200108

YELLOW

main69759-20050iKDN145,150,165,170,190199708-200108

BROWN

main69759-24010iLN145,150,165,170,RZN168,173199708-200108

NATURAL

main69759-24020iLN165..SCB;LN165..LHD..DCB;LN145,150,170,190,RZN168,173199708-200108

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iLN145,150,165,170,RZN168,173..SCB,XTR199708-200508

LH

main69759-20070iKDN145,165,190..DCB199708-200508

RH

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9016250020

main90162-50020

9153160608

main91531-60608

9165140612

main91651-40612

25 parts on this diagram · 1 diagram in section
