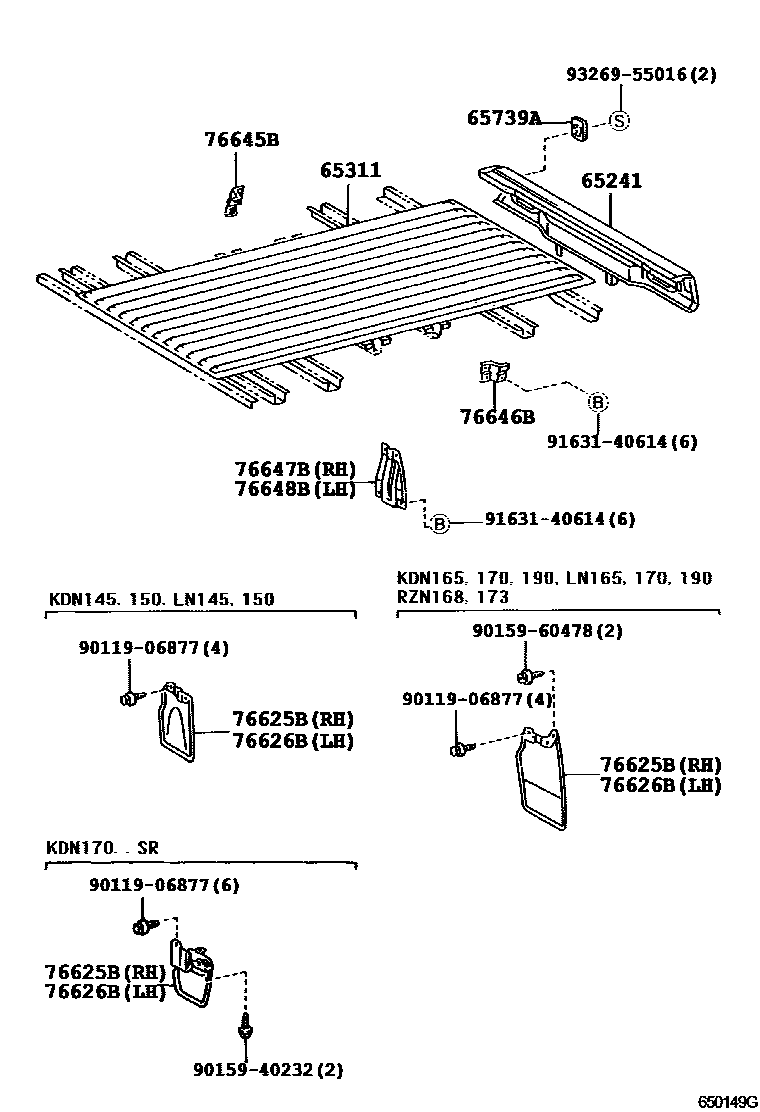

REAR BODY FLOOR & FENDER

0001 1 0002 1

65241SILL, REAR CROSS

main65240-35060iLN165..RHD..DCB199708-200108

main65240-35070iLN165..LHD..SCB..CBU199708-199805

W(FOG LAMP)

main65240-35100iKDN165..RHD..DCB; KDN165..RHD..SCB200108-200508

W(STEP BUMPER)

main65240-35110iKDN165..LHD..DCB..CBU;KDN145,150,170,190..LHD..CBU; KDN165..LHD..SCB..CBU200108-200508

W(STEP BUMPER)

main65240-35130iKDN145,150..RHD; KDN165..RHD..DCB200108-200508

ENGLAND SPEC

main65240-35140iKDN145,150..RHD; KDN165..RHD..DCB; KDN165..RHD..SCB200108-200508

ENGLAND SPEC; ENGLAND SPEC & W(STEP BUMPER); W(STEP BUMPER)

65311PANEL, FLOOR, CENTER

main65311-04050iLN150,170,RZN173..CBU199711-200108

main65311-35050iKDN145,165,190..DCB..CBU200108-200508

main65311-89129iLN145,165,RZN168..SCB..CBU199708-200108

65739ABUMPER, TAIL GATE

main65739-89103×2iLN165..SCB..CBU199708-199805

76625BMUDGUARD, REAR BODY, RH

main76607-35050iKDN165,170,190..SR..CBU200108

W(LARGE FENDER)

main76625-35140iLN165,170,190,RZN168,173..CBU199708-200108

main76625-35150iKDN145,150..CBU200108

76626BMUDGUARD, REAR BODY, LH

main76608-35050iKDN165,170,190..SR..CBU200108

W(LARGE FENDER)

main76626-35140iLN165,170,190,RZN168,173..CBU199708-200108

main76626-35150iLN145,150..CBU199708-200108

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-35020iKDN145,150,165,170,190..CBU200108

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-35010iLN145,150,165,170,190,RZN168,173..CBU199708-200108

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-35050iLN145,150,165,170,190,RZN168,173..CBU199708-200108

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-35040iLN145,150,165,170,190,RZN168,173..CBU199708-200108

9011906877

main90119-06877

9015940232

main90159-40232

9015960478

main90159-60478

9163140614

main91631-40614

9326955016

main93269-55016

14 parts on this diagram · 2 diagrams in section
