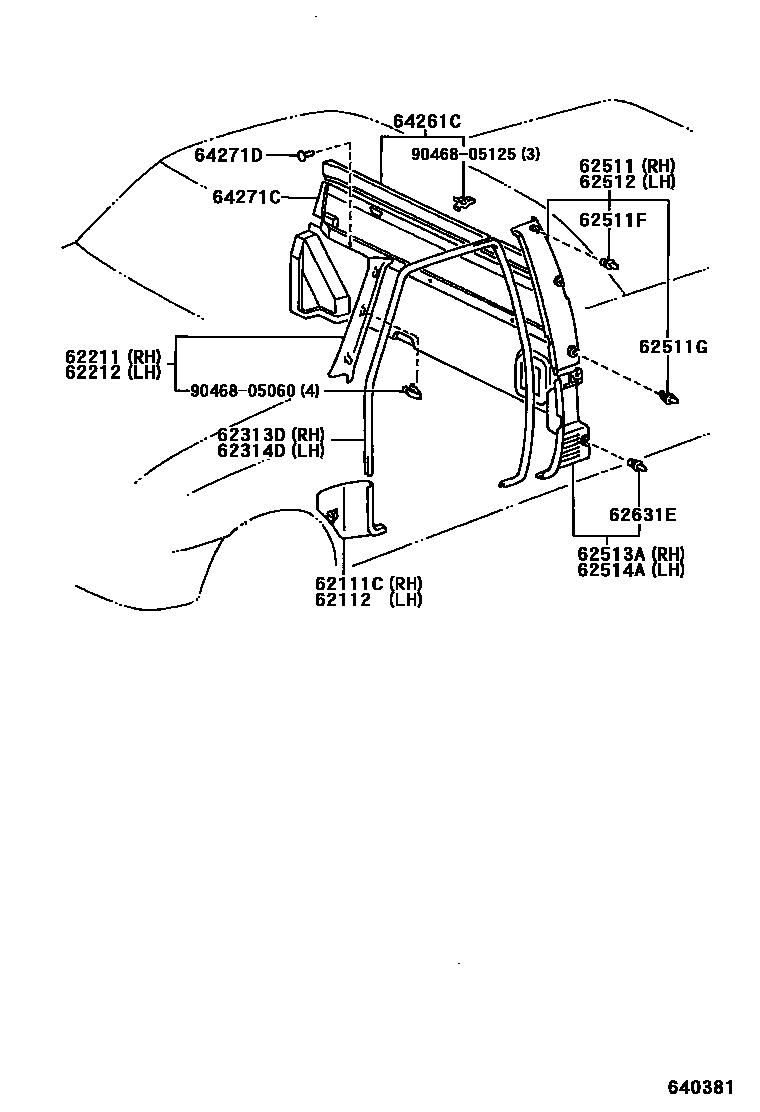

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-35020-B0iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-35040-B0iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-35050-B0iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

sub62211-35050

62212GARNISH, FRONT PILLAR, LH

main62212-35050-B0iLN145,150,165,170,190,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

sub62212-35050

62313DTRIM, FRONT DOOR OPENING, RH

main62313-35010-B0iLN145,165,190,RZN168..DCB199708-200108

MD.MOON MIST,TRIM1#

sub62313-35010

main62313-35020-B0iRZN168..SCB;LN145..RHD..IV3199708-200312

MD.MOON MIST,TRIM1#

sub62313-35021

main62313-35021-B0iKDN145,165..SCB200312

MD.MOON MIST,TRIM1#

sub62313-35021

main62313-35030-B0iLN150,170,RZN173199711-200108

MD.MOON MIST,TRIM1#

main62313-35040-B0iKDN145,165,190..DCB200108-200312

MD.MOON MIST,TRIM1#

sub62313-35041

main62313-35041-B0iKDN145,165,190..DCB200312

MD.MOON MIST,TRIM1#

sub62313-35041

main62313-35050-B0iKDN150,170200108-200312

MD.MOON MIST,TRIM1#

sub62313-35051

main62313-35051-B0iKDN150,170200312

MD.MOON MIST,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-35020-B0iKDN145,165..SCB199708-200312

MD.MOON MIST,TRIM1#

sub62313-35021

main62313-35021-B0iKDN145,165..SCB200312

MD.MOON MIST,TRIM1#

sub62313-35021

main62314-35010-B0iLN145,165,190,RZN168..DCB199708-200108

MD.MOON MIST,TRIM1#

sub62314-35010

main62314-35030-B0iLN150,170,RZN173199711-200108

MD.MOON MIST,TRIM1#

main62314-35040-B0iKDN145,165,190..DCB200108-200312

MD.MOON MIST,TRIM1#

sub62314-35041

main62314-35041-B0iKDN145,165,190..DCB200312

MD.MOON MIST,TRIM1#

sub62314-35041

main62314-35050-B0iKDN150,170200108-200312

MD.MOON MIST,TRIM1#

sub62314-35051

main62314-35051-B0iKDN150,170200312

MD.MOON MIST,TRIM1#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-35070-B0iKDN145,165..SCB199708-200108

MD.MOON MIST,TRIM1#

main62511-35080-B0iLN150,170,RZN173199711-200108

MD.MOON MIST,TRIM1#

main62511-35100-B0iLN150,170,RZN173199711-200108

W(REAR SEAT BELT),MD.MOON MIST,TRIM1#

main62511-35120-B0iLN165..RHD..DCB;LN145,165,190..SR199708-200108

MD.MOON MIST,TRIM1#

sub62511-35120

62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)

main67771-12050iLN145,165..LHD..DCB199708-200108

main67771-89110iLN150,170,RZN173199711-200108

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-09158iKDN145,165..SCB199708-200108

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-35070-B0iKDN145,165..SCB199708-200108

MD.MOON MIST,TRIM1#

main62512-35080-B0iKDN150,170199711-200108

MD.MOON MIST,TRIM1#

main62512-35100-B0iLN150,170,RZN173199711-200108

W(REAR SEAT BELT),MD.MOON MIST,TRIM1#

main62512-35120-B0iLN145,165..LHD..DCB199708-200108

MD.MOON MIST,TRIM1#

sub62512-35120

62513APANEL, QUARTER TRIM, LOWER RH

main62513-35010-B0iKDN145,165..SCB199708-200108

MD.MOON MIST,TRIM1#

sub62513-35010

62514APANEL, QUARTER TRIM, LOWER LH

main62514-35010-B0iLN145,165,RZN168..SCB199708-200108

MD.MOON MIST,TRIM1#

62631ERETAINER, QUATER TRIM

main67771-12050iLN145,165,RZN168..SCB199708-200108

64261CGARNISH, BACK PANEL, UPPER

main64261-35030-B0iKDN150,170199711-200108

MD.MOON MIST,TRIM1#

main64261-35040-B0iLN145;LN165..LHD..DCB;LN165,RZN168..SCB199708-200108

MD.MOON MIST,TRIM1#

64271CTRIM, BACK PANEL

main64270-35050-B3iKDN150,170..SR200108-200508

MD.MOON MIST,TRIM1#

main64270-35060-B1iLN150,170,RZN173199711-200108

SR PACKAGE,MEDIUM MOONMIST,TRIM1#

main64270-35080-B1iLN150,170,RZN173199711-200108

MEDIUM MOONMIST,TRIM1#

main64270-35090-B2iKDN150,170..DLX200108-200508

MD.MOON MIST,TRIM1#

main64271-35010-B0iKDN145,165..SCB199708-200508

MEDIUM MOONMIST,TRIM1#

64271DCLIP(FOR BACK PANEL TRIM)

main90467-05027-B0iKDN145,165..SCB200108

MD.MOON MIST,TRIM10

sub90467-05027

main90467-05027-B1iLN145,165,RZN168..SCB199708-199805

MOON MIST,TRIM1#

sub90467-05027

main90467-05027-B3iLN145,165,RZN168..SCB199805-200108

LT.BLUISH GRAY,TRIM1#

sub90467-05027

9046805060

main90468-05060

9046805125

main90468-05125

18 parts on this diagram · 3 diagrams in section
