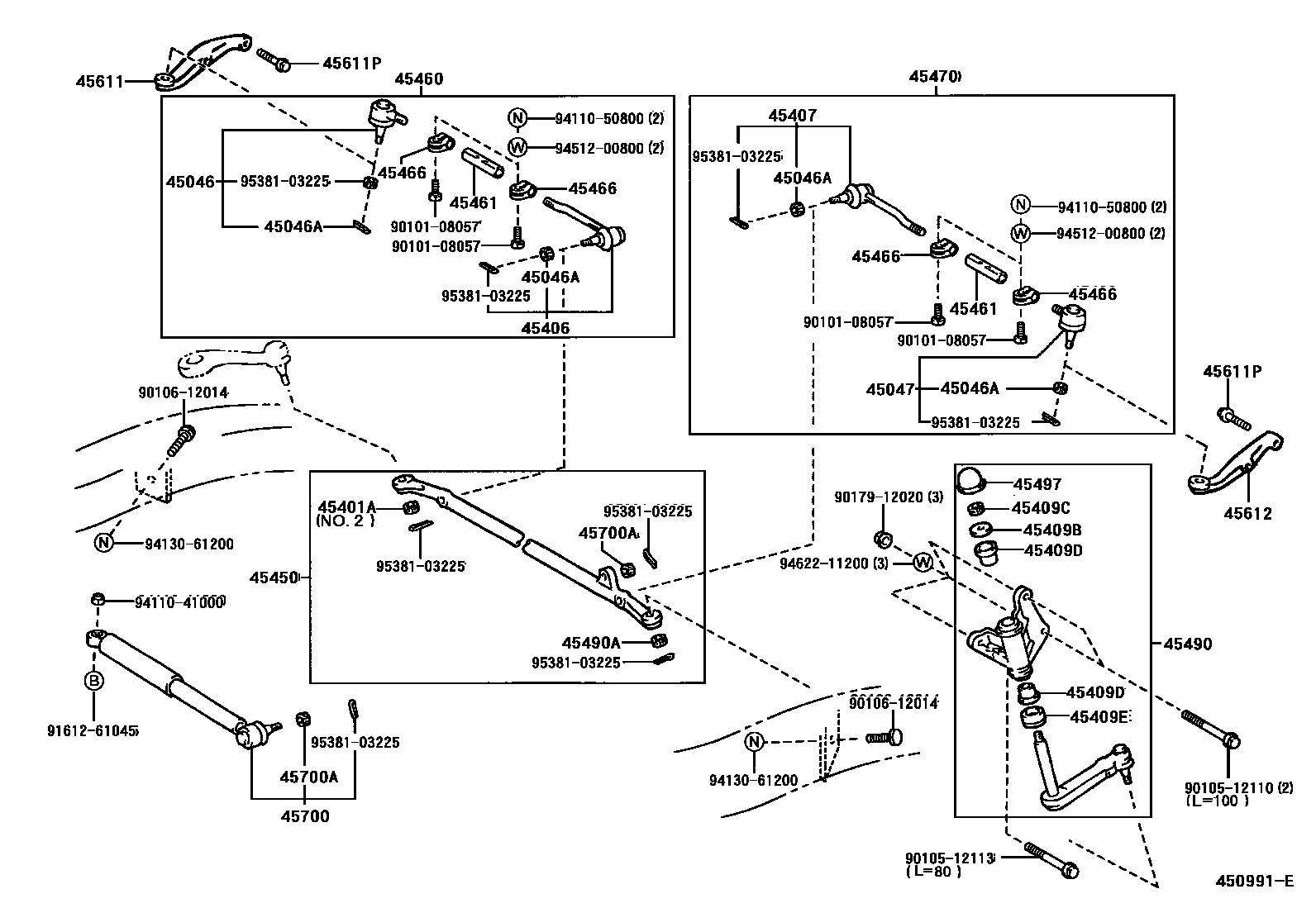

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(POWER STEERING) 0007 1 0008 1

45046END SUB-ASSY, TIE ROD, RH

main45046-39375iLN145,150199708-200108

main45046-39385iLN165,170,190,RZN168,173199708-200108

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iRZN168..SCB;LN145..RHD..IV3199708-199908

45047END SUB-ASSY, TIE ROD, LH

main45046-39375iLN145,150199708-200108

main45046-39385iLN165,170,190,RZN168,173199708-200108

45401ARM SUB-ASSY, PITMAN

main45401-35260iKDN165..RHD200108

main45401-35270iKDN165,170,190..LHD200108

main45411-35320iLN145,150..LHD199708-200108

W(POWER STEERING)

main45411-35330iLN145..RHD..CBU199708-200108

main45411-35350iLN145..LHD199708-199709

main45411-35450iLN145,150..LHD199709-200108

main45411-35460iKDN145,150..RHD200108

main45411-35470iKDN145,150..LHD200108

45401ANUT, CASTLE(FOR PITMAN ARM)

main90170-22058iLN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173199708-200108

NO.1

main90171-14042iLN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173199708-200108

NO.2

45406ROD SUB-ASSY, TIE, RH

main45406-39115iLN145,150199708-200108

main45406-39185iKDN165,170,190200108-200508

45407ROD SUB-ASSY, TIE, LH

main45406-39115iKDN145,150200108-200508

main45406-39185iKDN165,170,190200108-200508

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14010iLN145,150,165,170,190,RZN168,173199708-200108

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iLN145,150199708-200108

main94184-61401iKDN165,170,190200108

45409DBUSH(FOR IDLER ARM)

main90386-18002×2iKDN145,150200108

main90389-21004×2iLN165,170,190,RZN168,173199708-200108

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iLN145,150,165,170,190,RZN168,173199708-200108

45450ROD ASSY, STEERING RELAY

main45450-39245iLN145..RHD..CBU199708-200107

main45450-39255iLN145,150..LHD199708-200107

main45450-39295iKDN145,150..RHD200108-200508

main45450-39305iKDN145,150..LHD200108-200508

main45451-39175iLN165..RHD199708-199805

main45451-39185iLN165,170..LHD199708-199805

main45451-39205iRZN168,173199708-199805

main45451-39405iRZN168,173..DCB,XTR199805-200108

main45451-39505iKDN165..RHD200108-200508

main45451-39605iKDN165,170,190..LHD200108-200508

45460ROD ASSY, TIE, RH

main45460-39485iLN145..RHD..IV3199708-199908

main45460-39505iRZN168..SCB199708-199908

45461ROD, STEERING TIE

main45465-35040×2iRZN168..SCB199708-199908

main45465-35060×2iLN145..RHD..IV3199708-199908

45466CLAMP, TIE ROD END

main45466-30020×4iRZN168..SCB;LN145..RHD..IV3199708-199908

45470ROD ASSY, TIE, LH

main45460-39485iLN145,150..LHD;LN145..RHD..CBU199708-200108

main45460-39505iRZN168..DCB;LN165,170,190,RZN173199708-200108

45490ARM ASSY, STEERING IDLER

main45490-39305iLN145..RHD..IV3199708-199908

main45490-39315iLN145,150..LHD199708-200108

main45490-39445iKDN165..RHD200108-200206

main45490-39446iKDN165..RHD200206-200508

main45490-39455iKDN165,170,190..LHD200108-200206

main45490-39456iKDN165,170,190..LHD200206-200508

main45490-39465iKDN145,150..RHD200108-200206

main45490-39466iKDN145,150..RHD200206-200508

main45490-39475iKDN145,150..LHD200108-200206

main45490-39476iKDN145,150..LHD200206-200508

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iLN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173199708-200108

45497CAP, IDLER ARM BRACKET

main45497-28010iKDN145,150,165,170,190200108

45611ARM, STEERING KNUCKLE, RH

main45611-35130iRZN168..SCB199708-199908

main45611-35230iKDN145,150200108-200508

45611PBOLT(FOR STEERING KNUCKLE)

main90105-14043×4iRZN168..SCB199708-199908

45612ARM, STEERING KNUCKLE, LH

main45612-35150iRZN168..DCB;LN165,170,190,RZN173199708-200108

main45612-35250iLN145,150..LHD;LN145..RHD..CBU199708-200108

45700DAMPER ASSY, STEERING

main45700-39046iRZN168..SCB199708-199908

45700ANUT(FOR STEERING DAMPER)

main90171-12028iRZN168..SCB199708-199908

9010108057

main90101-08057

9010512110

main90105-12110

9010512113

main90105-12113

9010612014

main90106-12014

9017912020

main90179-12020

9161261045

main91612-61045

9411041000

main94110-41000

9411050800

main94110-50800

9413061200

main94130-61200

9451200800

main94512-00800

9462211200

main94622-11200

9538103225

main95381-03225
