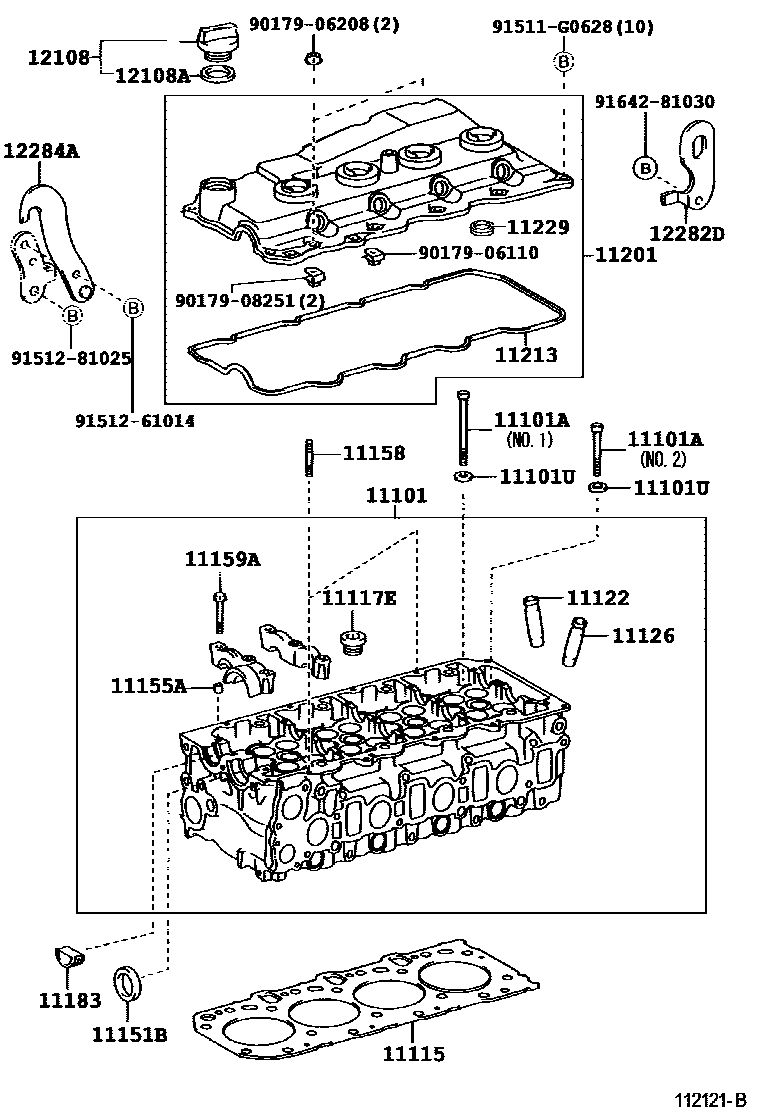

CYLINDER HEAD

0001 1 0002 1 0004 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0L050i2KDFTV..KDN145,150,165,170,190200410

(L)

sub11101-0L051

main11101-30040i2KDFTV..KDN145,150,165,170,190200108-200206

sub11101-30041

sub23770-30021

sub23770-30031

main11101-30041i2KDFTV..KDN145,150,165,170,190200206-200405

sub11101-30060

sub83420-26010

sub90430-12221

main11101-30060i2KDFTV..KDN145,150,165,170,190200410

(J)

sub11101-30071

main11101-30060i2KDFTV..KDN145,150,165,170,190200405-200410

sub11101-30071

main11101-54111i2L..LN145,150199708-199805

main11101-54121i2LT..LN165,170199708-199805

main11101-54160i2L..LN145,150199805-200108

main11101-54170i2LT..LN165,170,190199805-200108

main11101-79186i2RZFE..RZN168,173199708-199812

sub11101-79275

sub90339-36001

main11101-79275i2RZFE..RZN168..SCB199812-200005

sub11101-79276

sub13715-75050

main11101-79276i2RZFE..RZN168,173200005-200108

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02080i2L#..LN145,150,165,170,190199708-200108

NO.1

main90910-02081i2L#..LN145,150,165,170,190199708-200108

NO.2

main90910-02091i2RZFE..RZN168,173199708-200108

sub90910-02187

main90910-02145i2KDFTV..KDN145,150,165,170,190200108

NO.2

main90910-02146i2KDFTV..KDN145,150,165,170,190200108

NO.1

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023i2KDFTV..KDN145,150,165,170,190200108

11115GASKET, CYLINDER HEAD

main11115-05010-B0i2L#..LN145,150,165,170199708-199902

MARK B,(L)

sub11115-05011

main11115-05010-D0i2L#..LN145,150,165,170199708-199902

MARK D,(L)

sub11115-05011

main11115-05010-F0i2L#..LN145,150,165,170199708-199902

MARK F,(L)

sub11115-05011

main11115-05011-B0i2L#..LN145,150,165,170,190199902-200108

MARK B,MARK B,(L)

main11115-05011-D0i2L#..LN145,150,165,170,190199902-200108

MARK D,MARK D,(L)

main11115-05011-F0i2L#..LN145,150,165,170,190199902-200108

MARK F,MARK F,(L)

main11115-30040-A0i2KDFTV..KDN145,150,165,170,190200108

MARK A

sub11115-30041

main11115-30040-B0i2KDFTV..KDN145,150,165,170,190200108

MARK B

sub11115-30041

main11115-30040-C0i2KDFTV..KDN145,150,165,170,190200108

MARK C

sub11115-30041

main11115-30040-D0i2KDFTV..KDN145,150,165,170,190200108

MARK D

sub11115-30041

main11115-30040-E0i2KDFTV..KDN145,150,165,170,190200108

MARK E

sub11115-30041

main11115-54084-B0i2L#..LN145,150,165,170,190199708-200108

MARK B,MARK B,(J)

main11115-54084-D0i2L#..LN145,150,165,170,190199708-200108

MARK D,MARK D,(J)

main11115-54084-F0i2L#..LN145,150,165,170,190199708-200108

MARK F,MARK F,(J)

main11115-75030i2RZFE..RZN168,173199708-199903

T=1.25

sub11115-75031

main11115-75031i2RZFE..RZN168,173199903-200108

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015i2KDFTV..KDN145,150,165,170,190200206-200405

main90341-14015i2KDFTV..KDN145,150,165,170,190200405-200508

(J)

main90341-27006i2RZFE..RZN168,173199708-200108

main90341-T0005i2KDFTV..KDN145,150,165,170,190200410-200508

(L)

11122BUSH, INTAKE VALVE GUIDE

main11122-16010i2RZFE..RZN168,173199708-200108

STD

sub11122-16020

main11122-30020i2KDFTV..KDN145,150,165,170,190200108

O/S 0.05

main11122-54020i2L..LN145..RHD..IV3199708-200108

STD

sub11122-17020

main11123-16010i2RZFE..RZN168,173199708-200108

O/S 0.05

main11123-30020i2KDFTV..KDN145,150,165,170,190200108

STD

main11123-54020i2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190199708-200108

O/S 0.05

sub11123-17020

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020i2KDFTV..KDN145,150,165,170,190200108

O/S 0.05

main11122-54020i2L..LN145..RHD..IV3199708-200108

STD

sub11122-17020

main11123-30020i2KDFTV..KDN145,150,165,170,190200108

STD

main11123-54020i2L..LN145..RHD..IV3199708-200108

O/S 0.05

sub11123-17020

main11126-50050i2RZFE..RZN168,173..DCB,XTR199708-200108

STD

main11127-50050i2RZFE..RZN168..SCB199708-200108

O/S 0.05

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90311-32019i2KDFTV..KDN145,150,165,170,190200108

11155APIN, RING W/HEAD

main90253-10004i2KDFTV..KDN145,150,165,170,190200206-200405

main90253-10004i2KDFTV..KDN145,150,165,170,190200405

(J)

main90253-T0001i2KDFTV..KDN145,150,165,170,190200410

(L)

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06149i2KDFTV..KDN145,150,165,170,190200108

S=9 & 16,L=37

main92122-80616i2L#..LN145,150,165,170,190199708-200108

S=9 & 9,L=25

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i2L#..LN145,150,165,170,190199708-200108

main90119-07009i2RZFE..RZN168,173199708-200108

main90119-07011i2KDFTV..KDN145,150,165,170,190200206

11183PLUG, SEMICIRCULAR

main11183-50010i2RZFE..RZN168,173199708-200108

main11183-54020i2L#..LN145,150,165,170,190199708-200108

main11183-67020i2KDFTV..KDN145,150,165,170,190200108

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-75020i2RZFE..RZN168,173199708-200108

main11210-30081i2KDFTV..KDN145,150,165,170,190200108-200508

sub11210-30082

main11210-54042i2L..LN145..RHD;2LT..LN165,170199708-200108

main11210-54051i2L#..LN145,150,165,170,190..LHD199708-200108

11213GASKET, CYLINDER HEAD COVER

main11213-30020i2KDFTV..KDN145,150,165,170,190200108-200508

sub11213-30021

main11213-54050i2L#..LN145,150,165,170,190199708-200108

main11213-75030i2RZFE..RZN168,173199708-200108

11229GASKET, CYLINDER HEAD COVER, NO.3

main23682-30020i2KDFTV..KDN145,150,165,170,190200108-200508

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i2KDFTV..KDN145,150,165,170,190200108-200508

main12180-65011i2RZFE..RZN168,173199708-200108

main12180-70020i2L#..LN145,150,165,170,190199708-200108

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i2L#..LN145,150,165,170,190199708-200108

main90430-37140i2RZFE..RZN168,173199708-200508

12282DHANGER, ENGINE, NO.2

main12282-67030i2KDFTV..KDN145,150,165,170,190200108

12284AHANGER, ENGINE, NO.1 UPPER

main12284-30020i2KDFTV..KDN145,150,165,170,190200108

9017906110

main90179-06110

9017906208

main90179-06208

9017908251

main90179-08251

91511G0628

main91511-G0628

9151261014

main91512-61014

9151281025

main91512-81025

9164281030

main91642-81030

26 parts on this diagram · 4 diagrams in section
