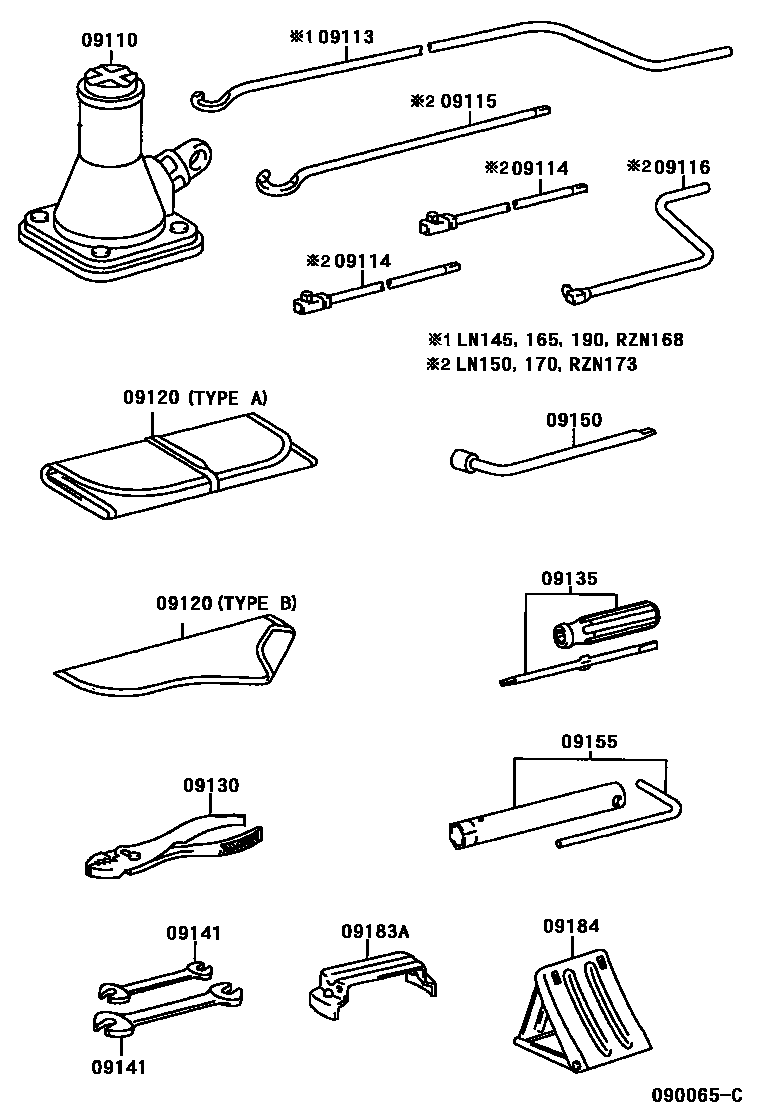

STANDARD TOOL

09110JACK ASSY

main09111-35160iKDN145,150199708-200508

main09111-35170iLN165,170,190,RZN168,173199708-200508

09113HANDLE, JACK

main09113-35130iLN145,165,190,RZN168199708-200108

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iLN150,170,RZN173199711-200108

09115ROD SUB-ASSY, JACK HANDLE

main09115-34010iLN150,170,RZN173..CBU199711-199808

VW BRAND

main09115-35120iKDN150,170199805-200108

main09115-35120iLN150,170,RZN173..CBU199711-200108

TOYOTA BRAND

09116LEVER, JACK HANDLE

main09116-34010iKDN150,170199711-200108

09120BAG, TOOL

main09120-12011iKDN145,165,190199708-200108

TYPE A:REFER TO ILLUSTRATION

main09120-26021iLN165..RHD199708-200108

TYPE A:REFER TO ILLUSTRATION;IRELAND SPEC

sub09120-35170

main09120-26021iKDN145..RHD200208

sub09120-35170

main09120-34020iLN150,170,RZN173199711-200108

TYPE B:REFER TO ILLUSTRATION

main09120-35150iKDN150..RHD200108

TYPE B:REFER TO ILLUSTRATION;IRELAND SPEC

09130PLIERS

main99913-11500iLN145,150,165,170,190,RZN168,173199708-200108

09135DRIVER, SCREW

main90080-99005iRZN168;LN145..SCB;LN145..DCB..DLX..CBU;LN150,165,170,RZN173..CBU199708-199808

VW BRAND

main99915-10700iRZN168;LN145,165..SCB;LN165..DCB..CBU;LN145,150,170,RZN173..(DCB,XTR)..DLX..CBU199708-200108

TOYOTA BRAND

main99915-10700iLN145,190..SR;LN145,150,165,170..(DCB,XTR)..IV3199805-200108

09141SPANNER

main90080-99006iRZN168;LN145..SCB;LN145..DCB..DLX..CBU;LN150,165,170,RZN173..CBU199708-199808

8 X 10,VW BRAND

main90080-99007iRZN168;LN145..SCB;LN145..DCB..DLX..CBU;LN150,165,170,RZN173..CBU199708-199808

12 X 14,VW BRAND

main99914-10810iKDN145,150,165,170,190199805-200108

8 X 10

main99914-10810iRZN168;LN145,165..SCB;LN165..DCB..CBU;LN145,150,170,RZN173..(DCB,XTR)..DLX..CBU199708-200108

8 X 10,TOYOTA BRAND

main99914-11214iLN145,190..SR;LN145,150,165,170..(DCB,XTR)..IV3199805-200108

12 X 14

main99914-11214iRZN168;LN145,165..SCB;LN165..DCB..CBU;LN145,150,170,RZN173..(DCB,XTR)..DLX..CBU199708-200108

12 X 14,TOYOTA BRAND

09150WRENCH, HUB NUT BOX

main09150-35070iLN145,150,165,170,190,RZN168,173199708-200108

09155WRENCH, SPARK PLUG

main09155-74010iRZN168,173199708-200108

09183AREPLACER, WHEEL CAP

main09183-60010iLN165,170,RZN168,173199708-200108

09184STOPPER, WHEEL

main09184-00010iKDN150..RHD200108

main09184-60010iLN165..RHD199708-200108

13 parts on this diagram · 1 diagram in section
