EPC Data

WIRING & CLAMP

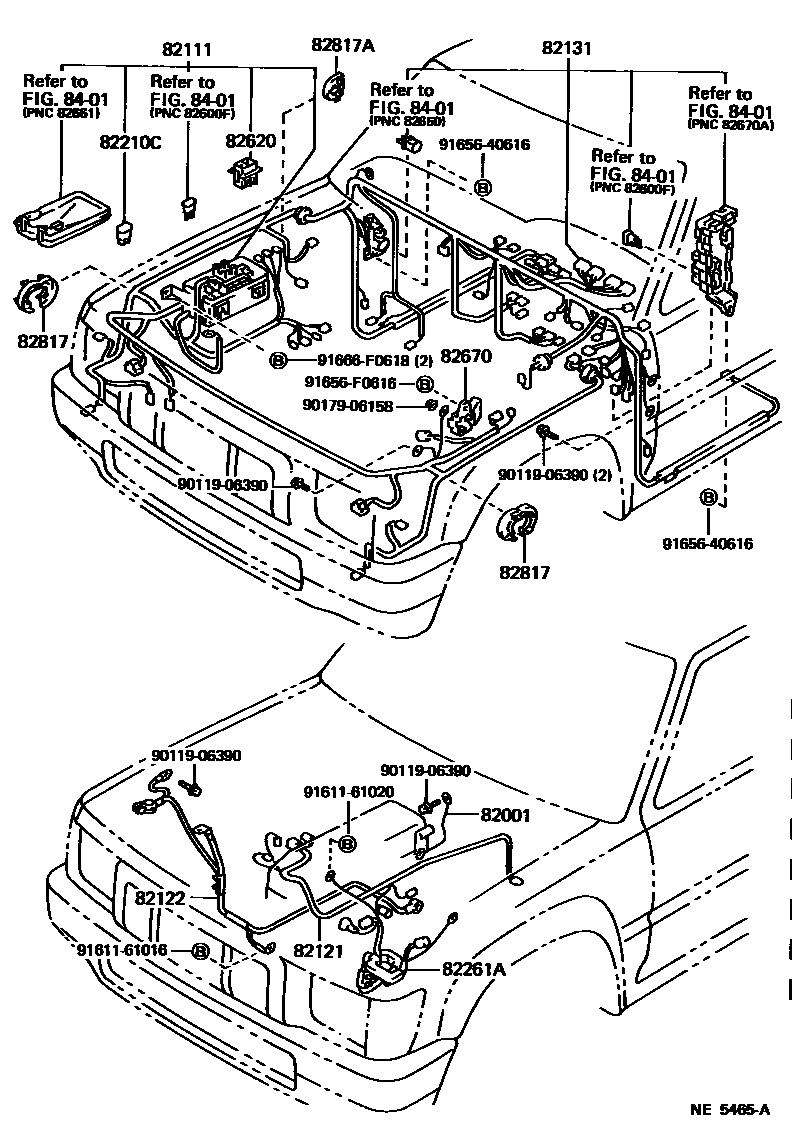

Parts diagram
82001CABLE, BOND, NO.1
main90980-07108i198808-199501
main90980-07300i198808-199111
NO.1
main90980-07301i198808-199409
NO.2
main90980-07340i199111-199511
NO.1
main90980-07370i199409-199511
NO.2
82111WIRE, ENGINE ROOM MAIN
main82111-35260i199010-199108
main82111-35270i199010-199108
main82111-35280i199010-199108
main82111-35290i199010-199108
main82111-35300i199108-199501
main82111-35310i199108-199501
main82111-35380i199108-199208
main82111-35381i199208-199501
main82111-35390i199108-199208
main82111-35391i199208-199501
main82111-35400i199108-199208
main82111-35401i199208-199501
main82111-35410i199108-199208
main82111-35411i199208-199308
main82111-35412i199308-199511
main82111-3D210i199308-199511
W(4-WHEEL *66)
main82111-89147i198808-199008
main82111-89148i198808-199008
W(12V 60A ALTERNATOR)
main82111-89148i198808-198908
main82111-89149i198808-199008
main82111-89150i198808-199008
main82111-89151i198808-199008
main82111-89207i198904-199008
main82111-89208i198908-199008
main82111-89209i198908-199008
main82111-89210i198908-199008
main82111-89211i198908-199008
main82111-89212i198908-199008
main82111-89227i199008-199108
main82111-89228i199008-199108
main82111-89229i199008-199010
main82111-89230i199008-199010
main82111-89233i199008-199108
main82111-89234i199008-199108
main82111-89235i199008-199010
main82111-89236i199008-199010
82121WIRE, ENGINE
main82121-35080i199101-199108
main82121-35110i199108-199208
main82121-35111i199208-199308
main82121-35112i199308-199501
main82121-35120i199108-199208
CALIFORNIA SPEC
main82121-35121i199208-199308
CALIFORNIA SPEC
main82121-35122i199308-199501
CALIFORNIA SPEC
main82121-35130i199108-199208
main82121-35131i199208-199308
main82121-35132i199308-199501
main82121-35140i199108-199208
CALIFORNIA SPEC
main82121-35141i199208-199308
CALIFORNIA SPEC
main82121-35142i199308-199501
CALIFORNIA SPEC
main82121-35210i199108-199208
main82121-35211i199208-199308
main82121-35212i199308-199501
main82121-35220i199108-199208
CALIFORNIA SPEC
main82121-35221i199208-199308
CALIFORNIA SPEC
main82121-35230i199108-199208
main82121-35231i199208-199308
main82121-35232i199308-199501
main82121-35240i199108-199208
CALIFORNIA SPEC
main82121-35241i199208-199308
CALIFORNIA SPEC
main82121-35250i199108-199208
main82121-35251i199208-199308
main82121-35252i199308-199408
main82121-35253i199408-199511
main82121-89193i198808-199008
main82121-89194i198808-198908
main82121-89195i198808-198908
main82121-89196i198808-198908
main82121-89197i198808-198908
CALIFORNIA SPEC
main82121-89198i198808-198908
CALIFORNIA SPEC
main82121-89205i198808-198908
main82121-89206i198808-198908
main82121-89209i198808-198908
main82121-89224i198808-199008
W(TACHOMETER)
main82121-89242i198904-198908
main82121-89243i198904-198908
CALIFORNIA SPEC
main82121-89244i198904-198908
main82121-89245i198904-198908
main82121-89251i198908-199008
W(*ADD)
main82121-89252i198908-199008
main82121-89253i198908-199008
CALIFORNIA SPEC
main82121-89254i198908-199008
main82121-89255i198908-199008
CALIFORNIA SPEC
main82121-89258i198908-199008
main82121-89260i198908-199008
main82121-89263i198908-199008
main82121-89264i198908-199008
main82121-89265i198908-199008
CALIFORNIA SPEC
main82121-89266i198908-199008
CALIFORNIA SPEC
main82121-89273i198908-199008
main82121-89275i198908-199008
main82121-89279i199008-199108
main82121-89280i199008-199108
CALIFORNIA SPEC
main82121-89281i199008-199108
main82121-89282i199008-199108
CALIFORNIA SPEC
main82121-89283i199008-199108
main82121-89284i199008-199108
main82121-89291i199008-199108
main82121-89292i199008-199108
CALIFORNIA SPEC
main82121-89293i199008-199108
main82121-89294i199008-199108
CALIFORNIA SPEC
main82121-89295i199008-199101
82122WIRE, ENGINE, NO.2
main82122-35280i199308-199501
main82122-35310i199308-199501
main82122-35320i199308-199511
main82122-89108i198808-199308
main82122-89109i198808-198908
main82122-89110i198904-199008
main82122-89111i198808-199008
main82122-89112i198904-198908
main82122-89132i199008-199108
main82122-89132i198908-199008
W(*66)
main82122-89133i198908-199308
main82122-89134i198908-199308
82131WIRE, COWL
main82131-35310i199101-199108
main82131-35320i199101-199108
W(*66)
main82131-35330i199101-199108
W(CRUISE CONTROL)
main82131-35340i199101-199108
W(*66 & *CRC)
main82131-35390i199101-199108
main82131-35400i199101-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35410i199101-199108
ILLUMINATION PACKAGE & W(*CRC)
main82131-35420i199101-199108
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-35430i199101-199108
main82131-35440i199101-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35450i199101-199108
ILLUMINATION PACKAGE & W(*CRC)
main82131-35460i199101-199108
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-35480i199101-199108
W(*66)
main82131-35510i199101-199108
main82131-35520i199101-199108
ILLUMINATION PACKAGE & W(*CRC)
main82131-35530i199101-199108
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-35580i199101-199108
main82131-35590i199101-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35600i199101-199108
ILLUMINATION PACKAGE & W(*CRC)
main82131-35610i199101-199108
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-35620i199101-199108
main82131-35630i199101-199108
ILLUMINATION PACKAGE & W(*CRC)
main82131-35640i199101-199108
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-35690i199108-199208
main82131-35691i199208-199308
main82131-35692i199308-199501
main82131-35700i199108-199208
main82131-35701i199208-199308
main82131-35702i199308-199501
main82131-35710i199108-199208
W(*66)
main82131-35711i199208-199308
W(*66)
main82131-35712i199308-199501
W(*66)
main82131-35720i199108-199208
W(CRUISE CONTROL)
main82131-35721i199208-199308
W(CRUISE CONTROL)
main82131-35722i199308-199501
W(CRUISE CONTROL)
main82131-35730i199108-199208
W(*66 & *CRC)
main82131-35731i199208-199308
W(*66 & *CRC)
main82131-35732i199308-199501
W(*66 & *CRC)
main82131-35740i199108-199208
main82131-35741i199208-199308
main82131-35742i199308-199501
main82131-35750i199108-199208
W(*66)
main82131-35751i199208-199308
W(*66)
main82131-35752i199308-199501
W(*66)
main82131-35760i199108-199208
W(CRUISE CONTROL)
main82131-35761i199208-199308
W(CRUISE CONTROL)
main82131-35762i199308-199501
W(CRUISE CONTROL)
main82131-35770i199108-199208
W(*66 & *CRC)
main82131-35771i199208-199308
W(*66 & *CRC)
main82131-35772i199308-199501
W(*66 & *CRC)
main82131-35780i199108-199208
main82131-35781i199208-199308
main82131-35782i199308-199501
main82131-35790i199108-199208
W(*66)
main82131-35791i199208-199308
W(*66)
main82131-35792i199308-199501
W(*66)
main82131-35800i199108-199208
W(CRUISE CONTROL)
main82131-35801i199208-199308
W(CRUISE CONTROL)
main82131-35802i199308-199501
W(CRUISE CONTROL)
main82131-35810i199108-199208
W(*66 & *CRC)
main82131-35811i199208-199308
W(*66 & *CRC)
main82131-35812i199308-199501
W(*66 & *CRC)
main82131-35860i199108-199208
main82131-35861i199208-199308
main82131-35862i199308-199501
main82131-35870i199108-199208
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-35871i199208-199308
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-35872i199308-199501
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-35880i199108-199208
ILLUMINATION PACKAGE & W(*CRC)
main82131-35881i199208-199308
ILLUMINATION PACKAGE & W(*CRC)
main82131-35882i199308-199501
ILLUMINATION PACKAGE & W(*CRC)
main82131-35890i199108-199208
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-35891i199208-199308
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-35892i199308-199501
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-3D010i199108-199208
main82131-3D011i199208-199308
main82131-3D012i199308-199501
main82131-3D020i199108-199208
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-3D021i199208-199308
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-3D022i199308-199501
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-3D030i199108-199208
ILLUMINATION PACKAGE & W(*CRC)
main82131-3D031i199208-199308
ILLUMINATION PACKAGE & W(*CRC)
main82131-3D032i199308-199501
ILLUMINATION PACKAGE & W(*CRC)
main82131-3D040i199108-199208
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-3D041i199208-199308
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-3D042i199308-199501
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-3D050i199108-199208
main82131-3D051i199208-199308
main82131-3D052i199308-199501
main82131-3D070i199108-199208
W(*66)
main82131-3D071i199208-199308
W(*66)
main82131-3D072i199308-199501
W(*66)
main82131-3D080i199108-199208
main82131-3D081i199208-199308
main82131-3D082i199308-199501
main82131-3D090i199108-199208
W(*66)
main82131-3D091i199208-199308
W(*66)
main82131-3D092i199308-199501
W(*66)
main82131-3D100i199108-199208
main82131-3D101i199208-199308
main82131-3D102i199308-199501
main82131-3D110i199108-199208
W(*66)
main82131-3D111i199208-199308
W(*66)
main82131-3D112i199308-199501
W(*66)
main82131-3D120i199108-199208
W(CRUISE CONTROL)
main82131-3D121i199208-199308
W(CRUISE CONTROL)
main82131-3D130i199108-199208
W(*66 & *CRC)
main82131-3D131i199208-199308
W(*66 & *CRC)
main82131-3G120i199108-199208
main82131-3G121i199208-199308
main82131-3G122i199308-199408
main82131-3G123i199408-199511
main82131-3G130i199108-199208
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-3G131i199208-199308
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-3G132i199308-199408
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-3G133i199408-199511
LIGHTING PACKAGE,W(*RW & *RCM)
main82131-3G140i199108-199208
ILLUMINATION PACKAGE & W(*CRC)
main82131-3G141i199208-199308
ILLUMINATION PACKAGE & W(*CRC)
main82131-3G150i199108-199208
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-3G151i199208-199308
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-3G152i199308-199408
LIGHTING PACKAGE,W(*RW & *RCM & *CRC)
main82131-3G153i199408-199511
LIGHTING PACKAGE & W(*PW & *RCM & *CRC)
main82131-3N060i199308-199408
W(4-WHEEL *66)
main82131-3N061i199408-199511
W(4-WHEEL *66)
main82131-3N070i199308-199408
LIGHTING PACKAGE,W(4-WHEEL *66 & *PW & *CRC & *RCM)
main82131-3N071i199408-199511
LIGHTING PACKAGE & W(4-WHEEL *66 & *PW & *RCM)
main82131-3N090i199308-199408
LIGHTING PACKAGE & W(4-WHEEL *66 & *PW & *CRC & *RCM)
main82131-3N091i199408-199511
LIGHTING PACKAGE & W(4-WHEEL *66 & *PW & *CRC & *RCM)
main82131-89611i198808-199008
main82131-89612i198808-199008
W(DIGITAL CLOCK) OR W(CIGARETTE LIGHTER)
main82131-89613i198808-198908
main82131-89614i198808-198908
W(DIGITAL CLOCK) OR W(CIGARETTE LIGHTER)
main82131-89615i198808-199008
main82131-89616i198808-199008
W(TACHOMETER)
main82131-89616i198808-198908
W(FIXED REAR WINDOW DEFOGGER) OR W(*TAC)
main82131-89617i198808-199008
main82131-89618i198808-198908
W(CRUISE CONTROL)
main82131-89619i198808-198908
main82131-89620i198808-198908
main82131-89621i198808-198908
W(CRUISE CONTROL)
main82131-89623i198808-198908
main82131-89624i198808-198908
main82131-89625i198808-198908
ILLUMINATION PACKAGE
main82131-89626i198808-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89627i198808-198908
ILLUMINATION PACKAGE & W(*CRC)
main82131-89628i198808-198908
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89629i198808-198908
main82131-89630i198808-198908
ILLUMINATION PACKAGE
main82131-89631i198808-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89632i198808-198908
ILLUMINATION PACKAGE & W(*CRC & *RCM)
main82131-89632i198808-198908
ILLUMINATION PACKAGE & W(*CRC)
main82131-89633i198808-198908
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89634i198808-198908
main82131-89635i198808-198908
ILLUMINATION PACKAGE
main82131-89636i198808-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89637i198808-198908
ILLUMINATION PACKAGE & W(*CRC)
main82131-89638i198808-198908
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89756i198904-198908
main82131-89757i198904-198908
ILLUMINATION PACKAGE
main82131-89758i198904-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89759i198904-198908
ILLUMINATION PACKAGE & W(*CRC)
main82131-89760i198904-198908
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89761i198904-198908
main82131-89762i198904-198908
ILLUMINATION PACKAGE
main82131-89763i198904-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89764i198904-198908
ILLUMINATION PACKAGE & W(*CRC)
main82131-89765i198904-198908
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89766i198904-198908
main82131-89767i198904-198908
ILLUMINATION PACKAGE
main82131-89768i198904-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89769i198904-198908
ILLUMINATION PACKAGE & W(*CRC)
main82131-89770i198904-198908
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89820i198908-199008
main82131-89821i198908-199008
main82131-89823i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89824i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89825i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89826i198908-199008
main82131-89828i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89829i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89830i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89831i198908-199008
main82131-89833i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89834i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89835i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89841i198908-199008
main82131-89842i198908-199008
W(TACHOMETER)
main82131-89843i198908-199008
main82131-89844i198908-199008
main82131-89845i198908-199008
main82131-89846i198908-199008
W(CRUISE CONTROL)
main82131-89848i198908-199008
main82131-89851i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89852i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89858i198908-199008
main82131-89860i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89861i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89862i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89863i198908-199008
main82131-89865i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89866i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89867i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89868i198908-199008
main82131-89871i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89872i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89878i198908-199008
main82131-89881i198908-199008
ILLUMINATION PACKAGE & W(*CRC)
main82131-89882i198908-199008
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89A26i198908-199008
main82131-89A27i198908-199008
W(CRUISE CONTROL)
main82131-89A28i198908-199008
main82131-89A29i198908-199008
main82131-89A30i198908-199008
W(CRUISE CONTROL)
main82131-89A56i199008-199108
main82131-89A57i199008-199108
W(*66)
main82131-89A58i199008-199101
main82131-89A59i199008-199101
W(*66)
main82131-89A60i199008-199101
W(CRUISE CONTROL)
main82131-89A61i199008-199101
W(*66 & *CRC)
main82131-89A62i199008-199108
main82131-89A63i199008-199108
W(*66)
main82131-89A64i199008-199108
W(CRUISE CONTROL)
main82131-89A65i199008-199108
W(*66 & *CRC)
main82131-89A66i199008-199108
main82131-89A67i199008-199108
W(*66)
main82131-89A68i199008-199108
W(CRUISE CONTROL)
main82131-89A69i199008-199108
W(*66 & *CRC)
main82131-89A74i199008-199101
main82131-89A75i199008-199101
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89A76i199008-199101
ILLUMINATION PACKAGE & W(*CRC)
main82131-89A77i199008-199101
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89A78i199008-199101
main82131-89A79i199008-199101
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89A80i199008-199101
ILLUMINATION PACKAGE & W(*CRC)
main82131-89A81i199008-199101
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89A82i199008-199108
main82131-89A84i199008-199101
W(*66)
main82131-89A85i199008-199108
main82131-89A86i199008-199108
W(*66)
main82131-89A87i199008-199108
main82131-89A88i199008-199108
W(*66)
main82131-89A89i199008-199108
W(CRUISE CONTROL)
main82131-89A90i199008-199108
W(*66 & *CRC)
main82131-89A93i199008-199101
main82131-89A94i199008-199101
ILLUMINATION PACKAGE & W(*CRC)
main82131-89A95i199008-199101
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89B85i199008-199101
main82131-89B86i199008-199101
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89B87i199008-199101
ILLUMINATION PACKAGE & W(*CRC)
main82131-89B88i199008-199101
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89B89i199008-199108
main82131-89B90i199008-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89B91i199008-199108
ILLUMINATION PACKAGE & W(*CRC)
main82131-89B92i199008-199108
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89B93i199008-199101
main82131-89B94i199008-199101
ILLUMINATION PACKAGE & W(*CRC)
main82131-89B95i199008-199101
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
main82131-89B99i199008-199108
main82131-89C01i199008-199108
ILLUMINATION PACKAGE & W(*CRC)
main82131-89C02i199008-199108
ILLUMINATION PACKAGE & W(*PW & CRUISE CONTROL & *RCM)
82210CFUSIBLE LINK
main90982-08188i198808-199511
30A,TERM.:FEMALE,PNK
main90982-08189i198808-199511
40A,TERM.:FEMALE,GRN
main90982-08190i198808-199008
60A,TERM.:FEMALE,YEL
main90982-08202i199308-199511
60A,TERM.:MALE,YEL
main90982-08203i198808-199511
80A,TERM.:MALE,BLK
main90982-08246i198904-199108
100A,TERM.:MALE,BLUE
main90982-08253i198812-198912
80A,TERM.:MALE,BLK
82261AWIRE, ALTERNATOR
main82261-35300i199108-199208
main82261-35301i199208-199501
main82261-89102i198808-199008
main82261-89103i198904-199008
main82261-89116i198904-199008
main82261-89117i199008-199108
main82261-89118i199008-199102
main82261-89119i199008-199108
82620BLOCK ASSY, FUSIBLE LINK
main82620-35020i199108-199511
main82620-89101i198808-199108
82670BLOCK ASSY, JUNCTION, NO.1
main82670-89107i198808-199501
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-89123i198808-199501
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-89130i198808-199511
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011906390
main90119-06390
9017906158
main90179-06158
9161161016
main91611-61016
9161161020
main91611-61020
9165640616
main91656-40616
91656F0616
main91656-F0616
91666F0618
main91666-F0618

19 parts on this diagram · 15 diagrams in section

WIRING & CLAMP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
