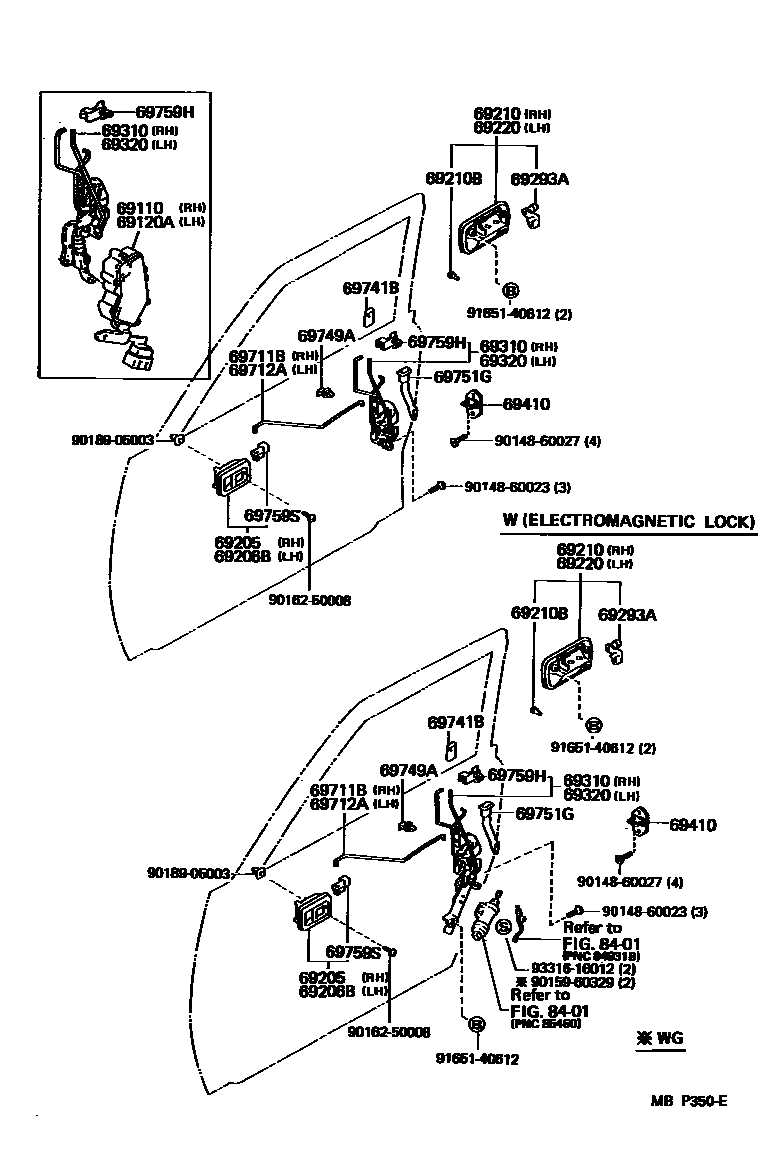

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-35010iVZN120,90..SR5199108-199511

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-35010iVZN120,90..SR5199108-199511

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-89105-02iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199108

RED,TRIM3#

sub69205-89105

sub69205-89107

main69205-89105-03iRN8#,90,VZN85,9#198808-198901

GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-04iRN8#,90,VZN85,9#198808-198901

BLUE,TRIM8#

sub69205-89105

sub69205-89107

main69205-89105-06iRN8#,90,VZN85,9#198808-198901

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-B0iRN12#,8#,90,VZN120,85,9#198901-199511

MEDIUM GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-E0iRN12#,8#,90,VZN120,85,9#198901-199108

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-E1iVZN120199108-199308

TAN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-E2iVZN120199308-199511

OAK,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-J0iRN12#,8#,90,VZN120,85,9#198901-199511

MEDIUM BLUE,TRIM8#

sub69205-89105

sub69205-89107

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-89105-02iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199108

RED,TRIM3#

sub69206-89105

sub69206-89107

main69206-89105-03iRN8#,90,VZN85,9#198808-198901

GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-04iRN8#,90,VZN85,9#198808-198901

BLUE,TRIM8#

sub69206-89105

sub69206-89107

main69206-89105-06iRN8#,90,VZN85,9#198808-198901

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-B0iRN12#,8#,90,VZN120,85,9#198901-199511

MEDIUM GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-E0iRN12#,8#,90,VZN120,85,9#198901-199108

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-E1iVZN120199108-199308

TAN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-E2iVZN120199308-199511

OAK,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-J0iRN12#,8#,90,VZN120,85,9#198901-199511

MEDIUM BLUE,TRIM8#

sub69206-89105

sub69206-89107

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-89110iRN12#,8#,90,VZN120,85,9#198808-199511

NO PAINT REQ.

main69210-89111iVZN85,95;RN12#,8#,90,VZN120,90..DLX,SR5198808-199511

PLATED

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iRN12#,8#,90,VZN120,85,9#198808-199511

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-89110iRN12#,8#,90,VZN120,85,9#198808-199511

NO PAINT REQ.

main69220-89111iVZN85,95;RN12#,8#,90,VZN120,90..DLX,SR5198808-199511

PLATED

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iRN12#,8#,90,VZN120,85,9#198808-199511

RH

main69293-12040iRN12#,8#,90,VZN120,85,9#198808-199511

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-35040iVZN90..SR5199108-199308

W(POWER WINDOW)

main69310-35090iVZN120199108-199308

W(POWER WINDOW)

main69310-35120iRN8#,90,VZN90199308-199501

main69310-35130iVZN90..SR5199308-199501

W(POWER WINDOW)

main69310-35200iVZN120199308-199511

sub69310-35180

main69310-35210iVZN120199308-199511

W(POWER WINDOW)

main69310-89119iRN8#,90,VZN85,9#198808-199308

main69310-89121iRN85,90,VZN90..SR5198808-199108

W(POWER WINDOW)

main69310-89125iRN12#,VZN120198904-199308

main69310-89127iRN12#,VZN120198904-199108

W(POWER WINDOW)

69320LOCK ASSY, FRONT DOOR, LH

main69320-35040iVZN90..SR5199108-199308

W(POWER WINDOW)

main69320-35080iVZN120199108-199308

W(POWER WINDOW)

main69320-35110iRN8#,90,VZN90199308-199501

main69320-35120iVZN90..SR5199308-199501

W(POWER WINDOW)

main69320-35180iVZN120199308-199511

sub69320-35190

main69320-35190iVZN120199308-199511

W(POWER WINDOW)

main69320-89118iRN8#,90,VZN85,9#198808-199308

main69320-89120iRN85,90,VZN90..SR5198808-199108

W(POWER WINDOW)

main69320-89124iRN12#,VZN120198904-199308

main69320-89125iRN12#,VZN120198904-199108

W(POWER WINDOW)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iRN12#,8#,90,VZN120,85,9#198808-199511

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-89104iRN8#,90,VZN85,9#198808-199501

main69711-89105iRN12#,VZN120198904-199511

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-89104iRN8#,90,VZN85,9#198808-199501

main69712-89105iRN12#,VZN120198904-199511

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-89104-02iRN85,90..DLX;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,VZN120,85,9#199004-199108

RED,TRIM3#

sub69741-89104

sub69741-12040

main69741-89104-03iVZN90..SR5199004-199108

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-04iRN12#,8#,90,VZN120,85,9#199008-199108

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-06iRN12#,8#,90,VZN120,85,9#199008-199108

BROWN,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-B0iRN8#,90,VZN120,85,9#199108-199206

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-B1iRN8#,90,VZN120,85,9#199206-199511

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-E2iVZN120199108-199308

TAN,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-E3iVZN120199308-199511

OAK,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-J0iRN8#,90,VZN120,85,9#199108-199206

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-J1iRN8#,90,VZN120,85,9#199206-199511

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-90K00-12iRN12#,8#,90,VZN120,85,9#..4FC,4HC,5F198808-199004

RED,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-23iRN8#,90,VZN85,9#198808-198901

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-44iRN8#,90,VZN85,9#198808-198901

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-46iRN8#,90,VZN85,9#198808-198901

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-B1iRN12#,8#,90,VZN120,85,9#198901-199004

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E1iRN12#,8#,90,VZN120,85,9#198901-199004

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J1iRN12#,8#,90,VZN120,85,9#198901-199004

MEDIUM BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-89101iRN12#,8#,90,VZN120,85,9#198808-199511

69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-89102-02iRN80..CND;VZN85,95..IV6198808-199108

RED,TRIM3#,RH

sub69751-89102

main69751-89102-03iRN80,VZN85,95..STD198808-198901

GRAY,TRIM1#,RH

sub69751-89102

main69751-89102-04iRN80,VZN85,95..STD198808-198901

BLUE,TRIM8#,RH

sub69751-89102

main69751-89102-06iRN80,VZN85,95..STD198808-198901

BROWN,TRIM4#,RH

sub69751-89102

main69751-89102-B0iRN80,VZN85,95..STD198901-199501

MEDIUM GRAY,TRIM1#,RH

sub69751-89102

main69751-89102-E0iRN80,VZN85,95..STD198901-199108

BROWN,TRIM4#,RH

sub69751-89102

main69751-89102-J0iRN80,VZN85,95..STD198901-199501

MEDIUM BLUE,TRIM8#,RH

sub69751-89102

main69751-89103iRN8#,90,VZN85,90..DLX,SR5198808-199501

RH

main69751-89106iRN12#,VZN120198904-199511

RH

main69752-89101-02iRN80..CND;VZN85,95..IV6198808-199108

RED,TRIM3#,LH

sub69752-89101

main69752-89101-03iRN80,VZN85,95..STD198808-198901

GRAY,TRIM1#,LH

sub69752-89101

main69752-89101-04iRN80,VZN85,95..STD198808-198901

BLUE,TRIM8#,LH

sub69752-89101

main69752-89101-06iRN80,VZN85,95..STD198808-198901

BROWN,TRIM4#,LH

sub69752-89101

main69752-89101-B0iRN80,VZN85,95..STD198901-199501

MEDIUM GRAY,TRIM1#,LH

sub69752-89101

main69752-89101-E0iRN80,VZN85,95..STD198901-199108

BROWN,TRIM4#,LH

sub69752-89101

main69752-89101-J0iRN80,VZN85,95..STD198901-199501

MEDIUM BLUE,TRIM8#,LH

sub69752-89101

main69752-89102iRN8#,90,VZN85,90..DLX,SR5198808-199501

LH

main69752-89103iRN12#,VZN120198904-199511

LH

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iRN12#,8#,90,VZN120,85,9#198808-199511

YELLOW

main69759-20050iRN12#,8#,90,VZN120,85,9#198808-199511

BROWN

main69759-20100iVZN90..SR5199308-199501

W(*PW),RED

main69759-20100iRN12#,8#,90,VZN120,85,9#198808-199511

RED

main69759-20110iRN12#,8#,90,VZN120,85,9#198808-199511

BLACK

main69759-24010iRN12#,8#,90,VZN120,85,9#198808-199511

NATURAL

main69759-24020iRN12#,8#,90,VZN120,85,9#198808-199511

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iRN12#,8#,90,VZN120,85,9#198808-199511

RH

main69759-20070iRN12#,8#,90,VZN120,85,9#198808-199511

LH

8401

9014860023

main90148-60023

9014860027

main90148-60027

9015960329

main90159-60329

9016250008

main90162-50008

9018905003

main90189-05003

9165140612

main91651-40612

9331616012

main93316-16012

26 parts on this diagram · 1 diagram in section
