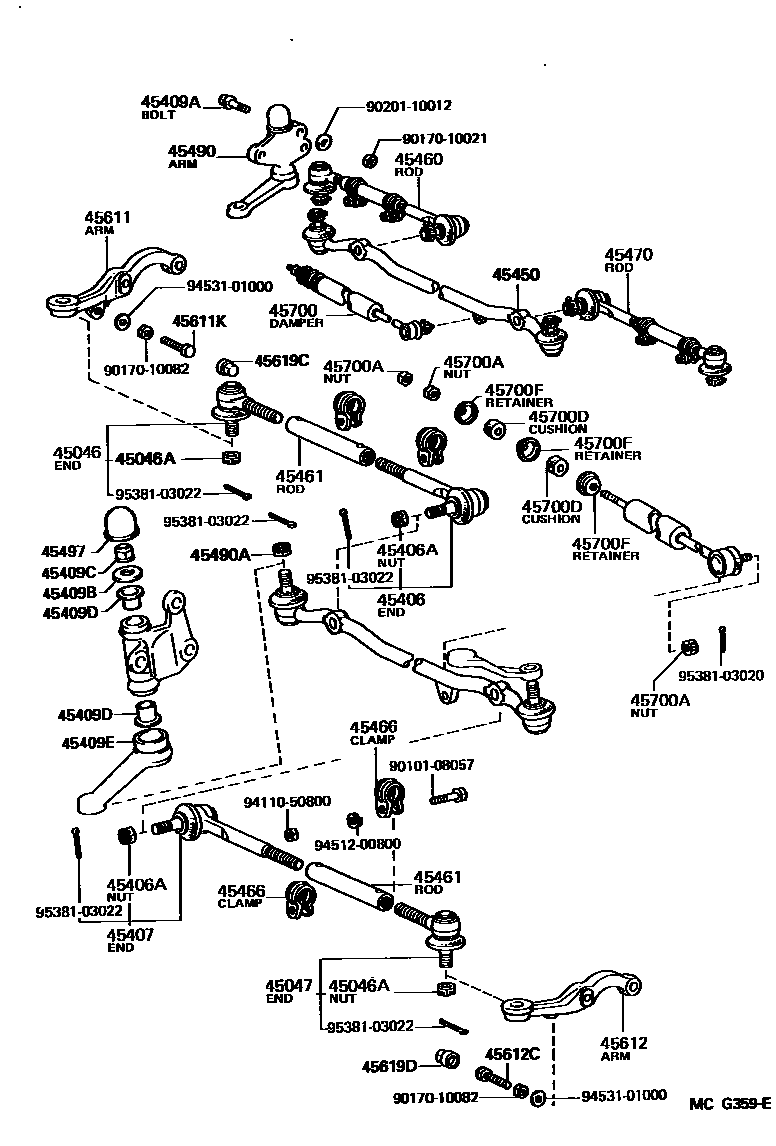

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1MANUAL STEERING 0005 1POWER STEERING 0007 1POWER STEERING 0008 1POWER STEERING

45046END SUB-ASSY, TIE ROD, RH

main45046-39215iRN8#,90,VZN85,9#198808-199501

sub45046-39235

main45046-39235iRN12#,VZN120198904-199510

sub45046-39355

main45046-39355iVZN120199510-199511

sub45046-39385

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iRN12#,VZN120198904-199511

45047END SUB-ASSY, TIE ROD, LH

main45046-39215iRN8#,90,VZN85,9#198808-199501

sub45046-39235

main45046-39235iRN12#,VZN120198904-199510

sub45046-39355

main45046-39355iVZN120199510-199511

sub45046-39385

45406ROD SUB-ASSY, TIE, RH

main45406-39155iRN8#,90,VZN85,9#198808-199501

main45406-39165iRN12#,VZN120198904-199108

sub45406-39175

sub45465-35040

main45406-39175iVZN120199108-199510

sub45406-39185

main45406-39185iVZN120199510-199511

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042iRN12#,8#,90,VZN120,85,9#198808-199511

45407ROD SUB-ASSY, TIE, LH

main45406-39155iRN8#,90,VZN85,9#198808-199501

main45406-39165iRN12#,VZN120198904-199108

sub45406-39175

sub45465-35040

main45406-39175iVZN120199108-199510

sub45406-39185

main45406-39185iVZN120199510-199511

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-12152iRN8#,90,VZN85,9#198808-199501

*12-1.25PX95-25

main90101-12153iRN8#,90,VZN85,9#198808-199501

*12-1.25PX35-26

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14010iRN8#,90,VZN85,9#198808-199511

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iRN12#,8#,90,VZN120,85,9#198808-199511

45409DBUSH(FOR IDLER ARM)

main90386-18002iRN12#,VZN120,9#..JPP198904-199501

main90386-19005iVZN120199108-199511

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iRN12#,8#,90,VZN120,85,9#198808-199511

45450ROD ASSY, STEERING RELAY

main45450-39175iRN8#,90,VZN85,9#198808-199501

main45451-39015iRN12#,VZN120198904-199108

sub45451-39145

main45451-39145iVZN120199108-199511

45460ROD ASSY, TIE, RH

main45460-39305iRN8#,90,VZN85,9#198808-199501

sub45460-39225

main45460-39335iRN12#,VZN120198904-199108

sub45460-39355

main45460-39355iVZN120199108-199511

sub45460-39505

45461ROD, STEERING TIE

main45465-35020iRN8#,90,VZN85,9#198808-199211

main45465-35030iRN12#,VZN120198904-199108

main45465-35040iVZN120199108-199511

main45465-35050iRN8#,90,VZN85,9#199211-199501

45466CLAMP, TIE ROD END

main45466-30020iRN12#,8#,90,VZN120,85,9#198808-199511

45470ROD ASSY, TIE, LH

main45460-39335iRN12#,VZN120198904-199108

sub45460-39355

main45460-39355iVZN120199301-199511

sub45460-39505

main45470-39085iRN8#,90,VZN85,9#198808-199501

sub45460-39305

main45470-39115iVZN120199108-199301

sub45460-39355

45490ARM ASSY, STEERING IDLER

main45490-39315iRN8#,90,VZN85,9#198808-199501

sub45490-39316

main45490-39325iRN12#,VZN120198904-199108

sub45490-39355

main45490-39365iVZN120199108-199511

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iRN12#,8#,90,VZN120,85,9#198808-199511

45497CAP, IDLER ARM BRACKET

main45497-28010iRN8#,90,VZN85,9#198808-199511

45611ARM, STEERING KNUCKLE, RH

main45611-35130iRN12#,VZN120198904-199511

main45611-35160iVZN85..10T;VZN85,95..IV6198808-199308

main45611-35170iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

45611KBOLT(FOR STEERING KNUCKLE STOPPER RH)

main90106-10032iRN8#,90,VZN85,9#198808-199501

45612ARM, STEERING KNUCKLE, LH

main45612-35150iRN12#,VZN120198904-199511

main45612-35180iVZN85..10T;VZN85,95..IV6198808-199308

main45612-35190iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

45612CBOLT(FOR STEERING KNUCKLE STOPPER LH)

main90106-10032iRN8#,90,VZN85,9#198808-199501

45619CCOVER, STEERING KNUCKLE STOPPER, RH

main45619-14020iRN8#,90,VZN85,9#198808-199308

main45619-35030iRN8#,90,VZN90199308-199501

45619DCOVER, STEERING KNUCKLE STOPPER, LH

main45619-14020iRN8#,90,VZN85,9#198808-199308

main45619-35030iRN8#,90,VZN90199308-199501

45700DAMPER ASSY, STEERING

main45700-39035iRN8#,90,VZN85,9#198808-199108

main45700-39046iRN12#,VZN120198904-199511

sub45700-39085

main45700-39055iRN8#,90,VZN85,9#199108-199110

sub45700-39056

main45700-39056iRN8#,90,VZN85,9#199110-199501

45700ANUT(FOR STEERING DAMPER)

main90171-12028iRN12#,8#,90,VZN120,85,9#198808-199511

TIE ROD X DAMPER

main94110-41000iRN12#,VZN120198904-199511

HOUSING X DAMPER

main94182-10800iRN8#,90,VZN85,9#198808-199501

HOUSING X DAMPER

45700DCUSHION, STEERING DAMPER

main90948-01001iRN8#,90,VZN85,9#198808-199501

45700FRETAINER, STEERING DAMPER CUSHION

main90948-02003iRN8#,90,VZN85,9#198808-199501

OD=28

main90948-02006iRN8#,90,VZN85,9#198808-199501

OD=26

9010108057

main90101-08057

9017010021

main90170-10021

9017010082

main90170-10082

9020110012

main90201-10012

9411050800

main94110-50800

9451200800

main94512-00800

9453101000

main94531-01000

9538103020

main95381-03020

9538103022

main95381-03022

38 parts on this diagram · 6 diagrams in section
