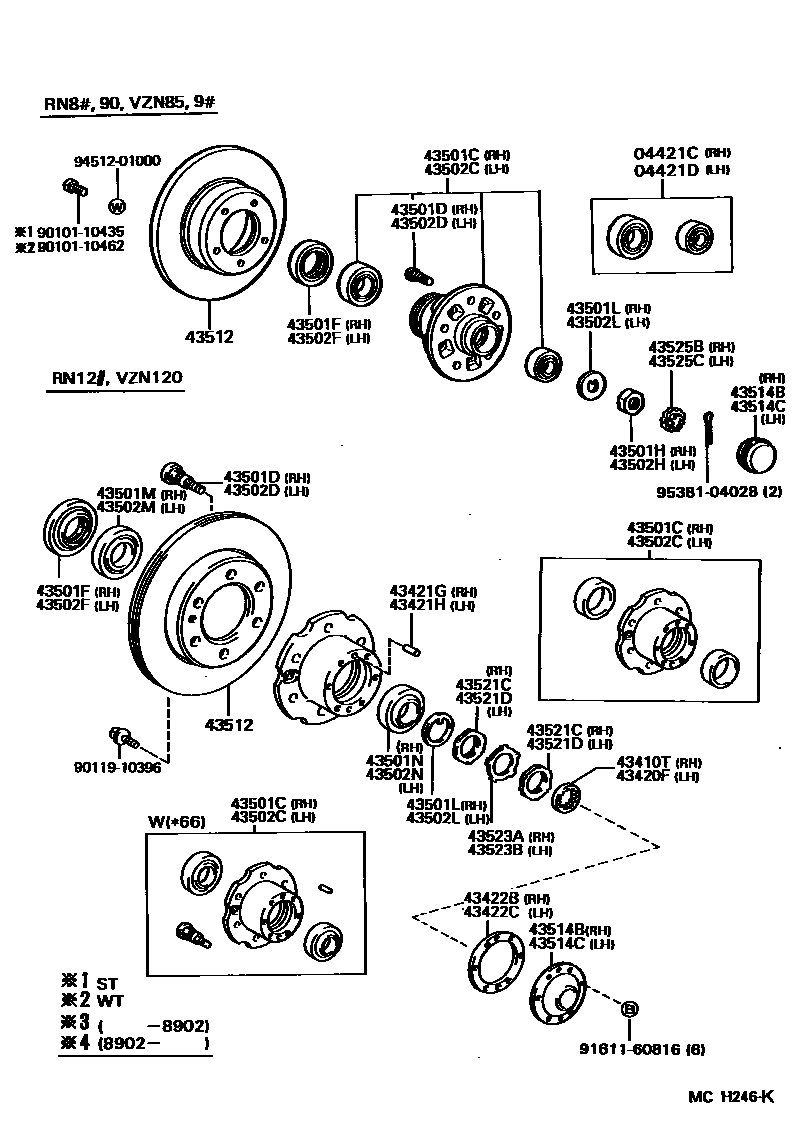

FRONT AXLE HUB

04421CBEARING KIT, FRONT AXLE SHAFT, RH

main04421-35010iRN8#,90,VZN85,9#198808-199108

main04421-35020iRN8#,90,VZN85,9#199108-199501

04421DBEARING KIT, FRONT AXLE SHAFT, LH

main04421-35010iRN8#,90,VZN85,9#198808-199108

main04421-35020iRN8#,90,VZN85,9#199108-199501

43410TSPACER (FOR FRONT DRIVE SHAFT RH)

main90560-27010iRN12#,VZN120198904-199511

T=1.8,T=1.8

main90560-27011iRN12#,VZN120198904-199511

T=2.25,T=2.25

43420FSPACER (FOR FRONT DRIVE SHAFT LH)

main90560-27010iRN12#,VZN120198904-199511

T=1.8,T=1.8

main90560-27011iRN12#,VZN120198904-199511

T=2.25,T=2.25

43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90250-07057×2iRN12#,VZN120198904-199511

43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90250-07057×2iRN12#,VZN120198904-199511

43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH

main43422-60010iVZN120199506-199511

main43422-60020iVZN120199108-199506

43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH

main43422-60010iVZN120199506-199511

main43422-60020iRN12#,VZN120198904-199108

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-39015iRN8#,90,VZN85,90..ST198808-199501

main43502-39035iVZN85,95..WT198808-199108

main43502-39055iVZN85,95..IV6199108-199308

main43503-29015iVZN120199308-199511

W(*66)

main43511-35100iVZN120199108-199308

main43511-35905iRN12#,VZN120198904-199108

main43511-39015iVZN120199308-199511

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×5iRN8#,90,VZN85,90..ST198808-199501

main90942-02049×6iRN12#,VZN120198904-199511

main90942-02068×6iVZN85,95..WT198808-199308

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50005iRN8#,90,VZN85,9#198808-199501

main90311-66001iRN12#,VZN120198904-199509

main90311-66003iVZN120199509-199511

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-19185iRN8#,90,VZN85,9#198808-199501

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-20007iRN8#,90,VZN85,9#198808-199501

main90214-42030iRN12#,VZN120198904-199511

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36064iVZN120199308-199511

TIMKEN

main90368-49084iRN12#,VZN120198904-199308

KOYO

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90080-36067iVZN120199308-199511

TIMKEN

main90368-45087iRN12#,VZN120198904-199308

KOYO

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-39015iRN8#,90,VZN85,90..ST198808-199501

main43502-39035iVZN85,95..WT198808-199108

main43502-39055iVZN85,95..IV6199108-199308

main43503-29015iVZN120199308-199511

W(*66)

main43511-35100iVZN120199108-199308

main43511-35905iRN12#,VZN120198904-199108

main43511-39015iVZN120199308-199511

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×5iRN8#,90,VZN85,90..ST198808-199501

main90942-02049×6iVZN120199308-199511

main90942-02068×6iVZN85,95..WT198808-199308

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50005iRN8#,90,VZN85,9#198808-199501

main90311-66001iRN12#,VZN120198904-199509

main90311-66003iVZN120199509-199511

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-19185iRN8#,90,VZN85,9#198808-199501

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-20007iRN8#,90,VZN85,9#198808-199501

main90214-42030iRN12#,VZN120198904-199511

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36064iVZN120199308-199511

main90368-49084iRN12#,VZN120198904-199308

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90080-36067iVZN120199308-199511

main90368-45087iRN12#,VZN120198904-199308

43512DISC, FRONT

main43512-35081×2iRN80..STD..USA198808-199501

main43512-35140×2iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main43512-35160×2iVZN85,95..WT198808-199308

main43512-35180×2iVZN85..10T;VZN85..ST..IV6198808-199208

main43512-35190×2iRN12#,VZN120198904-199106

main43512-35200×2iRN12#,VZN120199106-199511

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-35010iRN8#,90,VZN85,9#198808-199501

main43514-35020iRN12#,VZN120198904-199511

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-35010iRN8#,90,VZN85,9#198808-199501

main43514-35020iRN12#,VZN120198904-199511

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-60011×2iRN12#,VZN120198904-199511

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-60011×2iRN12#,VZN120198904-199511

43523AWASHER, FRONT WHEEL ADJUSTING LOCK, RH

main90215-42025iRN12#,VZN120198904-199511

43523BWASHER, FRONT WHEEL ADJUSTING LOCK, LH

main90215-42025iRN12#,VZN120198904-199511

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-22010iRN8#,90,VZN85,9#198808-199501

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-22010iRN8#,90,VZN85,9#198808-199501

9010110435

main90101-10435

9010110462

main90101-10462

9011910396

main90119-10396

9161160816

main91611-60816

9451201000

main94512-01000

9538104028

main95381-04028

37 parts on this diagram · 1 diagram in section
