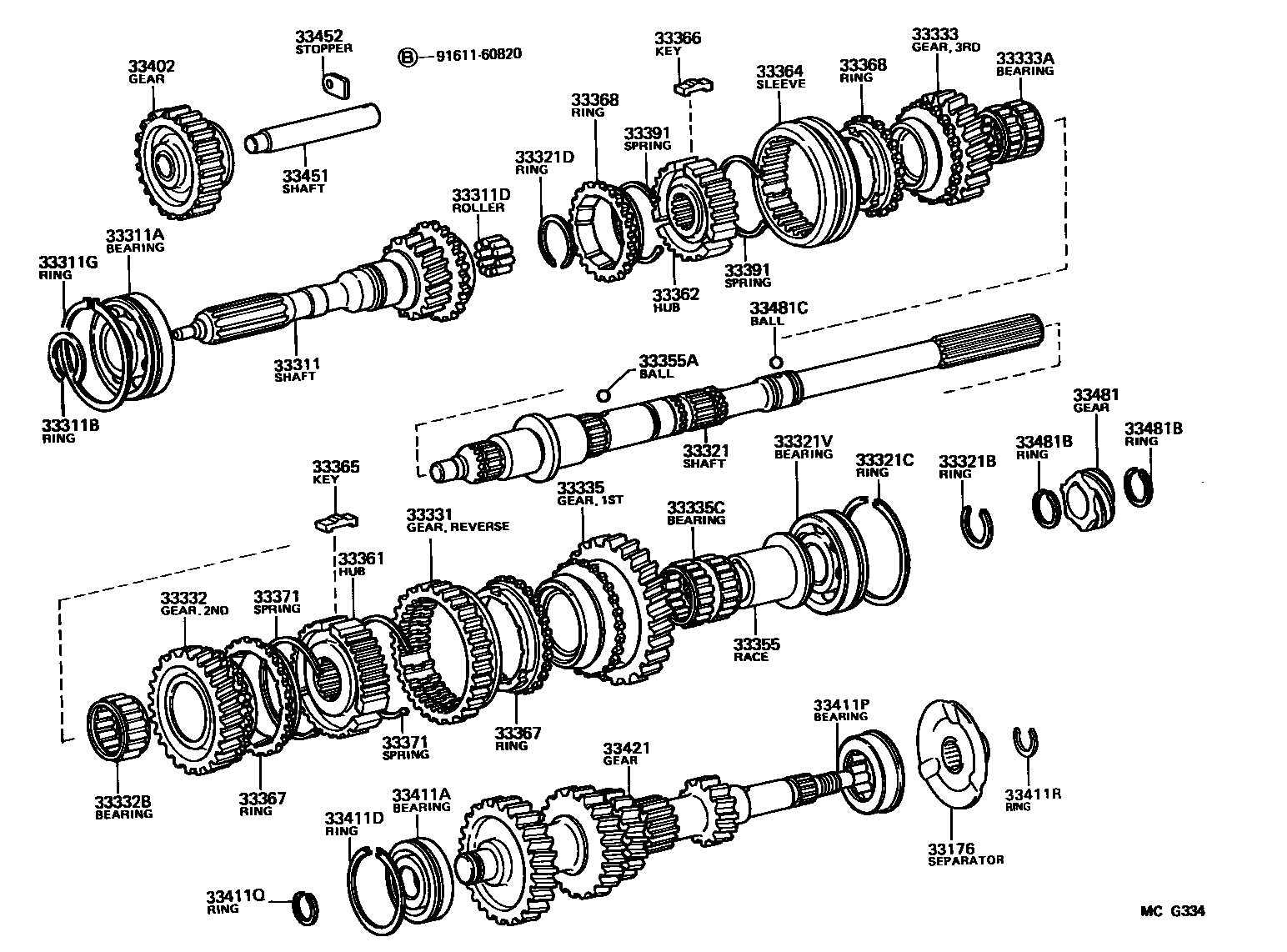

TRANSMISSION GEAR (MTM)
33176SEPARATOR, MANUAL TRANSMISSION OIL, NO.1
33311SHAFT, INPUT
sub33301-35080
sub33301-30H00
sub33301-30H10
sub33301-30H20
sub33301-30H30
sub33301-30H40
sub33301-30H50
sub33301-30H60
sub33301-30H70
sub33301-30H80
sub33301-30H90
sub33301-35071
sub33301-35110
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.30-2.35,MARK 11
T=2.35-2.40,MARK 12
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
sub33321-35210
sub33362-35060
sub90520-26072
sub90520-26073
sub90520-26074
sub90520-26075
sub90520-26076
sub90520-26077
sub90520-26078
sub33321-35190
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14
T=2.74,MARK 15
T=2.67-2.72,MARK A
T=2.73-2.78,MARK B
T=2.79-2.84,MARK C
T=2.85-2.90,MARK D
T=2.91-2.96,MARK E
T=2.97-3.02,MARK F
T=3.03-3.08,MARK G
T=3.09-3.14,MARK H
T=3.15-3.20,MARK J
T=3.21-3.26,MARK K
T=3.27-3.32,MARK L
T=2.43-2.48,MARK 10
T=2.49-2.54,MARK 11
T=2.55-2.60,MARK 12
T=2.61-2.66,MARK 13
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
T=0.95-1.05,NO MARK
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1
T=1.95-2.00,MARK E-1
T=1.75-1.80,MARK C-1
T=2.05-2.10,MARK F-1
T=1.86,MARK 11
T=1.92,MARK 12
T=1.98,MARK 13
T=2.04,MARK 14
T=2.10,MARK 15
T=1.80-1.85,MARK D
T=1.90-1.95,MARK E
T=2.00-2.05,MARK F
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33367RING, SYNCHRONIZER, NO.1
1ST GEAR SIDE
2ND GEAR SIDE
33368RING, SYNCHRONIZER, NO.2
3RD GEAR SIDE
4TH GEAR SIDE
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.00,MARK A
T=2.05,MARK B
T=2.10,MARK C
T=2.15,MARK D
T=2.20,MARK E
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.10-2.15
T=2.20-2.25
T=2.05-2.10
T=2.15-2.20
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=1.90-1.95,MARK 1
T=1.96-2.01,MARK 2
T=2.02-2.07,MARK 3
T=2.08-2.13,MARK 4
T=2.14-2.19,MARK 5
T=2.20-2.25,MARK 6
T=2.26-2.31,MARK 7
33421GEAR, COUNTER
sub33421-35170
sub33301-30H00
sub33301-30H20
sub33421-60150
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub33421-60180
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6
N=6,W(P195/75R14 TIRE)
N-11
N=11,MARK 11X28-30
N=10,MARK 10X31-33
N=10,MARK 10X34-36
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.5
33481CBALL, REVERSE SHIFT RESTRICT
9161160820
main91611-60820
42 parts on this diagram · 7 diagrams in section
