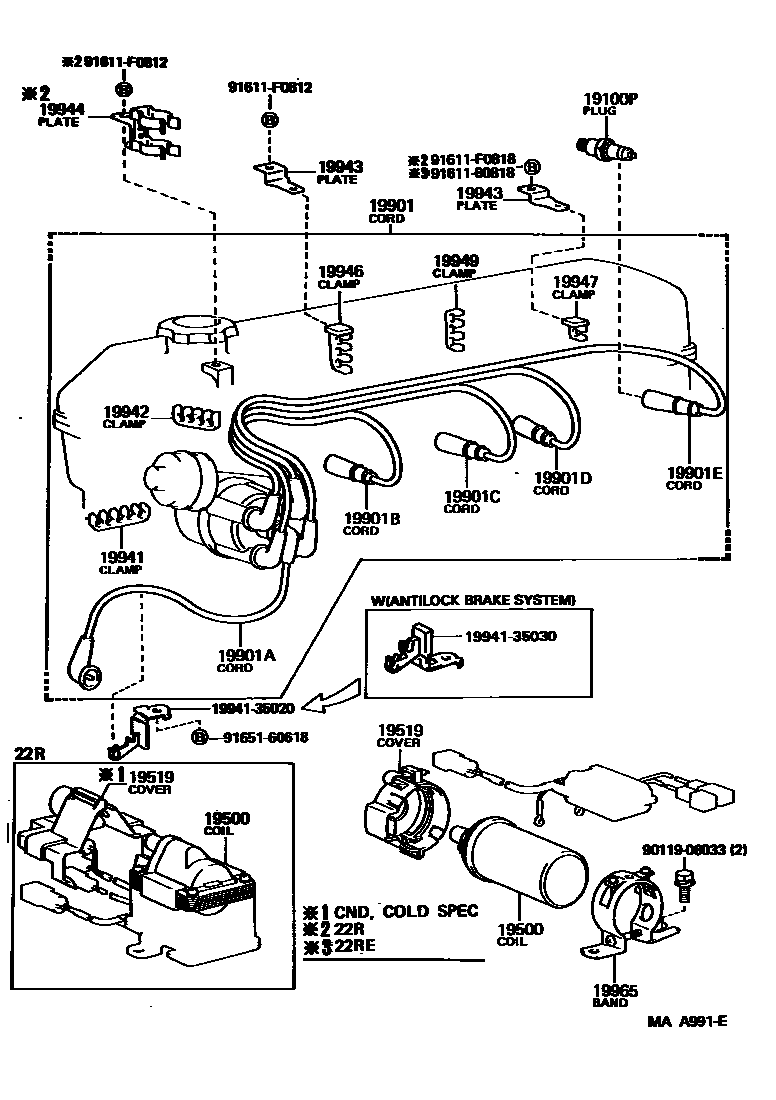

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01064i22R#..RN12#,8#,90198808-199501

W16EXR-U

main90919-01102i22RE..RN8#,90199108-199501

BPR5EY

main90919-01176i3VZE..VZN120,85,9#198808-199511

K16R-U

19500COIL ASSY, IGNITION

main90919-02106i22R..RN8#,90198808-199008

main90919-02185i3VZE..VZN120,85,9#198808-199108

main90919-02190i22RE..RN12#,8#,90198808-199208

sub90919-02113

main90919-02197i3VZE..VZN120,85,9#199108-199511

19519COVER, IGNITION COIL

main19519-28010i22R..RN8#,90..CND198808-199008

COLD SPEC

main19519-28020i22RE..RN121,8#,90..CND198808-199208

COLD SPEC

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21430i3VZE..VZN85,9#198808-198812

sub90919-21453

main90919-21431i22RE..RN12#,8#,90198808-199208

sub90919-29055

main90919-21450i22R..RN8#,90198808-199008

main90919-21453i3VZE..VZN120,85,9#198812-198907

sub90919-21501

main90919-21501i3VZE..VZN120,85,9#198907-199108

main90919-21528i3VZE..VZN120,85,9#199108-199501

main90919-21553i22RE..RN8#,90199208-199501

main90919-21579i3VZE..VZN120199308-199511

19901ACORD, COIL RESISTIVE

main19590-65021i3VZE..VZN120,85,9#198811-199108

main90919-13293i22RE..RN12#,8#,90198808-199101

sub90919-13404

main90919-13329i22R..RN8#,90198808-199008

main90919-13404i22RE..RN12#,8#,90199101-199208

sub90919-13485

main90919-13419i3VZE..VZN120,85,9#199108-199308

SUMITOMO

main90919-13420i3VZE..VZN120,85,9#199108-199308

YAZAKI

main90919-13437i22RE..RN8#,90199208-199501

main90919-13455i3VZE..VZN120199308-199511

SUMITOMO

main90919-13456i3VZE..VZN120199308-199511

YAZAKI

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12457i22R#..RN12#,8#,90198808-199101

sub90919-15243

main90919-12761i3VZE..VZN85,9#198808-198812

sub90919-15026

main90919-15026i3VZE..VZN120,85,9#198812-199108

main90919-15243i22RE..RN12#,8#,90199101-199208

main90919-15276i3VZE..VZN120,85,9#199108-199511

main90919-15368i22RE..RN8#,90199208-199501

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12458i22R#..RN12#,8#,90198808-199101

sub90919-15244

main90919-12762i3VZE..VZN85,9#198808-198812

sub90919-15027

main90919-15027i3VZE..VZN120,85,9#198812-199108

main90919-15244i22RE..RN12#,8#,90199101-199208

main90919-15277i3VZE..VZN120,85,9#199108-199511

main90919-15369i22RE..RN8#,90199208-199501

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12459i22R#..RN12#,8#,90198808-199101

sub90919-15245

main90919-12763i3VZE..VZN85,9#198808-198812

sub90919-15028

main90919-15028i3VZE..VZN120,85,9#198812-199108

main90919-15245i22RE..RN12#,8#,90199101-199208

main90919-15278i3VZE..VZN120,85,9#199108-199511

main90919-15370i22RE..RN8#,90199208-199501

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12460i22R#..RN12#,8#,90198808-199101

sub90919-15246

main90919-12764i3VZE..VZN85,9#198808-198812

sub90919-15029

main90919-15029i3VZE..VZN120,85,9#198812-199108

main90919-15246i22RE..RN12#,8#,90199101-199208

main90919-15279i3VZE..VZN120,85,9#199108-199511

main90919-15371i22RE..RN8#,90199208-199501

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00214i22R#..RN12#,8#,90198808-199208

main90464-00555i22RE..RN8#,90199208-199501

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00061i22R#..RN12#,8#,90198808-199208

main90464-00555i22RE..RN8#,90199208-199501

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-35010i22R..RN8#,90198808-199501

main19943-65020i3VZE..VZN120,85,9#199108-199511

19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2

main19944-35010i22R..RN8#,90198808-199008

main19944-35020i22RE..RN8#,90199208-199501

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00303i22R#..RN12#,8#,90198808-199208

main90464-00693i22RE..RN8#,90199208-199501

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00059i22R#..RN12#,8#,90198808-199208

main90464-00685i22RE..RN8#,90199208-199501

19949CLAMP, RESISTIVE CORD, NO.5

main90464-00144i22R#..RN12#,8#,90198808-199208

main90464-00556i22RE..RN8#,90199208-199501

19965BAND, IGNITION COIL, NO.1

main90919-03111i22RE..RN12#,8#,90199008-199208

main90919-03112i3VZE..VZN120,85,9#198808-199511

1994135020CLAMP, RESISTIVE CORD, NO.1

main19941-35020

1994135030CLAMP, RESISTIVE CORD, NO.1

main19941-35030

9011906033

main90119-06033

9161160818

main91611-60818

91611F0812

main91611-F0812

91611F0818

main91611-F0818

9165160618

main91651-60618

24 parts on this diagram · 4 diagrams in section
