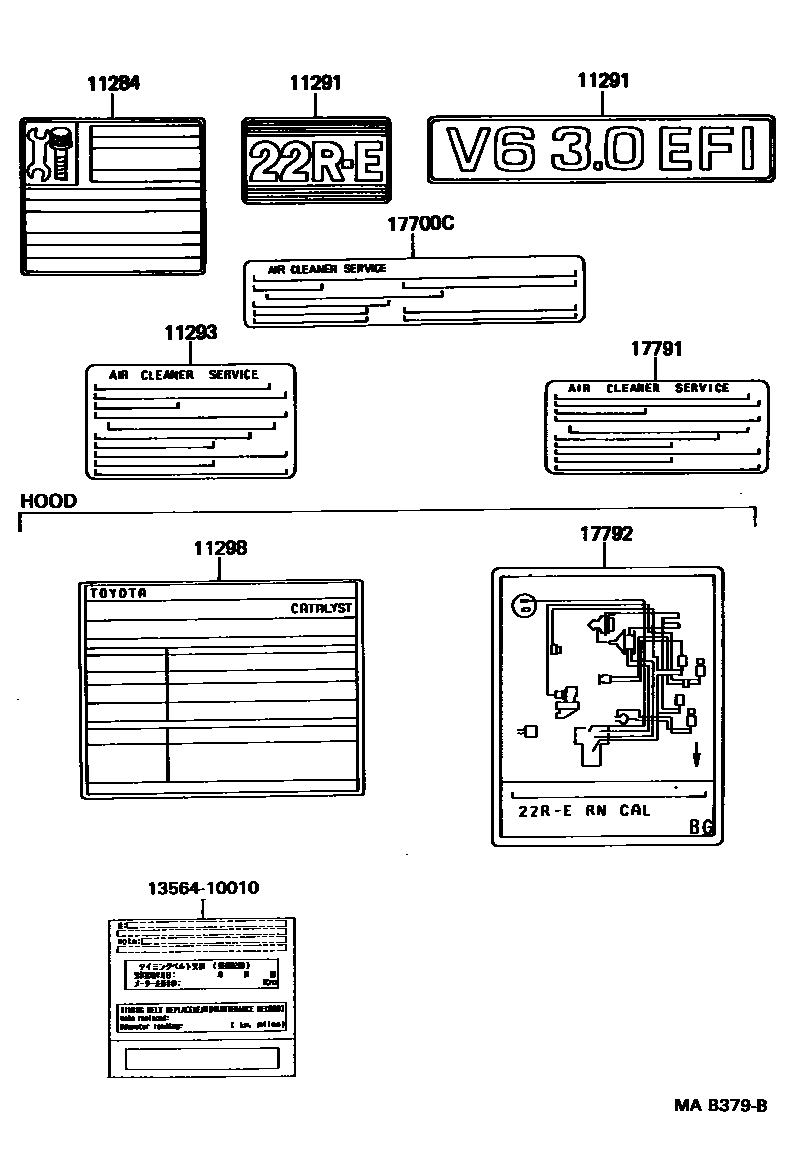

CAUTION PLATE & NAME PLATE (ENGINE)

11284PLATE, ENGINE BOLT INFORMATION

main11284-65010i3VZE..VZN85..ST..HLF198808-199008

main11284-65011i3VZE..VZN120,9#;3VZE..VZN85..WT;3VZE..VZN85..10T199007-199108

main11284-65012i3VZE..VZN120,85,9#199108-199311

11291PLATE, ENGINE NAME

main11291-35030i22R..RN8#,90198808-199008

main11291-35040i22RE..RN12#,8#,90198808-199501

main11291-65010i3VZE..VZN120,85,9#198808-199511

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-74070i3VZE..VZN85,9#198808-198904

11298PLATE, EMISSION CONTROL INFORMATION

main11298-3D180i22R..RN8#,90..G198808-198908

main11298-3D190i22R..RN80..STD..USA198908-199108

main11298-3D190i22R..RN8#,90..G..USA198808-198908

HIGH ALTITUDE SPEC

main11298-3D200i22R..RN80..W198808-198908

main11298-3D230i22RE..RN8#,90..(DLX,SR5)..USA198808-199108

CALIFORNIA SPEC

main11298-3D260i22RE..RN8#,90198808-198908

main11298-3D310i22RE..RN120198905-199008

CALIFORNIA SPEC

main11298-3D320i22RE..RN8#,90..(DLX,SR5)..CBU198904-199008

main11298-3D330i22RE..RN121..W198904-199008

main11298-3D380i22R..RN8#,90..5F198908-199008

main11298-3D390i22R..RN80,90..DLX..USA..CBU198904-199008

HIGH ALTITUDE SPEC

main11298-3D420i22RE..RN80..STD198908-199008

main11298-3D420i22RE..RN8#,90..(DLX,SR5)..USA..CBU198904-199008

EXHAUST EMISSION CONTROL(USA CALIFORNIA)

main11298-3D450i22RE..RN8#,90199008-199108

main11298-3D460i22RE..RN12#199008-199108

main11298-3D470i22RE..RN8#,90..USA199008-199108

EXHAUST EMISSION CONTROL(USA CALIFORNIA)

main11298-3D510i22RE..RN8#,90199108-199208

main11298-3D520i22RE..RN8#,90..USA199108-199208

CALIFORNIA SPEC

main11298-3D580i22RE..RN8#,90199208-199308

main11298-3D590i22RE..RN8#,90..USA199208-199308

CALIFORNIA SPEC

main11298-3D640i22RE..RN8#,90199308-199408

main11298-3D641i22RE..RN8#,90199408-199501

main11298-3D650i22RE..RN8#,90..USA199308-199408

CALIFORNIA SPEC

main11298-3D652i22RE..RN8#,90..USA199408-199501

EXHAUST EMISSION CONTROL(USA CALIFORNIA)

main11298-65050i3VZE..VZN85,90..CBU,IV3198808-198908

main11298-65060i3VZE..VZN85,90..USA..(CBU,IV3)198808-198908

CALIFORNIA SPEC

main11298-65070i3VZE..VZN85..ST..IV6198808-198908

main11298-65100i3VZE..VZN85,95..WT198808-198908

main11298-65110i3VZE..VZN120198904-199008

main11298-65120i3VZE..VZN120198904-199008

CALIFORNIA SPEC

main11298-65130i3VZE..VZN85,90..CBU198908-199008

main11298-65140i3VZE..VZN85,90..USA..CBU198908-199008

CALIFORNIA SPEC

main11298-65150i3VZE..VZN85..ST..IV6198908-199008

main11298-65160i3VZE..VZN85,95..WT198908-199008

main11298-65180i3VZE..VZN85,90..CBU199008-199108

main11298-65190i3VZE..VZN85,90..USA..CBU199008-199108

CALIFORNIA SPEC

main11298-65200i3VZE..VZN120199008-199108

main11298-65210i3VZE..VZN120199008-199108

CALIFORNIA SPEC

main11298-65220i3VZE..VZN85..IV6199008-199108

main11298-65230i3VZE..VZN95199008-199108

main11298-65250i3VZE..VZN85,90..CBU199108-199208

main11298-65260i3VZE..VZN85,90..USA..CBU199108-199208

CALIFORNIA SPEC

main11298-65270i3VZE..VZN120199108-199208

main11298-65280i3VZE..VZN120199108-199208

CALIFORNIA SPEC

main11298-65290i3VZE..VZN85..IV6199108-199208

main11298-65300i3VZE..VZN95199108-199208

main11298-65370i3VZE..VZN90199208-199308

main11298-65380i3VZE..VZN90..USA199208-199308

CALIFORNIA SPEC

main11298-65390i3VZE..VZN120199208-199308

main11298-65400i3VZE..VZN120199208-199308

CALIFORNIA SPEC

main11298-65410i3VZE..VZN85199208-199308

main11298-65420i3VZE..VZN95199208-199308

main11298-65430i3VZE..VZN90199308-199408

main11298-65440i3VZE..VZN90..USA199308-199408

CALIFORNIA SPEC

main11298-65450i3VZE..VZN120199308-199408

main11298-65460i3VZE..VZN120199308-199408

CALIFORNIA SPEC

main11298-65520i3VZE..VZN120199408-199511

main11298-65540i3VZE..VZN120199408-199511

CALIFORNIA SPEC

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main11293-74060i22R..RN8#,90198808-198908

main17791-35080i22R..RN8#,90198908-199008

17791LABEL, MAINTENANCE INFORMATION

main17791-35020i22RE,3VZE..RN12#,8#,90,VZN85,9#198808-198908

main17791-35060i3VZE..VZN120198904-199006

main17791-35070i22RE..RN12#,8#,90198908-199511

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-3D120i22R..RN8#,90..G198808-199108

main17792-3D130i22R..RN80..W198808-198908

main17792-3D170i22RE..RN8#,90..USA198808-199108

CALIFORNIA SPEC

main17792-3D170i22RE..RN80..STD198908-199008

main17792-3D180i22RE..RN120198905-199008

CALIFORNIA SPEC

main17792-3D190i22RE..RN12#,8#,90..DLX,SR5198808-199008

main17792-3D230i22RE..RN121,8#,90..W199008-199208

main17792-3D250i22RE..RN12#,8#,90..ATM199008-199208

main17792-3D260i22RE..RN8#,90..W..USA199008-199208

EXHAUST EMISSION CONTROL(USA CALIFORNIA)

main17792-3D270i22RE..RN8#,90..4HC..USA199008-199208

EXHAUST EMISSION CONTROL(USA CALIFORNIA)

main17792-3D280i22RE..RN8#,90..W199208-199501

main17792-3D290i22RE..RN8#,90..4HC199208-199501

main17792-3D300i22RE..RN8#,90..W..USA199208-199501

CALIFORNIA SPEC

main17792-3D310i22RE..RN8#,90..4HC..USA199208-199501

CALIFORNIA SPEC

main17792-65010i3VZE..VZN120,85,9#198808-199005

main17792-65030i3VZE..VZN120,85,90..USA..(CBU,IV3)198808-198908

CALIFORNIA SPEC

main17792-65040i3VZE..VZN120,85,90..USA..CBU198908-199005

CALIFORNIA SPEC

main17792-65040i3VZE..VZN120,9#;3VZE..VZN85..WT;3VZE..VZN85..USA..CBU199005-199108

main17792-65060i3VZE..VZN120,85,9#199108-199208

main17792-65090i3VZE..VZN120,85,9#199208-199511

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

8 parts on this diagram · 1 diagram in section
