EXHAUST PIPE

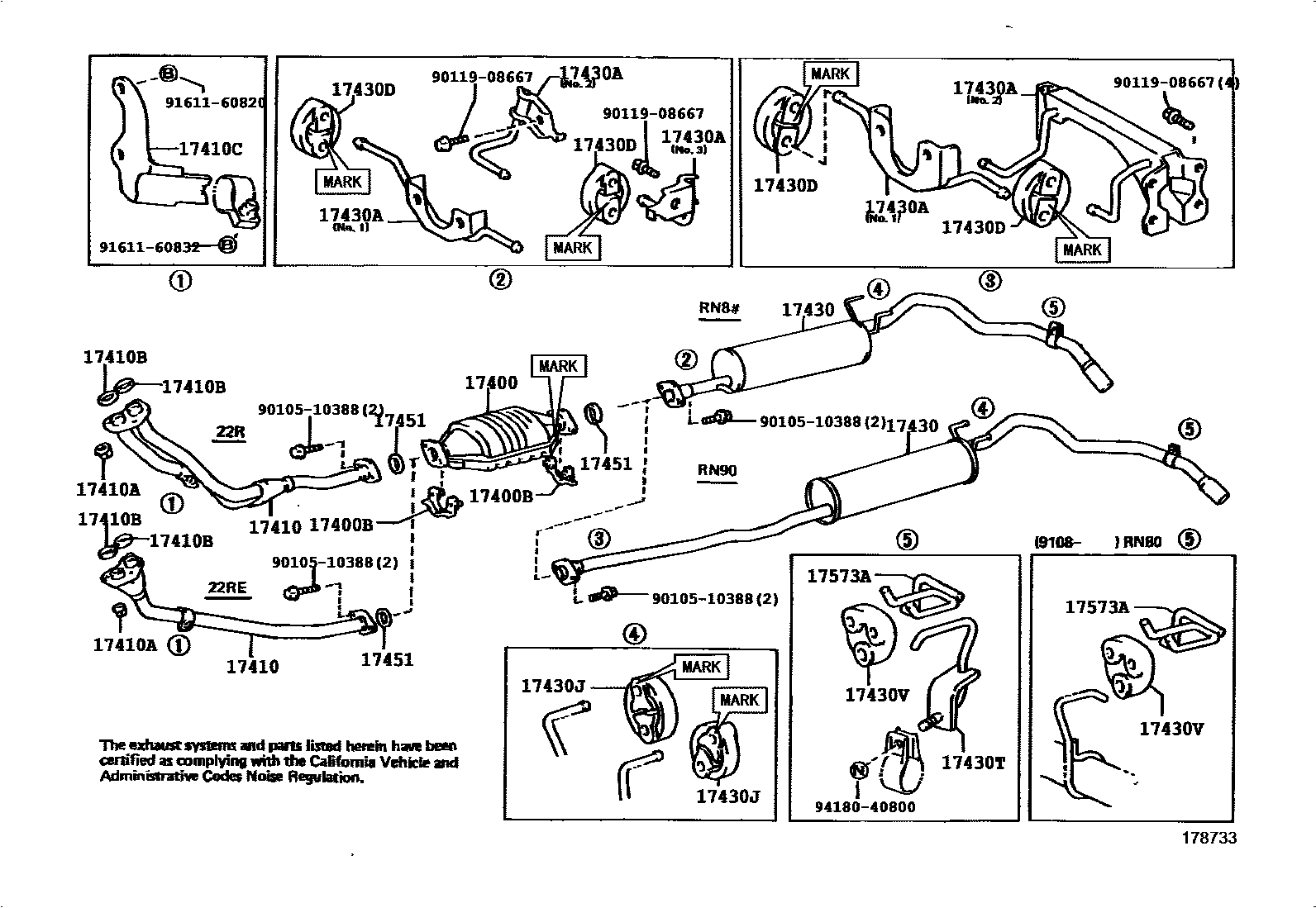

Parts diagram
17400CONVERTER ASSY, W/CATALYST
main18450-08010i199108-199208
MARK E99
main18450-08020i199108-199208
CALIFORNIA SPEC,MARK E98
main18450-08030i199208-199501
CALIFORNIA SPEC,MARK E97
main18450-08040i199208-199501
MARK E96
main18450-35090i198808-199008
main18450-35100i198808-198908
main18450-35130i198808-199208
MARK E5Y
main18450-35140i199208-199501
CALIFORNIA SPEC,MARK E11
main18450-35150i199208-199501
MARK E12
main18450-43051i198808-199208
CALIFORNIA SPEC,MARK E59
main18450-65020i198808-199008
main18450-65030i198908-199008
CALIFORNIA SPEC
main18450-65040i199008-199308
main18450-65080i199308-199511
CALIFORNIA SPEC
17400BRETAINER, EXHAUST PIPE
main18495-35010i198808-199008
FR
main18495-35060i199401-199502
FR
main18495-35061i199502-199511
main18495-38020i198808-199108
FR; RR
17410PIPE ASSY, EXHAUST, FRONT
main17410-35080i198808-198901
main17410-35081i198901-199412
main17410-35082i199412-199501
main17410-35310i198904-199108
main17410-35320i198904-199108
main17410-35430i198808-198903
main17410-35431i198903-199008
main17410-35440i198808-198903
main17410-35441i198903-198908
main17410-35520i199208-199501
CALIFORNIA SPEC
main17410-65030i198808-198903
main17410-65031i198903-199501
main17410-65040i198808-198903
main17410-65041i198903-199308
main17410-65061i198904-199511
main17410-65090i199308-199511
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
main90179-10070×3i198808-199511
17410BGASKET, EXHAUST PIPE
main90917-06038×2i198808-199501
main90917-06041i198904-199505
main90917-06042i198808-199501
main90917-06066i199505-199511
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
main17571-08010i199301-199501
COLOR : CROMATE
main17571-35040i198904-199108
main17571-35100i198808-199501
COLOR : YELLOW
main17571-38090i198808-199008
main17571-65020i198808-199501
main17571-65030i198904-199511
17430PIPE ASSY, EXHAUST, TAIL
main17430-35720i198808-198901
main17430-35721i198901-198911
main17430-35722i198911-199108
main17430-35730i198808-198901
COLD SPEC
main17430-35731i198901-198911
COLD SPEC
main17430-35732i198911-199108
COLD SPEC
main17430-35740i198808-198901
main17430-35741i198901-198911
main17430-35742i198911-199410
main17430-35750i198808-198901
COLD SPEC
main17430-35751i198901-198911
COLD SPEC
main17430-35752i198911-199410
main17430-35760i198808-198901
main17430-35761i198901-198911
main17430-35762i198911-199501
main17430-35770i198808-198810
CALIFORNIA SPEC
main17430-35771i198908-199004
main17430-35772i199004-199108
CALIFORNIA SPEC
main17430-35780i198808-198901
CALIFORNIA SPEC
main17430-35781i198901-198911
CALIFORNIA SPEC
main17430-35782i198911-199208
CALIFORNIA SPEC
main17430-35790i198808-198901
CALIFORNIA SPEC
main17430-35791i198901-199006
CALIFORNIA SPEC
main17430-35792i199006-199208
CALIFORNIA SPEC
main17430-3D050i198904-199001
main17430-3D051i199001-199108
main17430-3D060i198904-199001
main17430-3D061i199001-199108
main17430-3D300i199108-199501
main17430-3D310i199108-199501
COLD SPEC
main17430-3D320i199108-199208
CALIFORNIA SPEC
main17430-3D330i199108-199111
main17430-3D331i199111-199211
main17430-3D332i199211-199501
main17430-3D333i199501-199511
main17430-3D370i199208-199501
CALIFORNIA SPEC
main17430-3D380i199208-199410
CALIFORNIA SPEC
main17430-3D390i199208-199501
CALIFORNIA SPEC
main17430-65040i198808-198810
main17430-65041i198810-198911
main17430-65042i198911-199208
main17430-65050i198808-198901
main17430-65051i198901-199006
main17430-65052i199006-199501
main17430-65060i198808-198901
main17430-65061i198901-198911
main17430-65062i198911-199308
main17430-65070i198808-198901
main17430-65071i198901-198911
main17430-65072i198911-199008
main17430-65120i199008-199308
main17430-65210i199308-199408
CALIFORNIA SPEC
main17430-65220i199308-199501
CALIFORNIA SPEC
main17430-65221i199501-199511
CALIFORNIA SPEC
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
main17503-35060i198808-199501
NO.1
main17503-35100i199008-199501
NO.1
main17503-35150i199208-199501
CALIFORNIA SPEC,N0.1
main17503-35160i199208-199501
CALIFORNIA SPEC,N0.1
main17503-65020i198808-199308
NO.1
main17503-65030i199008-199308
NO.1
main17504-35060i198808-199208
NO.2
main17504-35061i199208-199501
NO.2
main17564-35140i198904-199502
main17564-35141i199502-199511
main17564-35150i198904-199108
main17564-65010i199308-199502
CALIFORNIA SPEC
main17564-65011i199502-199511
CALIFORNIA SPEC
main17587-35010i198808-199410
NO.2
main17587-35020i198808-199501
NO.2
main17587-71020i198808-199308
NO.2
main17588-35010i198808-199501
NO.3
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
main17563-08010×4i199208-199308
MARK=BROWN
main17563-35020×4i198808-199308
MARK=LIGHT BLUE
17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)
main17565-08010×2i199208-199501
W/O MARK
main17565-35010×2i198808-199208
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
main17585-35030i199108-199501
main17585-35040i198904-199511
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
main17566-35010i198808-199501
main17566-35030i198904-199511
17451GASKET, EXHAUST PIPE
main90917-06041i198904-199511
FR
main90917-06042i199108-199208
FR
main90917-06045i198808-198809
FR; RR
main90917-06047i198809-199008
FR
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
main17575-35040i198808-199501
9010510388
main90105-10388
9011908667
main90119-08667
9161160820
main91611-60820
9161160832
main91611-60832
9418040800
main94180-40800

19 parts on this diagram · 4 diagrams in section
