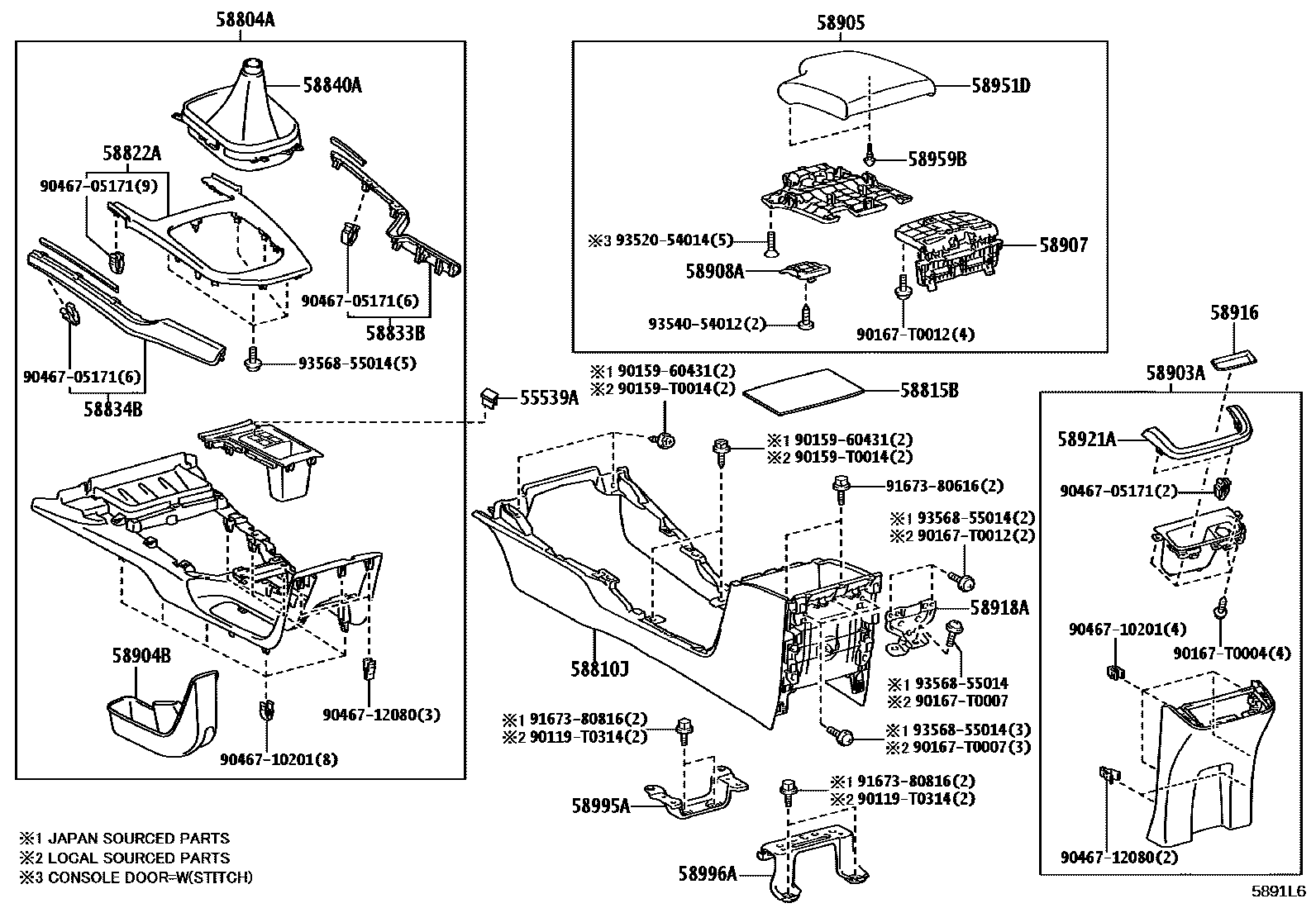

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-KK030-C0iGUN156,TGN156202408

BLACK

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK540-C0iTGN156..L202408

BLACK/GRAY,TRIM2#,4#

main58804-KK660-C2iGUN156,TGN156..6FC202408

BLACK/GRAY,TRIM2#,4#

58810JBOX ASSY, CONSOLE

main58810-KK130-C0iTGN156..L202408

BLACK,TRIM2#,4#

main58810-KK230-C0iGUN156,TGN156..6FC202408

BLACK,TRIM2#,4#

58815BCARPET, CONSOLE BOX

main58815-KK010iGUN156,TGN156202408

58822APANEL, CONSOLE, UPPER REAR

main58822-KK060iTGN156..L202408

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-KK070iTGN156..L202408

main58833-KK150-B1iGUN156,TGN156..6FC202408

SILVER,TRIM2#,4#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-KK070iTGN156..L202408

main58834-KK100-B1iGUN156,TGN156..6FC202408

SILVER,TRIM2#,4#

58840ACOVER ASSY, SHIFTING HOLE

main58840-KK070-C2iTGN156..L202408

BLACK,TRIM2#,4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK040-C2iGUN156,TGN156..6FC202408

SILVER,TRIM2#,4#

main58903-KK050-C0iTGN156..L202408

BLACK,TRIM2#,4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK070-C3iGUN156,TGN156202408

BLACK,TRIM2#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK020-C4iTGN156..L202408

BLACK/BLACK,TRIM2#,4#

main58905-KK120-C3iGUN156,TGN156..6FC202408

BLACK/CHAMOIS/IVORY,TRIM4#

main58905-KK120-C7iGUN156,TGN156..6FC202408

BLACK/GRAY,TRIM2#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0iGUN156,TGN156202408

BLACK,TRIM2#,4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010iGUN156,TGN156202408

58916MAT, BOX BOTTOM

main58916-KK010iGUN156,TGN156202408

58918ABRACKET, BOX SUPPORT

main58918-KK010iGUN156,TGN156202408

58921APANEL, REAR CONSOLE, UPPER

main58921-KK020-B0iGUN156,TGN156..6FC202408

SILVER,TRIM2#,4#

main58921-KK030iTGN156..L202408

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK070-C1iTGN156..L202408

BLACK,TRIM2#,4#

main58951-KK130-C3iGUN156,TGN156..6FC202408

BLACK/GRAY,TRIM2#

main58951-KK130-E1iGUN156,TGN156..6FC202408

CHAMOIS/IVORY,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-T0008iGUN156,TGN156202408

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-KK020iTGN156..L202408

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGUN156,TGN156202408

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0004

main90167-T0004

90167T0007

main90167-T0007

90167T0012

main90167-T0012

9046705171

main90467-05171

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9352054014

main93520-54014

9354054012

main93540-54012

9356855014

main93568-55014

34 parts on this diagram · 2 diagrams in section
