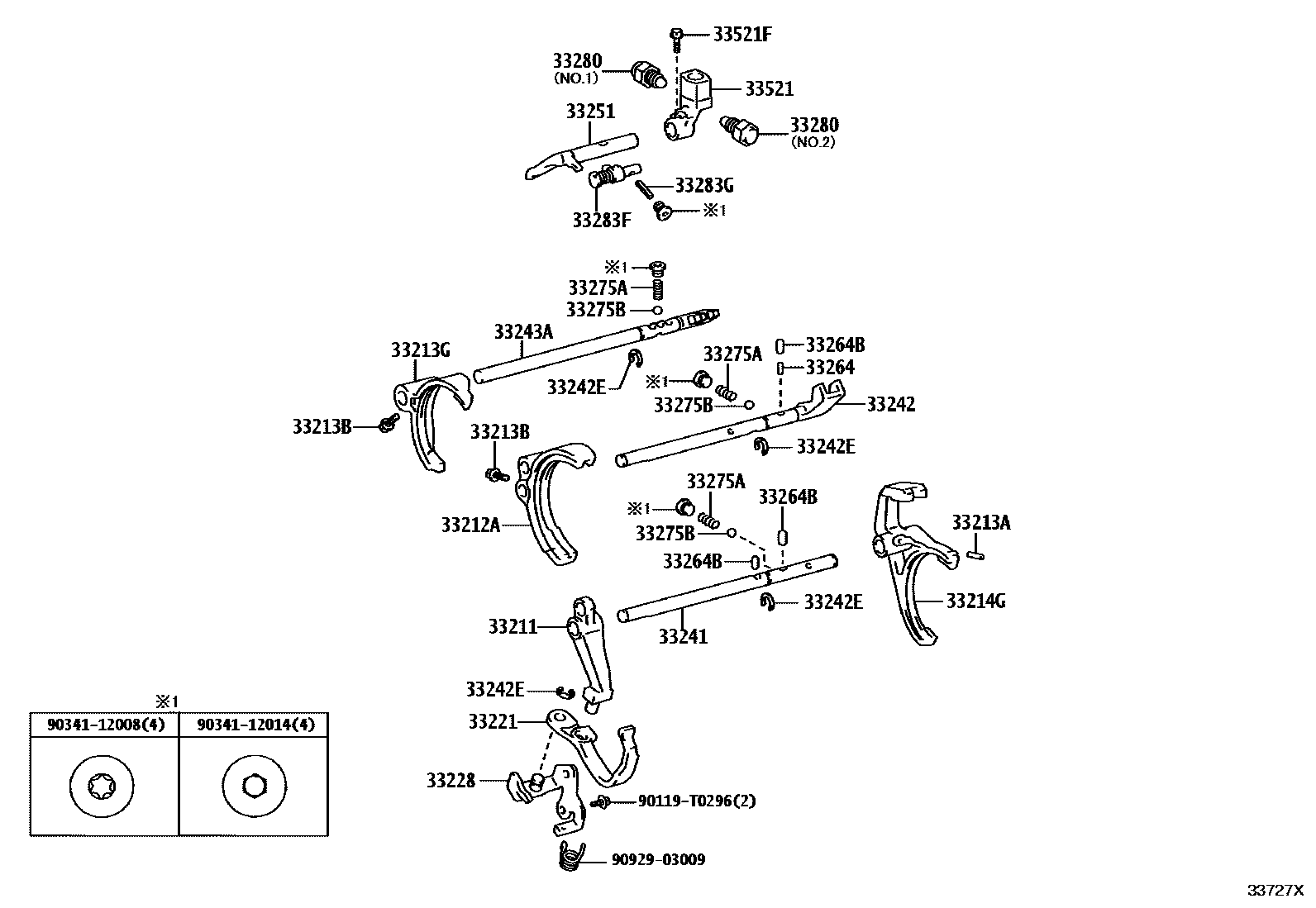

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33228BRACKET, REVERSE SHIFT ARM
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.7,OD=6
L=13.6,OD=9.5
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=35.09,(J)
L=35.09,(L)
33280PIN ASSY, REVERSE RESTRICT
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
(J)
(L)
90119T0296
main90119-T0296
9034112008
main90341-12008
9034112014
main90341-12014
9092903009
main90929-03009
26 parts on this diagram · 1 diagram in section
